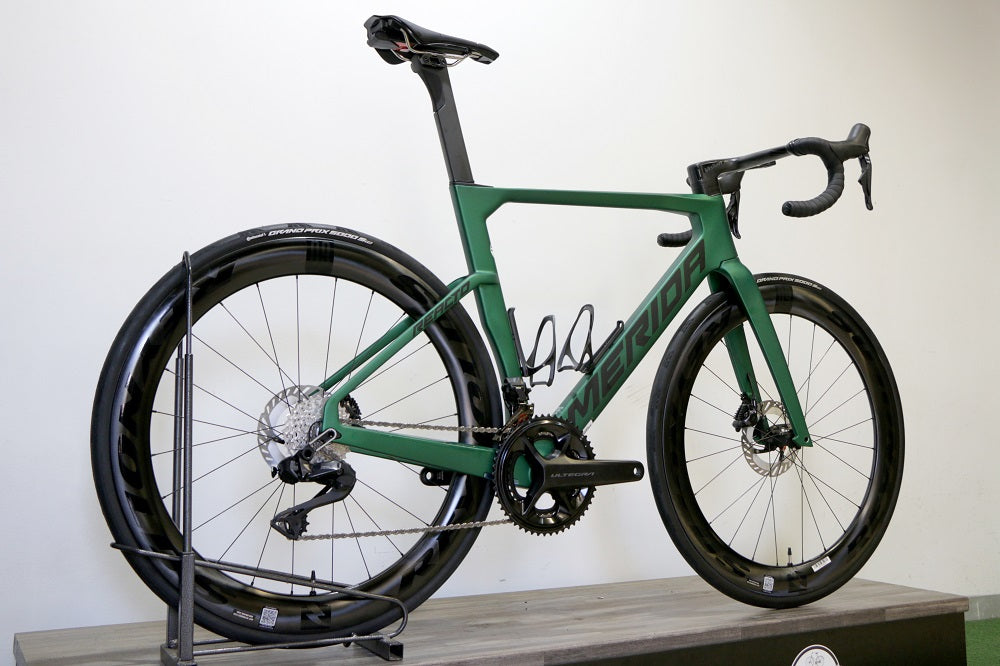

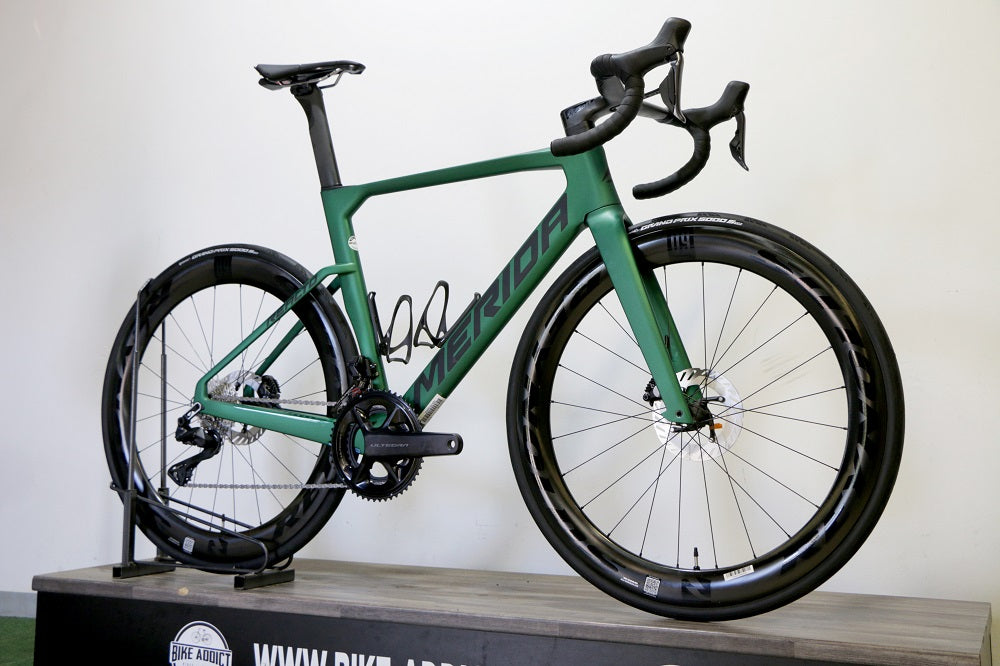

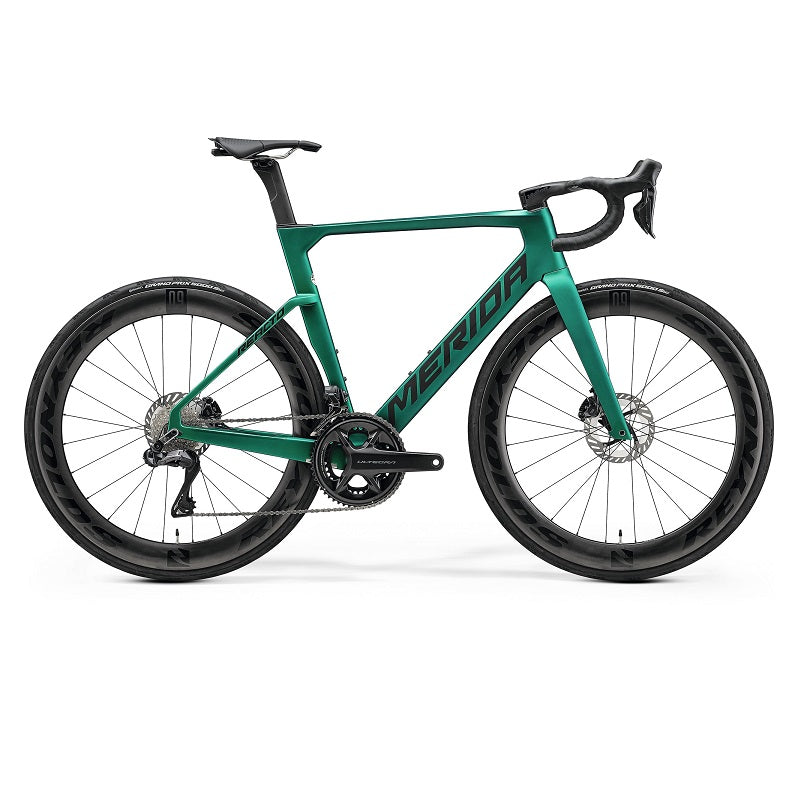

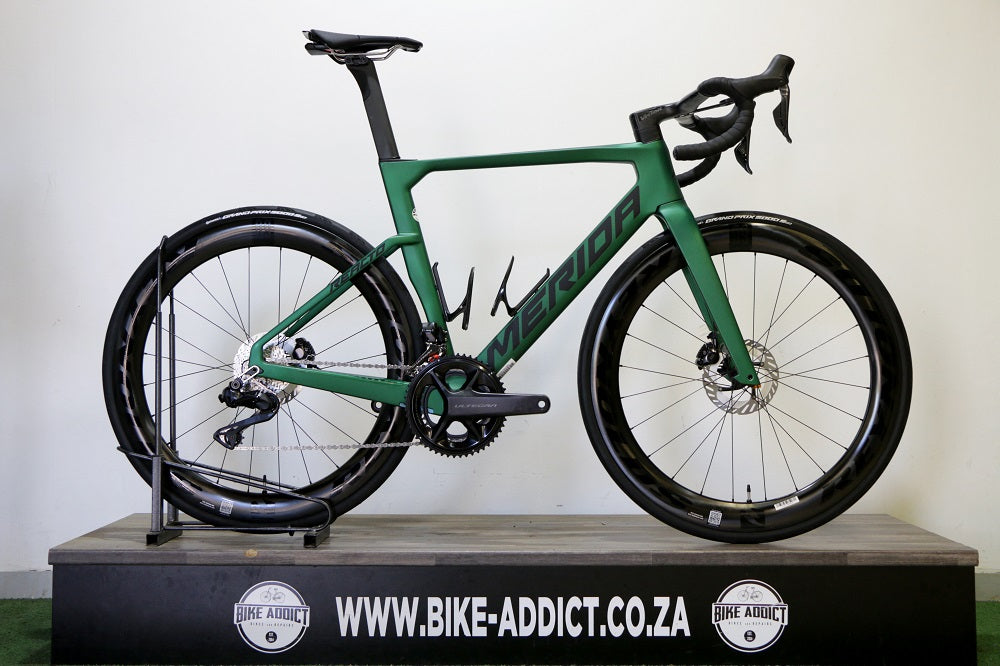

MERIDA Reacto 8000 Disc (2025)

FRAME
REACTO CF3 IV

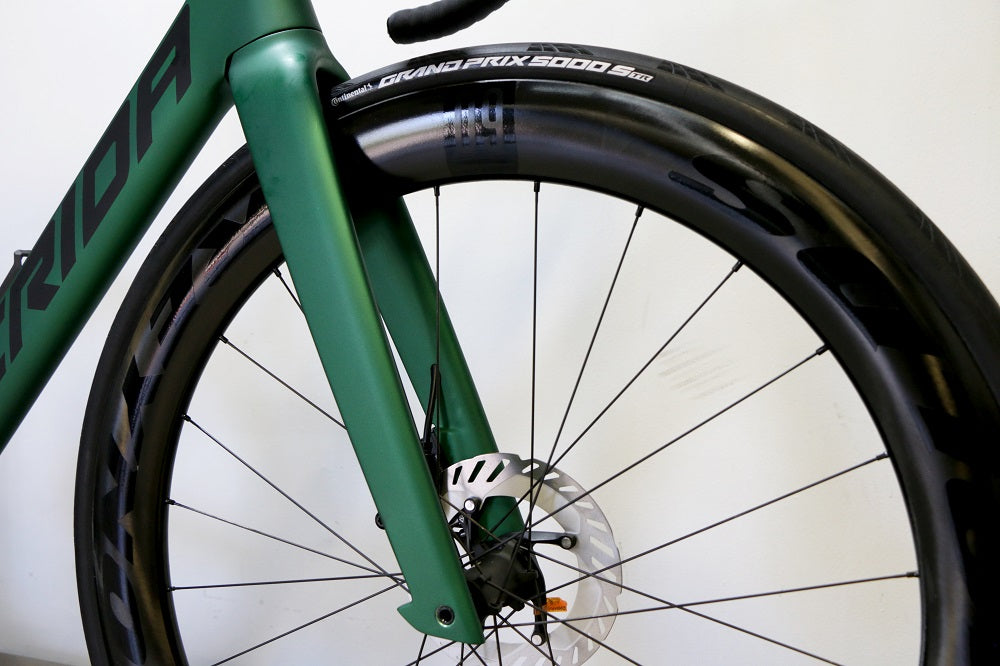

FORK
REACTO CF3 IV DISC
material: carbon
700x30C max. wheelsize

BRAKES
Shimano Ultegra
Hydraulic disc

ROTORS
Shimano CL800
160mm

BRAKE LEVER
Shimano Ultegra

HEADSET
FSA ACR

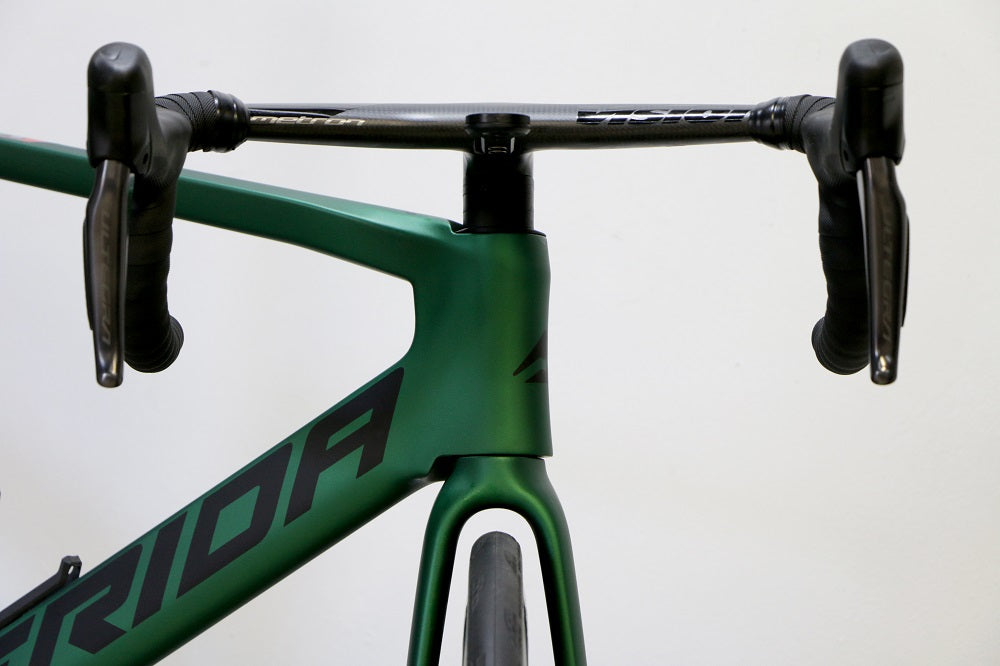

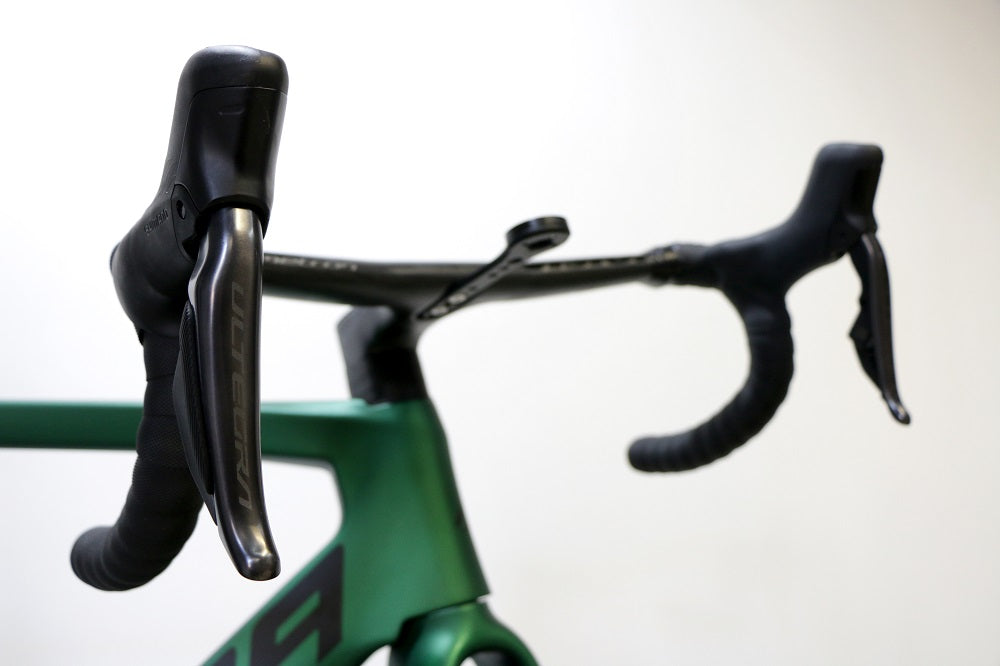

HANDLEBAR
Vision Metron 5D ACR EVO
material: carbon
380mm (XXS-XS-S)
400mm (M-L-XL)

HANDLEBAR STEM
Vision Metron 5D ACR EVO
material: carbon
90 mm-XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Shimano Ultegra Di2

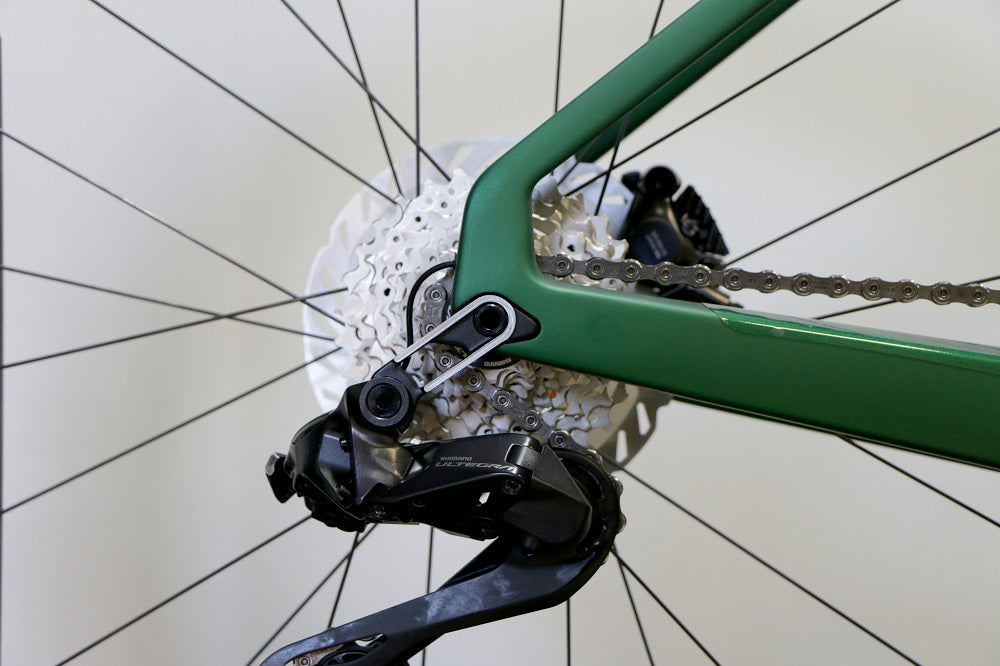

DERAILLEUR (R)
Shimano Ultegra Di2

SHIFTERS
Shimano Ultegra disc Di2

SEAT POST
MERIDA TEAM CW
Aero shape
15mm setback
Carbon

SEAT CLAMP
MERIDA REACTO Aero

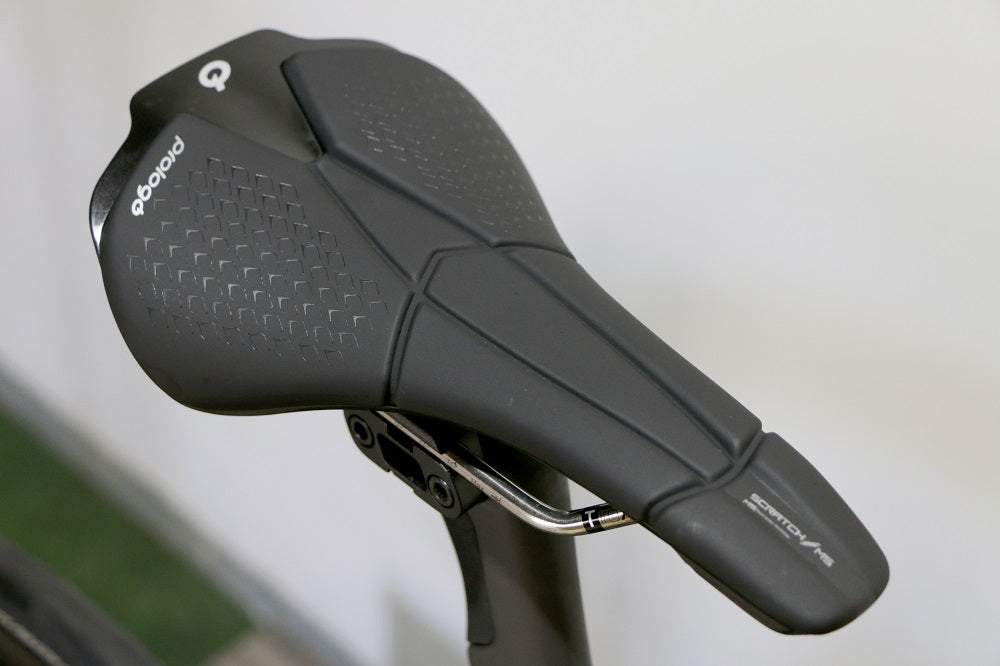

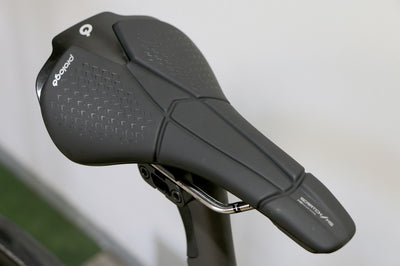

SADDLE
Prologo Scratch M5

CHAIN
Shimano M6100-12

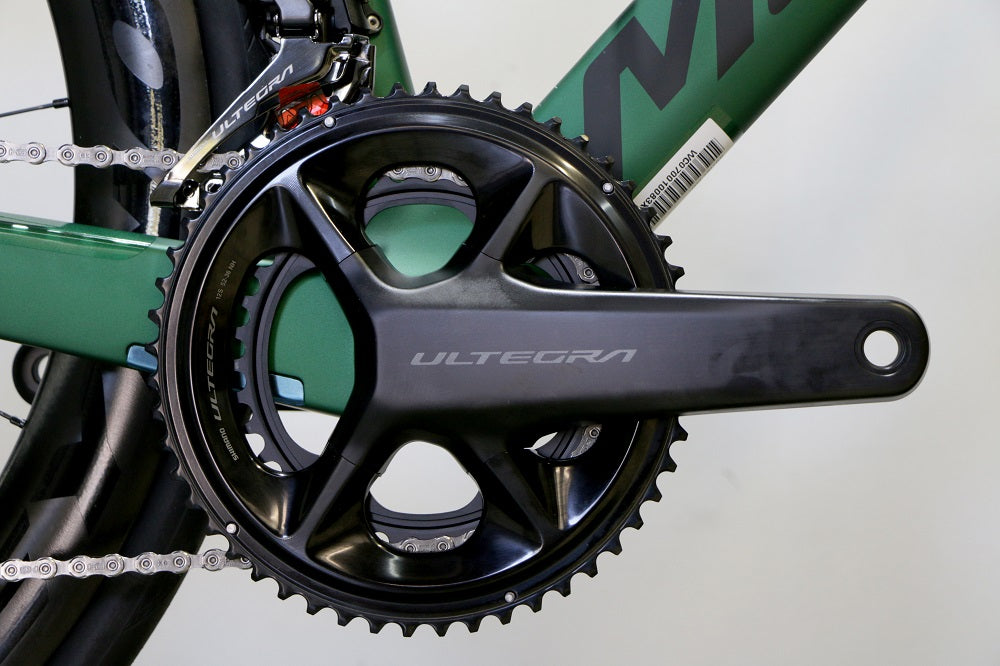

CRANK
Shimano Ultegra
52-36 teeth
165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

FREEWHEEL
Shimano Ultegra R8100
11-30 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB72-41B

WHEELSET
Reynolds AR 60 DB, 100x12mm width front hub
142x12mm width rear hub
21mm inner width
60mm height
Centerlock

TYRE FRONT
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

TYRE REAR
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

AXLES
MERIDA EXPERT SL

APPROX. WEIGHT
8 kg
