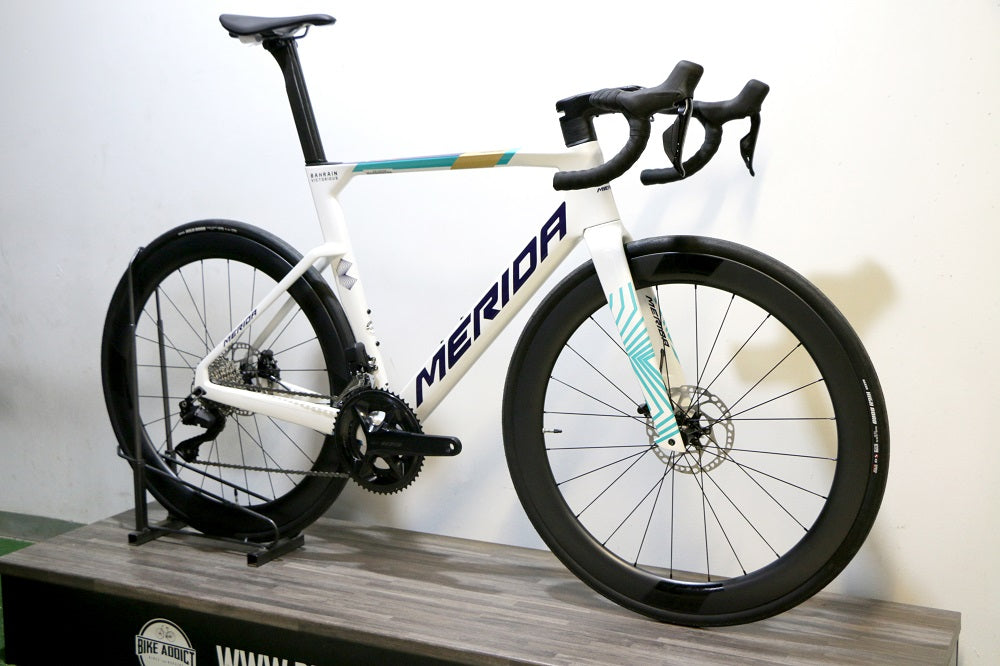

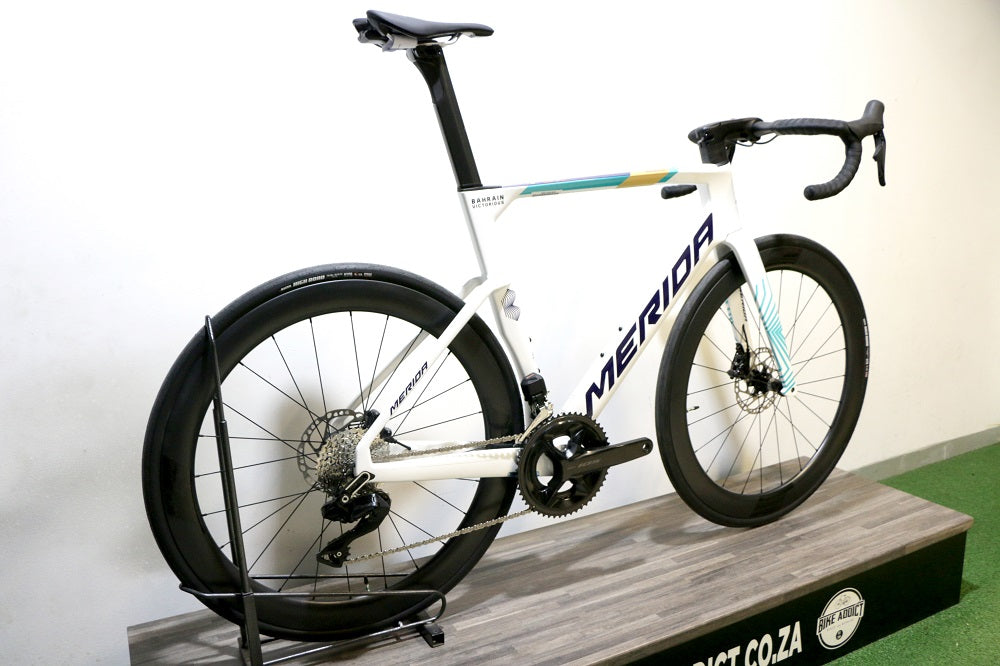

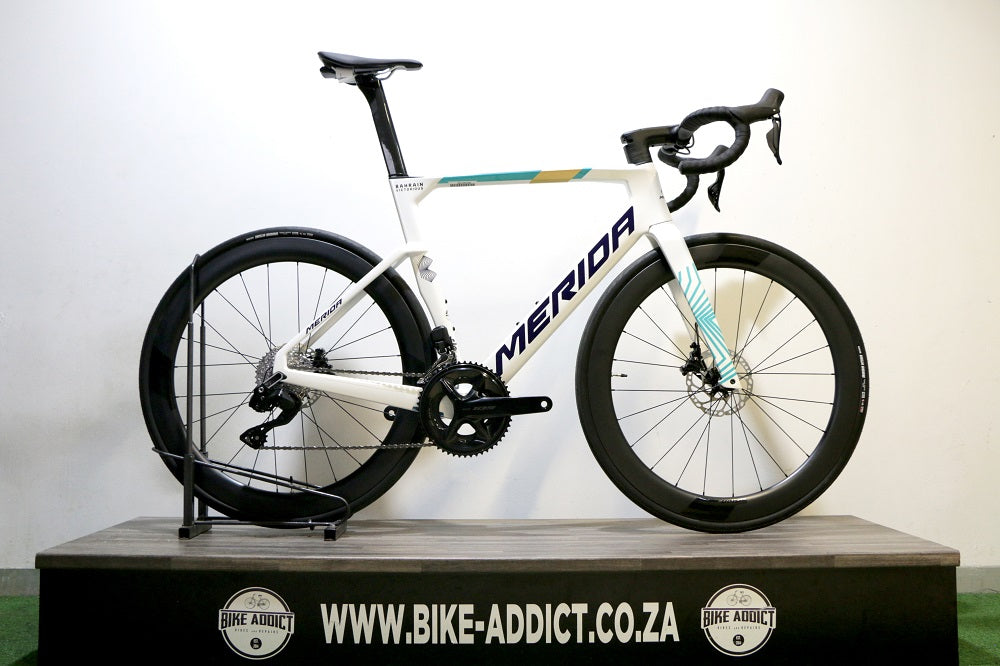

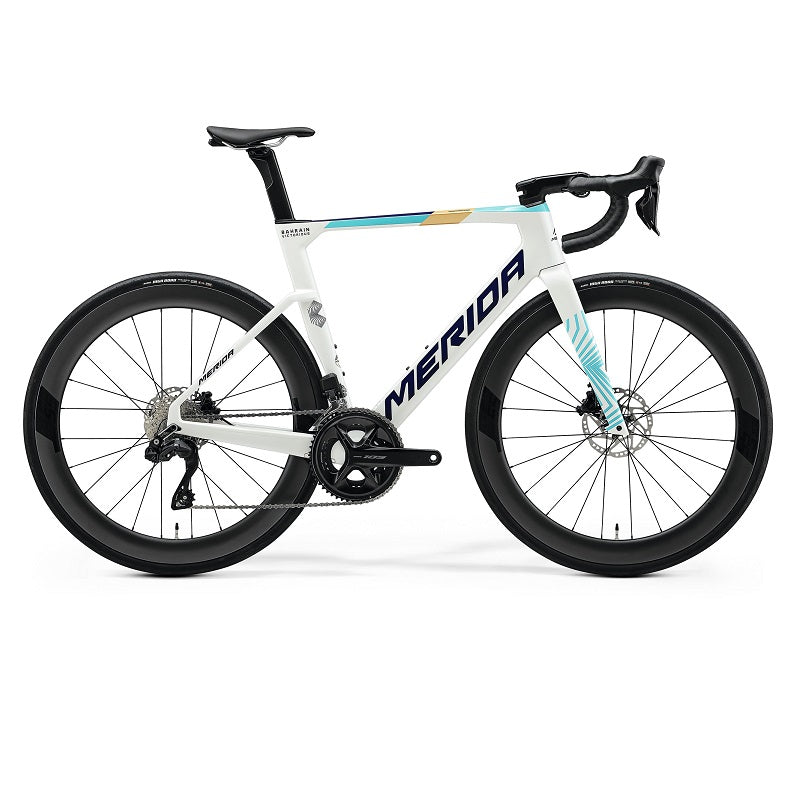

MERIDA Reacto 6000 Disc (2025)

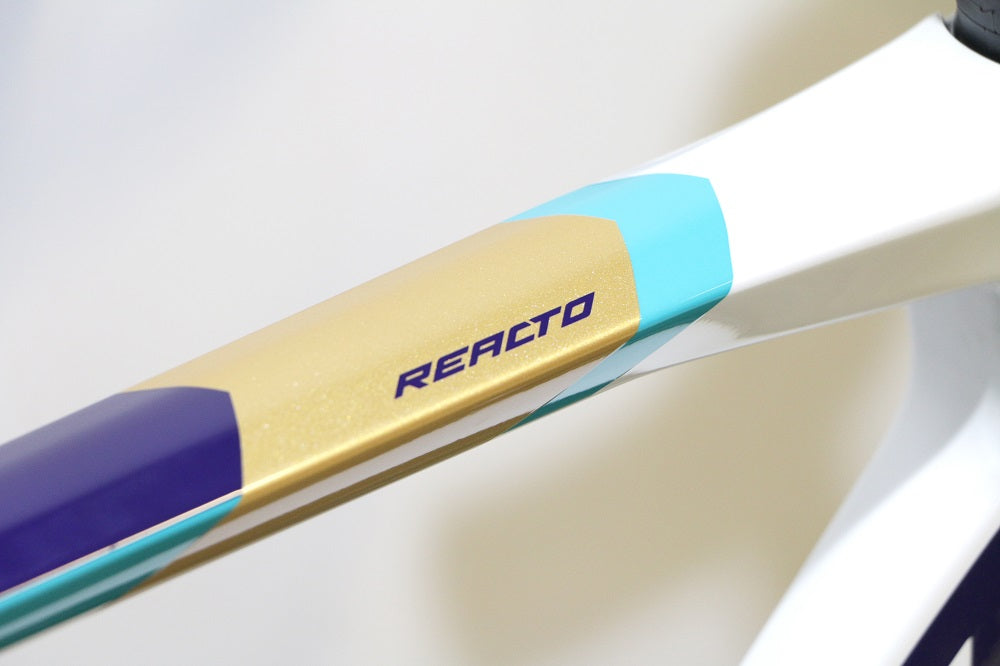

FRAME
REACTO CF3 IV
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
BB86,5 bottom bracket standard

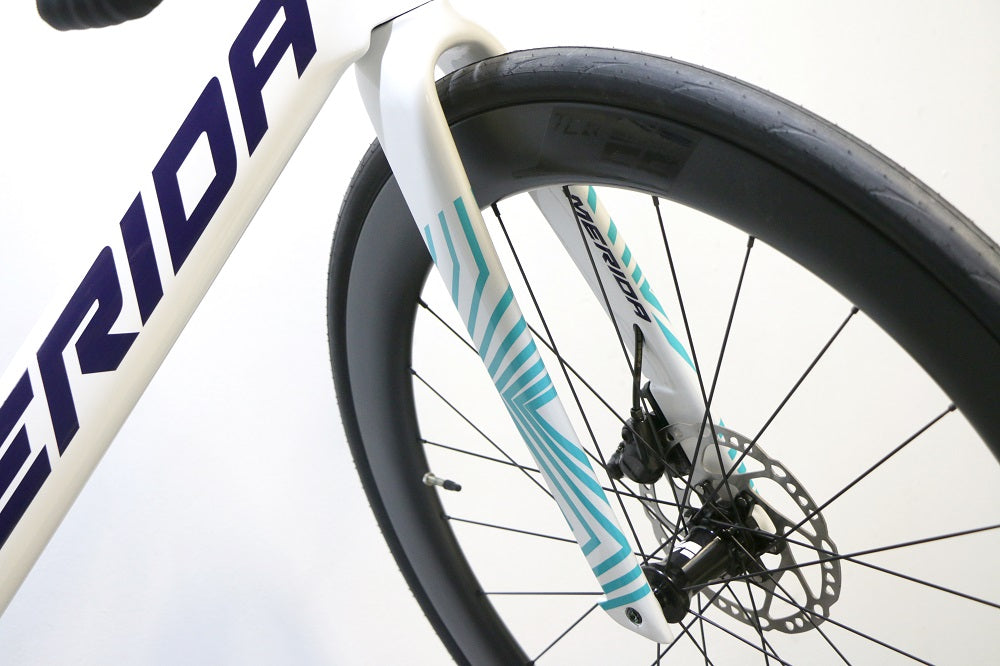

FORK
REACTO CF3 IV DISC
material: carbon
700x30C max. wheelsize

BRAKES
Shimano 105
Hydraulic disc

ROTORS
Shimano RT64
160mm

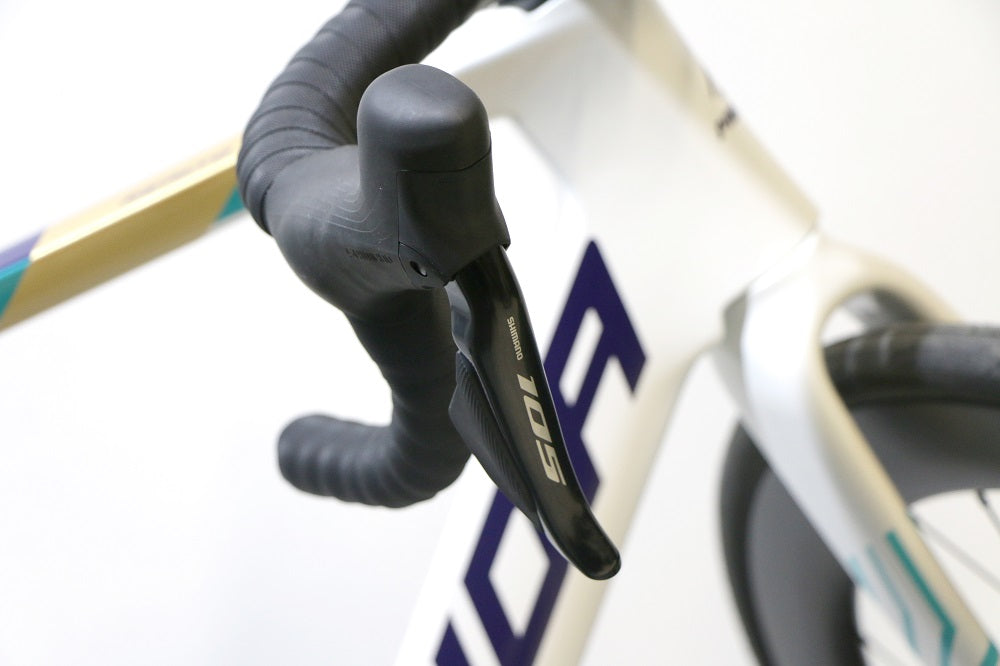

BRAKE LEVER
Shimano 105

HEADSET
MERIDA TEAM SL

HANDLEBAR
MERIDA EXPERT CW
material: aluminium
380mm (XXS-XS)
400mm (M-L-XL)

HANDLEBAR STEM
MERIDA EXPERT SL 2PII
material: aluminium
-9° stem angle
90 mm-XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL
incl. MERIDA SMART MOUNT

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Shimano 105 Di2

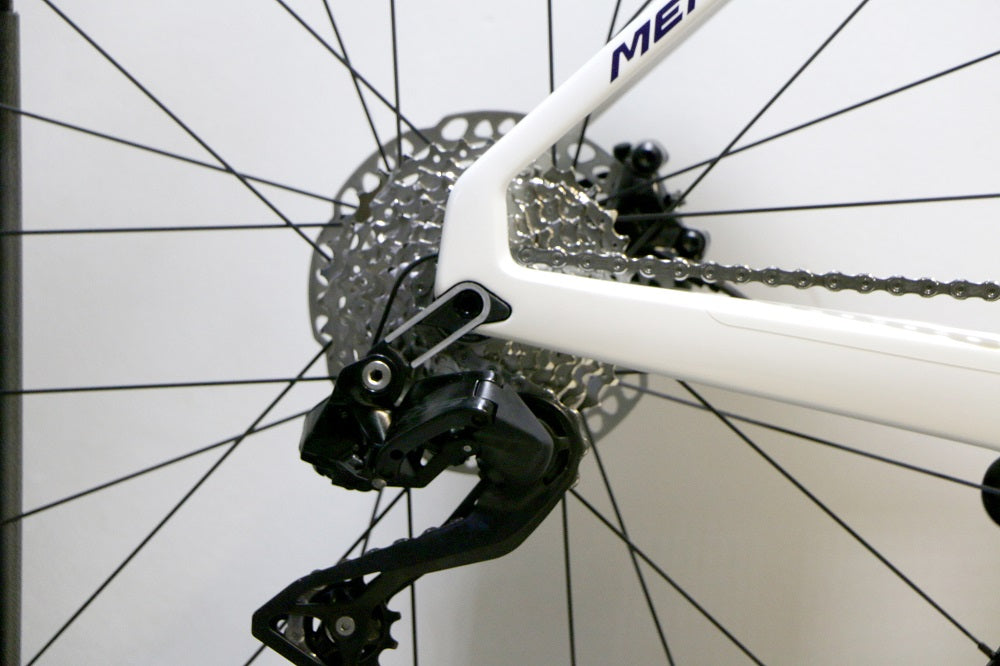

DERAILLEUR (R)
Shimano 105 Di2

SHIFTERS
Shimano 105 disc Di2

SEAT POST
MERIDA TEAM CW
Aero shape
15mm setback
Carbon

SEAT CLAMP
MERIDA REACTO Aero

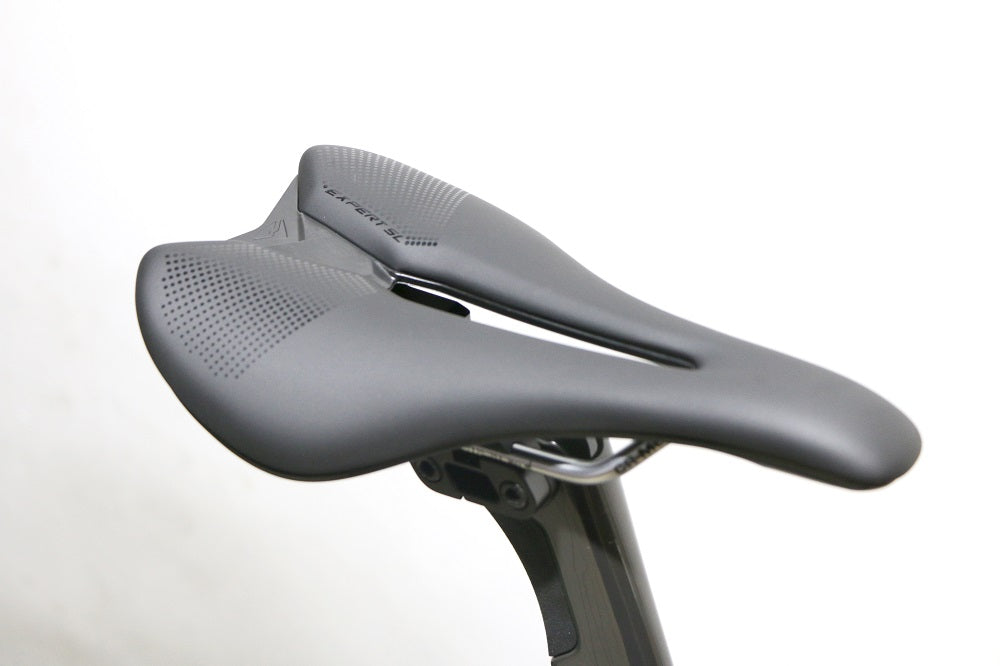

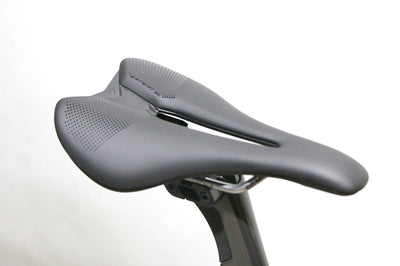

SADDLE
MERIDA EXPERT SL

CHAIN
Shimano M6100-12

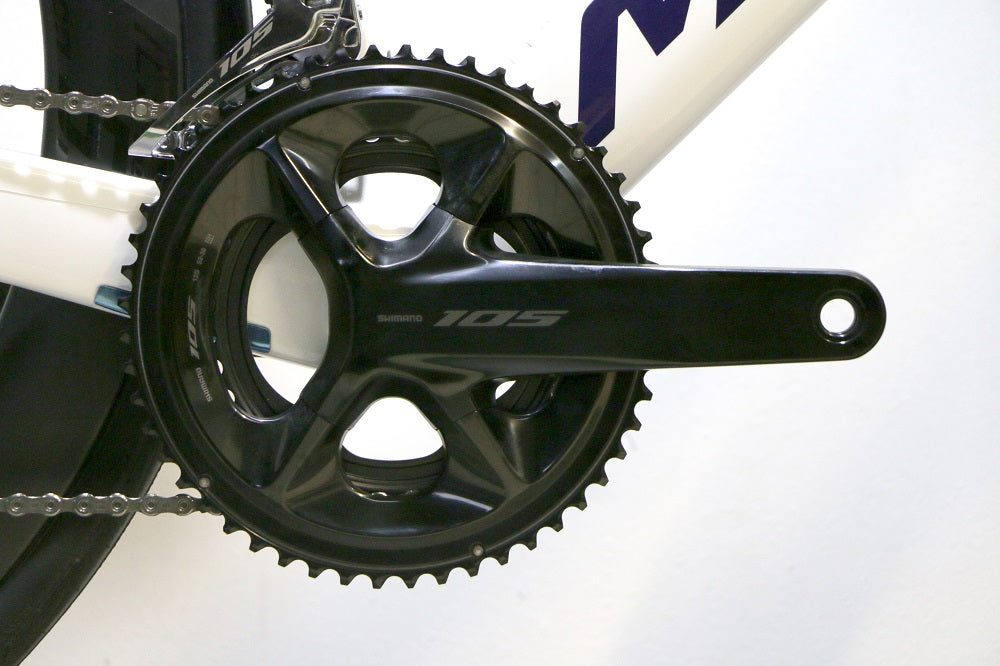

CRANK
Shimano 105 R7100
52-36 teeth
165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

FREEWHEEL
Shimano 105 R7101
11-34 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB72-41B

WHEELSET
Vision SC55 Disc brake
100x12mm width front hub
142x12mm width rear hub
19mm inner width
55mm height
Centerlock
material: carbon

TYRE FRONT
Maxxis Highroad
700x28C
fold *tubeless ready

TYRE REAR
Maxxis Highroad
700x28C
fold *tubeless ready

AXLES
MERIDA EXPERT SL

APPROX. WEIGHT
8.6 kg
