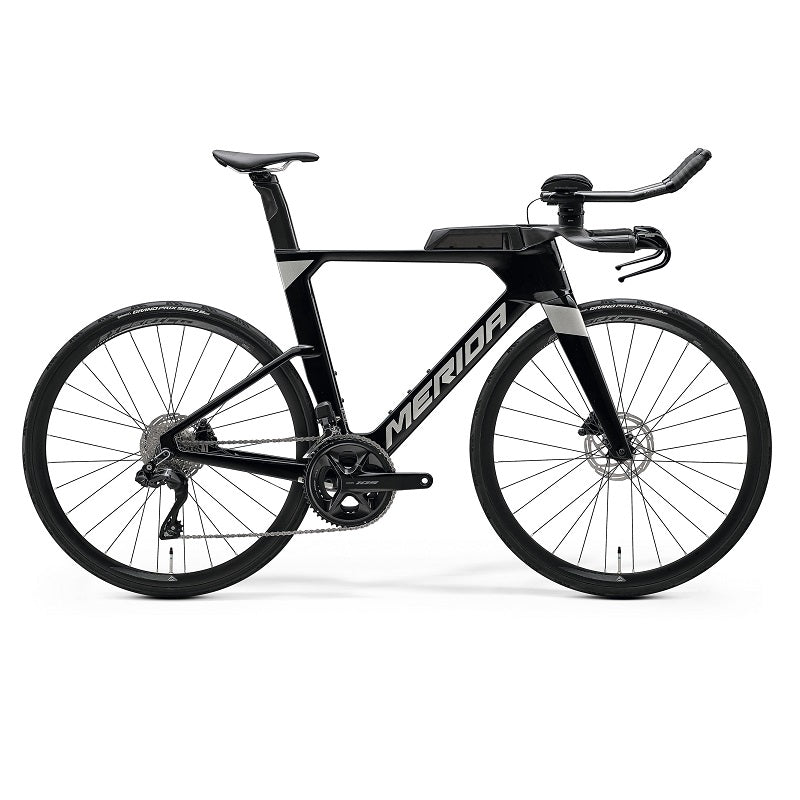

MERIDA Time Warp Tri 5000 (2025)

FRAME
TIME-WARP TRI CF5 IV
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
Pressfit 86,5

FORK
MERIDA TIME-WARP TRI CF5 IV disc
material: carbon
700x30C max. wheelsize

BRAKES
Riderever Triva
Hydraulic disc

ROTORS
REVER TRIVA
160mm

BRAKE LEVERS
REVER TRIVA

HEADSET
MERIDA TIME WARP TT

HANDLEBAR
MERIDA Metron TT
material: carbon

HANDLEBAR STEM
MERIDA Metron TT
material: carbon
-17°° stem angle *

GRIPS
MERIDA ROAD EXPERT

DERAILLEUR (F)
Shimano 105 Di2

DERAILLEUR (R)
Shimano 105 Di2

SHIFTERS
REVER TRIVA

SEAT POST
MERIDA TEAM TT II
Aero shape
Carbon

SEAT CLAMP
TIME WARP TT insert

SADDLE
MERIDA EXPERT SL
6% recycled and 23% nature material
V-mount
incl. MERIDA minitool

CHAIN
Shimano M6100-12

CRANK
Shimano 105
52-36 teeth
165 mm-XS, 170 mm-S/M, 172,5 mm-L

FREEWHEEL
Shimano 105 R7101
11-34 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB71-41B

HUBS
Shimano TC500 / Shimano TC500-HL
100x12mm width front hub
28 spoke holes
Centerlock
12x142mm width rear hub
28 spoke holes
Centerlock

RIMS
MERIDA EXPERT CW
19mm inner width
30mm height
material: aluminium
Tubeless ready (tubeless tape and valves not included)

TYRE FRONT
Maxxis Highroad
700x28C
fold
tubeless ready

TYRE REAR
Maxxis Highroad
700x28C
fold
tubeless ready

AXLES
MERIDA EXPERT SL

SPOKES
Double Butted Black stainless

MAX. WEIGHT
120 kg
