General
Dimension
630 x 800 mm (24.8″ x 31.5″)
Height
595 mm (23.4″)

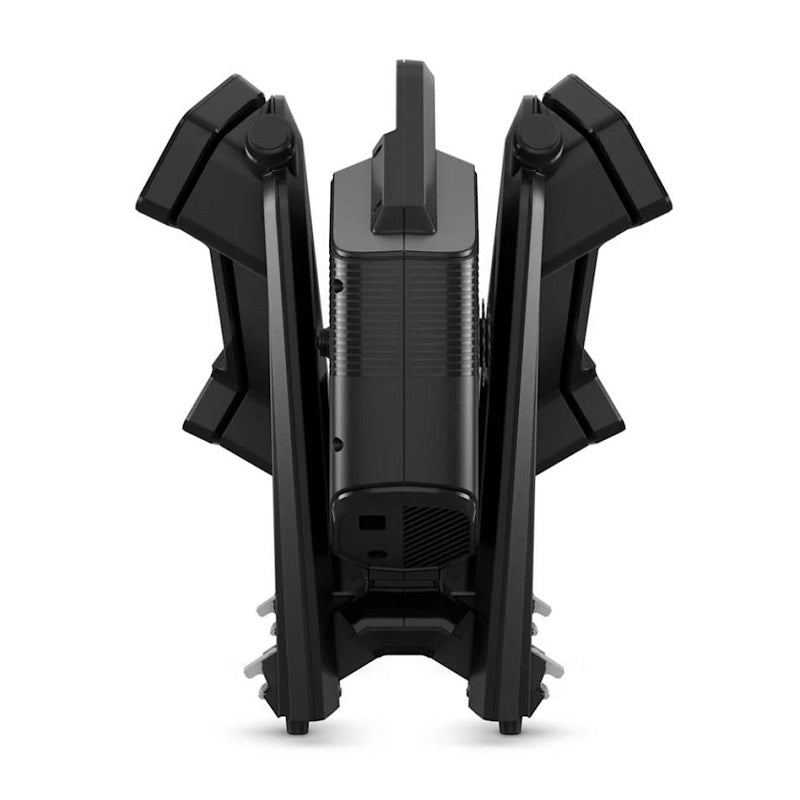

Dimensions When Folded
695 x 355 mm (27.4″ x 14.0″)
Weight
23.6 kg
Accuracy (+/-)
<1%
Connectivity
Wireless Communication
ANT+ connectivity, Bluetooth wireless technology
Tacx Smart Network Adapter Compatibility
Yes (provides Wi-Fi® and Ethernet connectivity option)
Control By
Smartphone, tablet, ANT+ bike computers, stand alone, computer connection via ANT+ antenna
Read Out On
Smartphone, tablet, bike computer, compatible smartwatch, computer with ANT+ antenna
Connection Indicator (ANT+/BLUETOOTH)
Multicolour LED
Power Indicator
Multicolour LED, spot on floor
Indoor Training Features
Magnets
32 neodymium magnets
Electrical Requirement
100-240 VAC 50/60Hz (with integrated power adapter)
Suitable Cassettes
Shimano/SRAM 9 to 11 speed (compatible, 11-speed cassette included)
Campagnolo
SRAM 12 speed/XDR
Shimano 12-speed Hyperglide+
Suitable Axles
Direct Drive quick release axle (130 mm/135 mm X 5 mm) for bikes with quick release axle
Thru axle end caps (142 mm/148 mm X 12 mm) for bikes with thru-axle
For bike dimensions outside of the industry standard, Garmin offers this adapter set as an additional accessory: 135 mm Thru-Axle Adapter Set [10 x 135 Non-drive Side (NDS), 12 x 135 NDS and 10 x 135 Drive-side (DS)].
Max Power
2200 Watt
Max Incline
25%
Simulation Of Descent
Yes
Max Torque
88 Nm
Max Brake Force
260 N
Flywheel
Virtual
Mass Inertia
Variable to 125 kg
Calibration
No calibration needed
Output
Speed, cadence, power
Measured Speed
Yes
Measured Cadence
Yes
Measured Power
Yes
Integrated Motion Plates
Yes
Works Without Mains Connection
Yes
