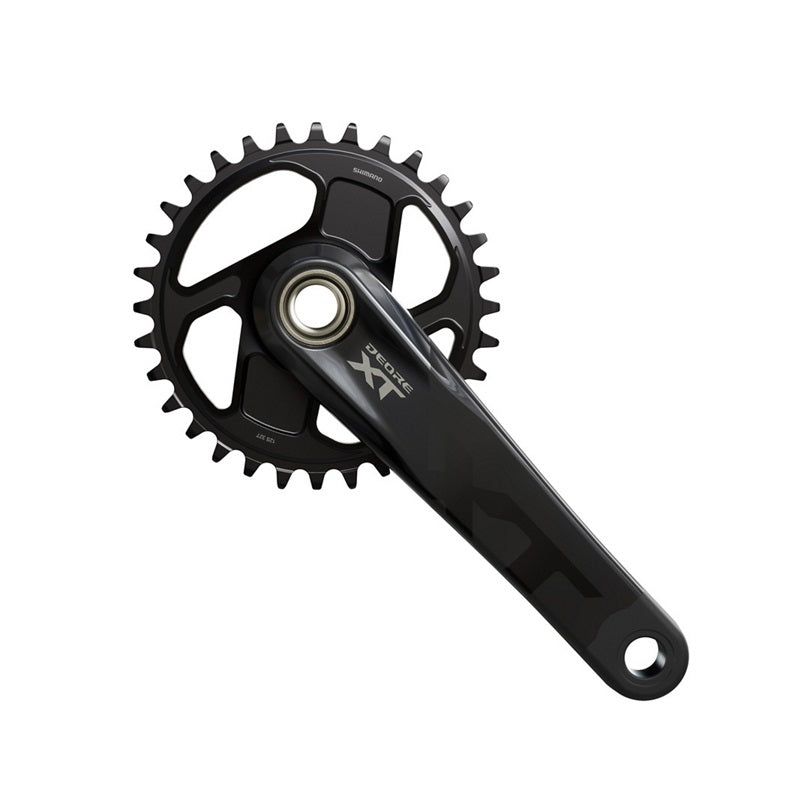

DEORE XT CRANKSET 176 MM Q-FACTOR 55 MM CHAIN LINE 12s
FC-M8200

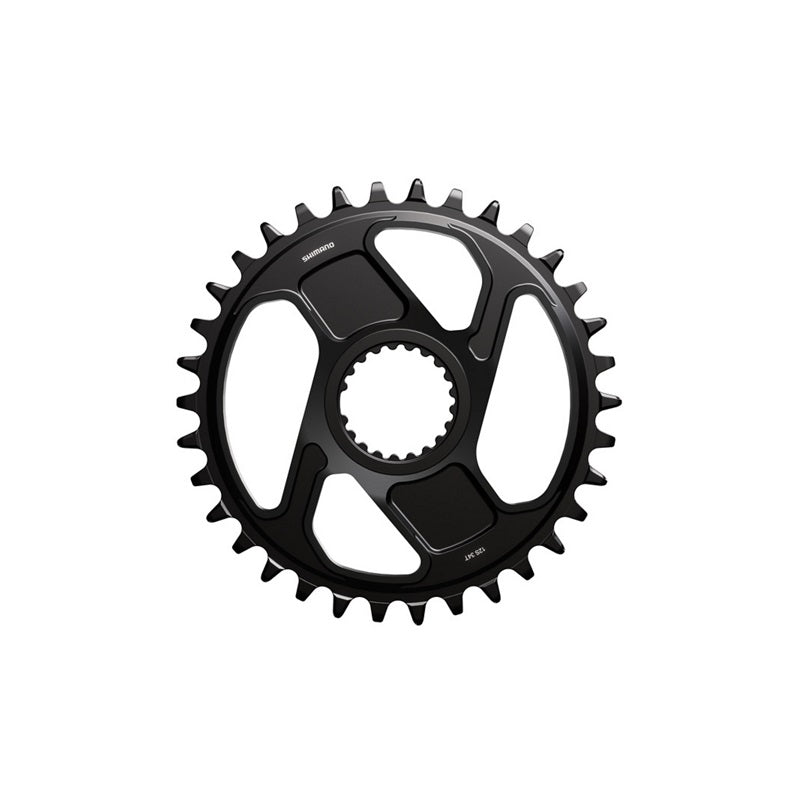

The FC-M8200 DEORE XT crankset perfectly balances rigidity and weight, using HOLLOWTECH II alloy forging and a standard 24 mm steel spindle to create a crankset that's strong enough to survive burly impacts, while remaining light enough for XC use. Offered in lengths from 160 - 175 mm and with all sizes of the reinforced SM-CR86 direct-mount chainring, there is a specification of FC-M8200 for every trail rider.
FEATURE
Enduro Durability: Perfected HOLLOWTECH II forging provides optimal weight, stiffness, and rigidity for both all-day trail riding and enduro racing.
Q Factor/Chain line: An optimized 176 mm Q Factor brings race-feel familiarity, while a unified 55 mm chain line offers maxed-out frame compatibility-no wheel or cassette changes required.
Compatibility: M8200 cranks come standard with a 24 mm spindle and are compatible with SHIMANO's threaded and press-fit bottom brackets.
PRODUCT SPECIFICATIONS
Model No
FC-M8200
Series
DEORE XT
Rear speeds
12
Compatible chain
HG 12-speed
Chain line (mm)
55
O.L.D. Thru (mm)
148
P.C.D. (mm)
Direct
Chainring combination
28T, 30T, 32T, 34T, 36T
