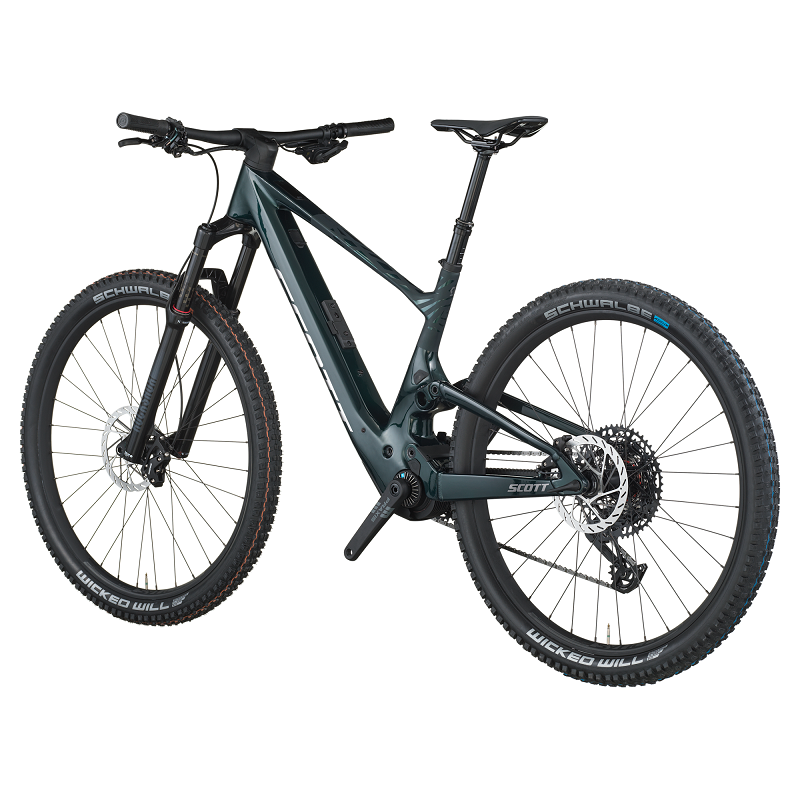

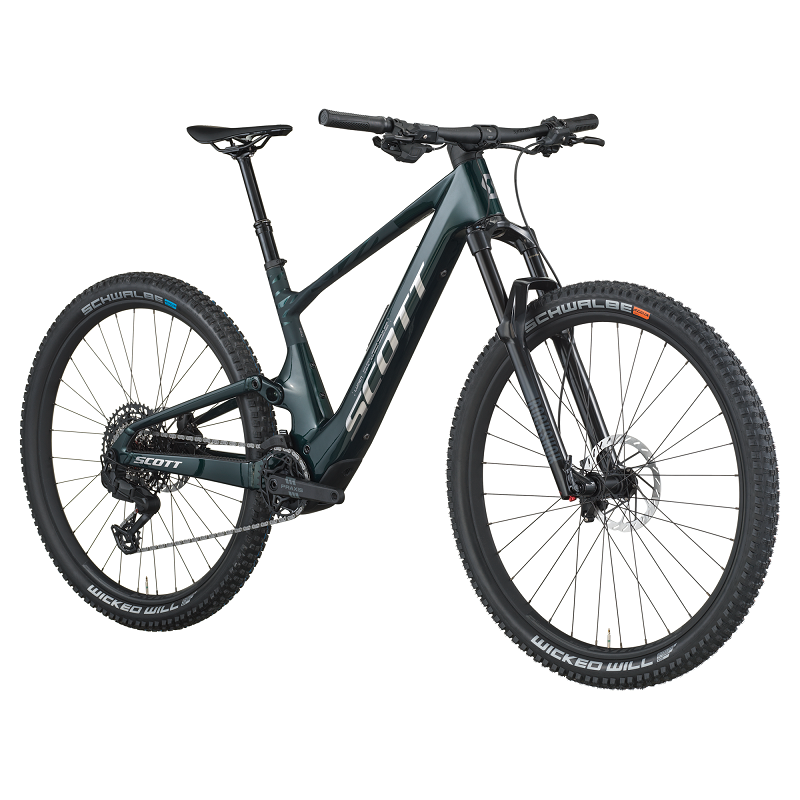

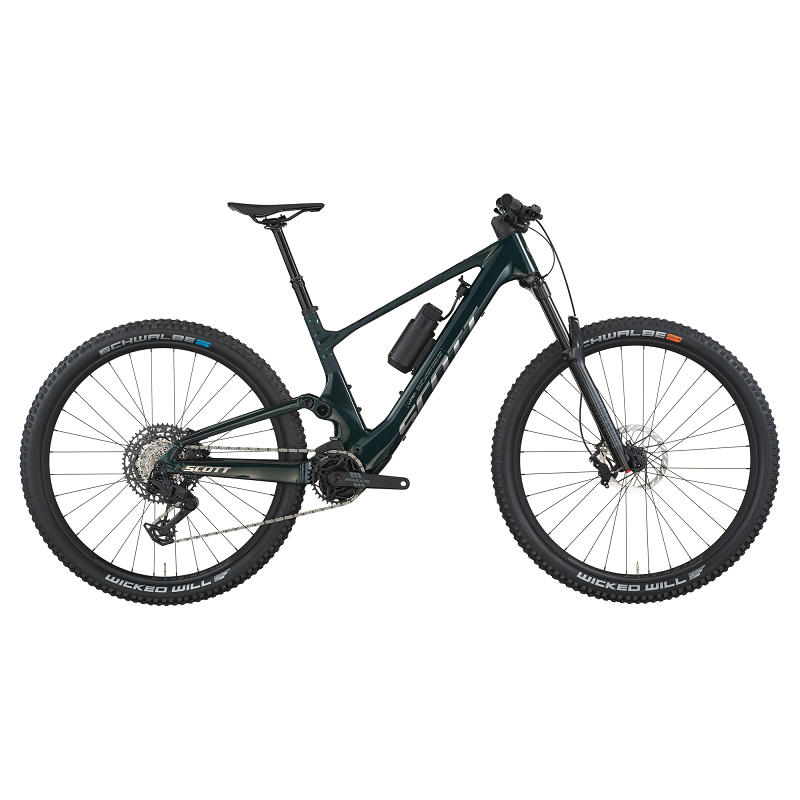

For the thrill of a lightweight eMTB in a build that won’t break the bank, the Lumen 920 is a must-have ride. With a carbon front and alloy rear triangle, it maintains the playful, agile, and responsive handling quality riders love about our full-carbon Lumens. With the new TQ HPR60 motor unit giving more torque than ever, you can wring out your best performances.
Lumen 920’s juice centers around TQ’s lightweight HPR60 motor unit that now supplies 60NM of trail-blasting torque to conquer the steepest climbs and roll over the challenging features. It’s a 20% increase in performance over the previous Lumen and one that doesn’t add any weight either. So, Lumen 920 still feels like a traditional, intuitive, non-powered MTB in the tech instead of bringing the heft of a bigger eMTB to manage.
Lumen 920 has more range than ever, too. Included with every Lumen 920 is a Range Extender Battery that complements the 360Wh main battery. It easily attaches with a quick-release mount or stows away in a pack to carry along—in case you want to get that extra lap in before sunset.
The Lumen 910 features a brightly illuminated black and white display and is equipped with 140mm of front and 130mm of rear travel, and SRAM’s Eagle 70 drivetrain.
Frame
Carbon HMF Main Frame, alloy SST-CST, Integrated Suspension Technology, Flex Pivot, adjustable head angle, Syncros Cable Integration System, TQ HPR60, UDH interface, 12x148mm with 55mm chainline
Travel
Front: 140 mm / Rear: 130 mm

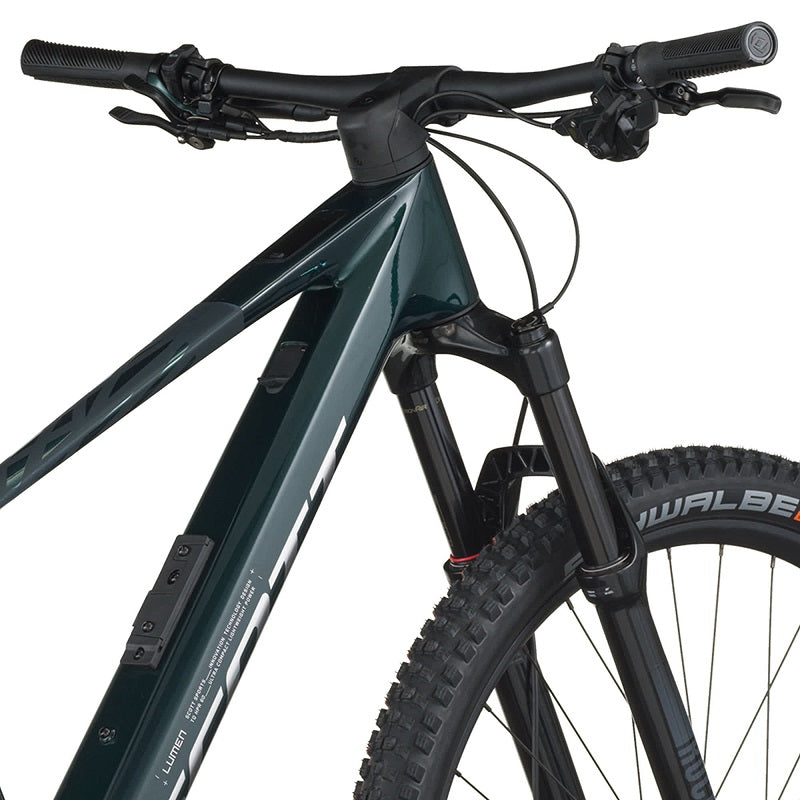

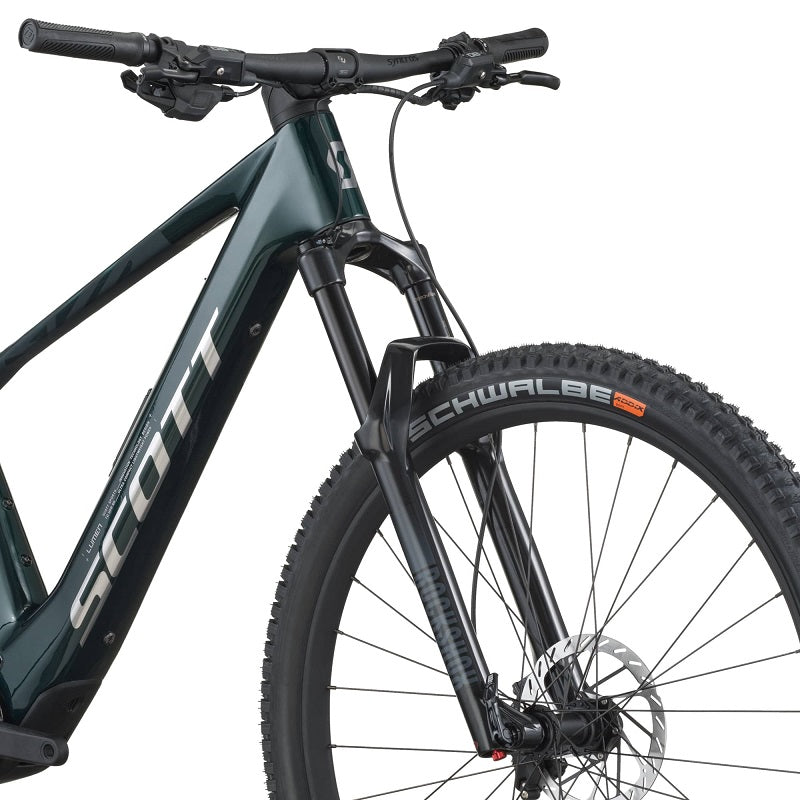

Fork
RockShox Recon Gold RL Solo Air, 15x110mm axle, tapered steerer, Reb. Adj., Lockout

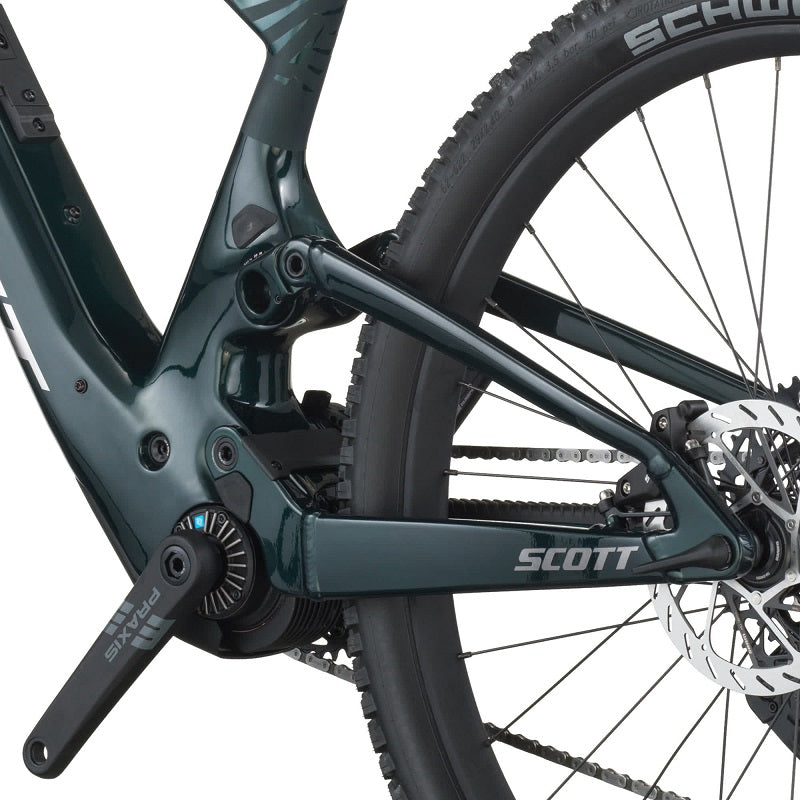

Rear Shock
X-Fusion Nude 5 RLX Trunnion, SCOTT custom w. travel, geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., T165X45mm
Remote System
SCOTT TwinLoc Technology, 3 Suspension modes

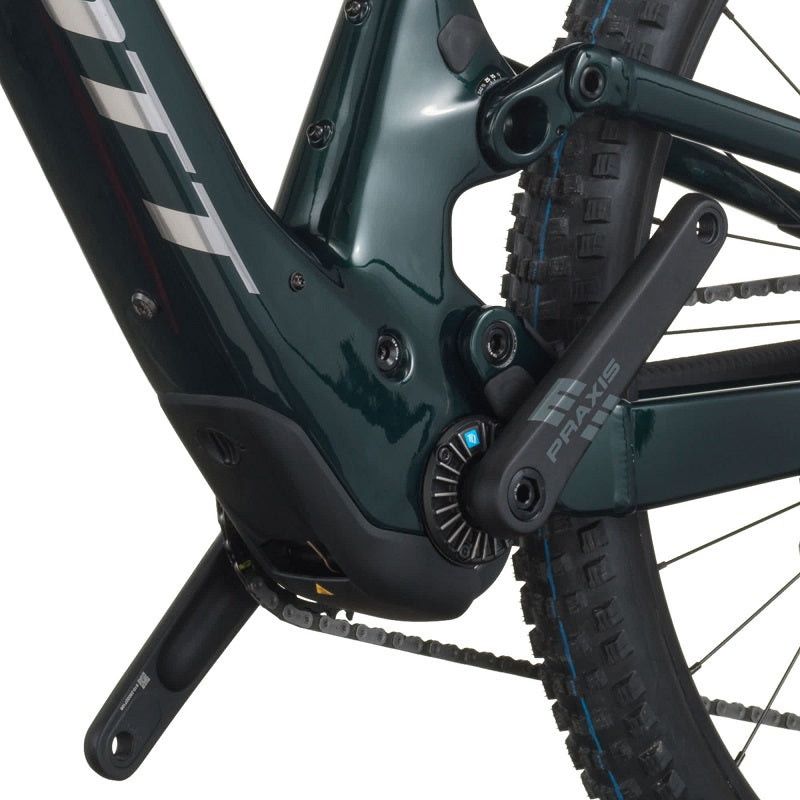

Drive Unit
TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh - INT: 20mph - US: 28mph
Battery
TQ Internal 360Wh
Display
TQ HPR, Bluetooth, ANT+, Dedicated Smartphone app
Charger
TQ 4A 100-240V

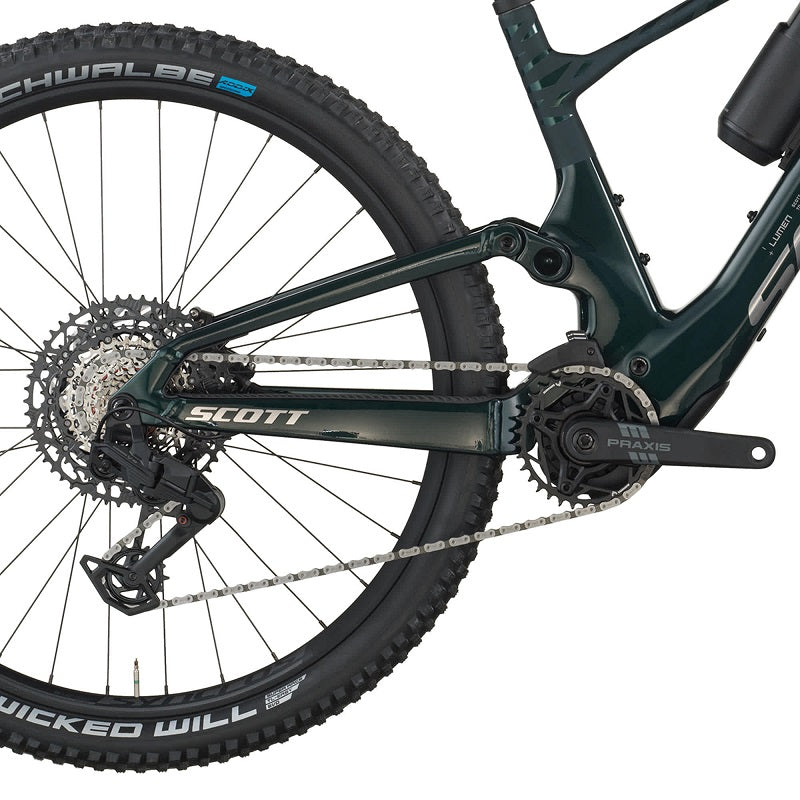

Rear Derailleur
SRAM Eagle 70 Transmission, 12 Speed
Shifters
SRAM Eagle 70 Trigger
Crankset
Praxis alloy
Chainguide
e*thirteen, e*spec Slider
Chainring
SRAM 104BCD 34T
Chain
SRAM Eagle 70 Transmission
Cassette
SRAM Eagle XS-1270 Transmission, 10-52T
Brakes
SRAM DB4 4-Piston
Front Disc Rotor
SRAM HS2 CL, 180mm
Rear Disc Rotor
SRAM HS2 CL, 180mm
Grips
Syncros Performance XC Lock-On
Handlebar
Syncros Fraser 2.0 DC alloy 6061 D.B. Mini Rise, back sweep 8°, 740mm Syncros Performance XC lock-on grips
H'stem
Syncros DC 2.0 Syncros Cable Integration System 0° rise, 6061 alloy, 31.8mm, 1 1/8"
Seatpost
Syncros dropper post SP-M302-AL2, 31.6mm
Seat
Syncros Tofino R 1.5
Headset
Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Front Hub
Formula CL-811, 15x110mm
Rear Hub
Formula CL-148S, 12x148mm
Spokes
Stainless Black
Front Rim
Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready
Rear Rim
Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready
Tires
Schwalbe Wicked Will EVO, TLE 29 x 2.40
Approx weight in KG
18.5
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
