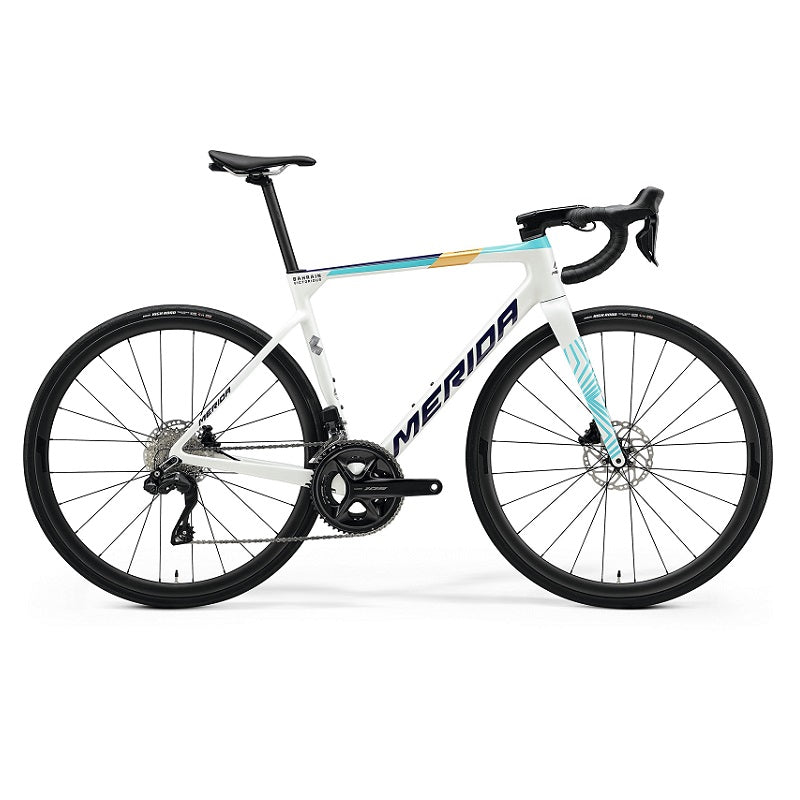

MERIDA Scultura 6000 Disc (2025)

FRAME
SCULTURA CF3 V
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
Pressfit 86,5

FORK
SCULTURA CF3 disc
material: carbon
700x30C max. wheelsize

BRAKES
Shimano 105
Hydraulic disc

ROTORS
Shimano RT64
160mm

BRAKE LEVER
Shimano 105

HEADSET
MERIDA TEAM SL

HANDLEBAR
MERIDA EXPERT SLII
material: aluminium
380mm (3XS-XXS-XS)
400mm (S-M-L-XL)

HANDLEBAR STEM
MERIDA EXPERT SL 2PII
material: aluminium
9° stem angle
90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL),
incl. MERIDA SMART MOUNT

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Shimano 105 Di2

DERAILLEUR (R)
Shimano 105 Di2

SHIFTERS
Shimano 105 disc Di2

SEAT POST
MERIDA EXPERT CC
27.2mm diameter
15mm setback
Carbon

SEAT CLAMP
MERIDA EXPERT

SADDLE
MERIDA EXPERT SL
6% recycled and 23% nature material
V-mount
incl. MERIDA minitool

CHAIN
Shimano M6100-12

CRANK
Shimano 105 R7100
52-36 teeth
165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL)

FREEWHEEL
Shimano 105 R7101
11-34 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB72-41B
Pressfit 86.5

WHEELSET
Vision SC30 DB
100x12mm width front hub
142x12mm width rear hub
19mm inner width
30mm height
Centerlock
material: carbon

TYRE FRONT
Maxxis Highroad
700x28C
fold *tubeless ready

TYRE REAR
Maxxis Highroad
700x28C
fold *tubeless ready

AXLES
MERIDA EXPERT SL

APPROX. WEIGHT
8.2 kg

MAX. WEIGHT
120 kg
