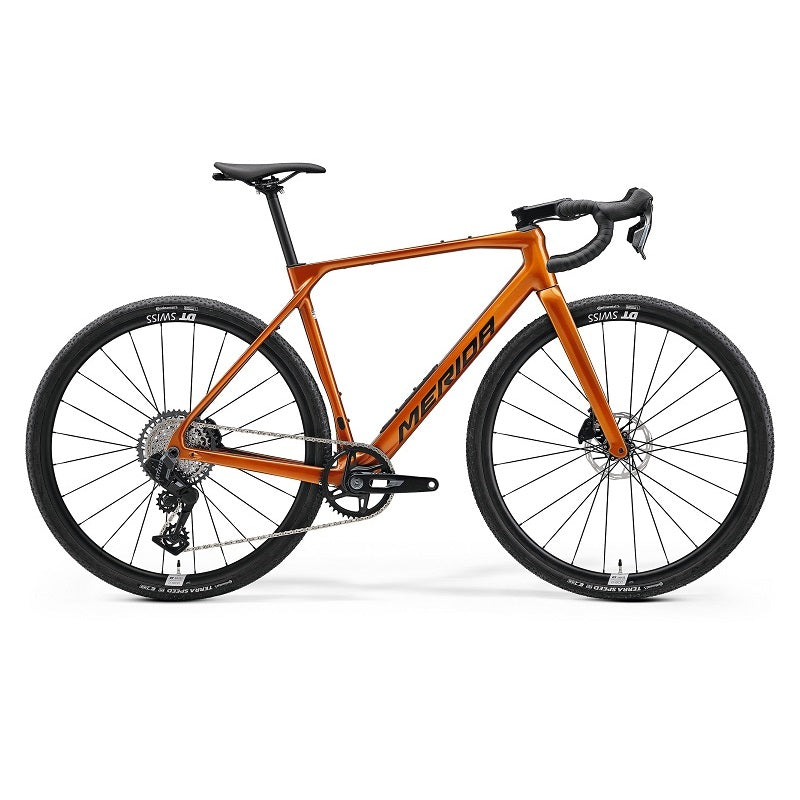

MERIDA Mission 6000 (2026)

FRAME
MISSION CF4 II
material: carbon
700x40C max.WHS
100x12/142x12mm axle standard
BSA bottom bracket standard

FORK
MERIDA MISSION CF4 II
Tapered
material: carbon
700x45C max. wheelsize

BRAKES
Sram Rival AXS XPLR
Disc

ROTORS
Sram Paceline RT-PLN-A2
160 mm

BRAKE LEVER
Sram Rival AXS XPLR

HEADSET
Acros ICR MERIDA external neck w/diecast splitring

HANDLEBAR
MERIDA EXPERT GR II
material: aluminium
380mm (XXS-XS-S) , 400mm (M-L) , 420mm (XL)

HANDLEBAR STEM
MERIDA TEAM CC III
material: aluminium
31.8mm diameter
-6°° stem angle
90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL

GRIPS
MERIDA ROAD EXPERT

DERAILLEUR (R)
Sram Rival XPLR
AXS wireless T-Type

SHIFTERS
Sram Rival AXS
Hydraulic disc

SEAT POST
MERIDA EXPERT SL
27.2mm diameter
0mm setback
Carbon

SEAT CLAMP
MERIDA EXPERT

SADDLE
MERIDA COMP SL
25% recycled material
V-mount

CHAIN
Sram Rival
Flattop

CRANK
Sram Rival XPLR
42 teeth
MAT Aluminium
165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREEWHEEL
Sram Rival XPLR
10-46 teeth
13 speed

BOTTOM BRACKET
Sram DUB BSA Road Wide
68mm

WHEELSET
DT Swiss G 1800 spline
CL
100x12mm width front hub
142x12mm width rear hub
24mm inner width
25mm height
Centerlock
material: aluminium

TYRE FRONT
Continental Terra Speed ProTection 40mm
40-622
TLR
foldable skin SL

TYRE REAR
Continental Terra Speed ProTection 40mm
40-622
TLR
foldable skin SL

AXLES
MERIDA EXPERT TR
L=165,5mm M12x1,0 *including removable lever
6/4mm allen key

SPOKES
Black stainless

APPROX. WEIGHT
9.1 kg

MAX. WEIGHT
120 kg
