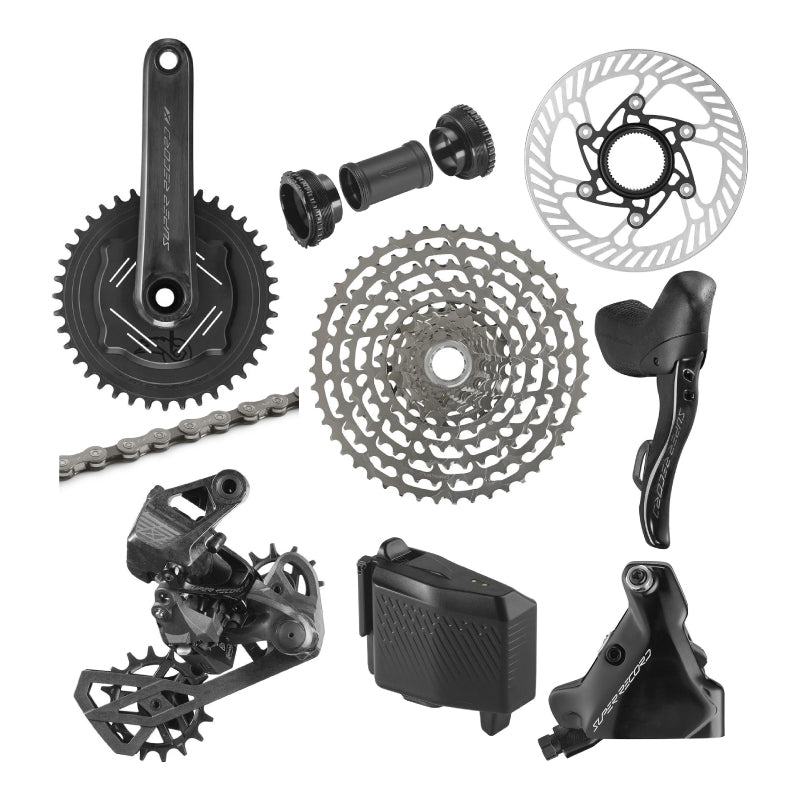

CAMPAGNOLO Super Record X Disc 13-Speed Wireless Gravel Groupset

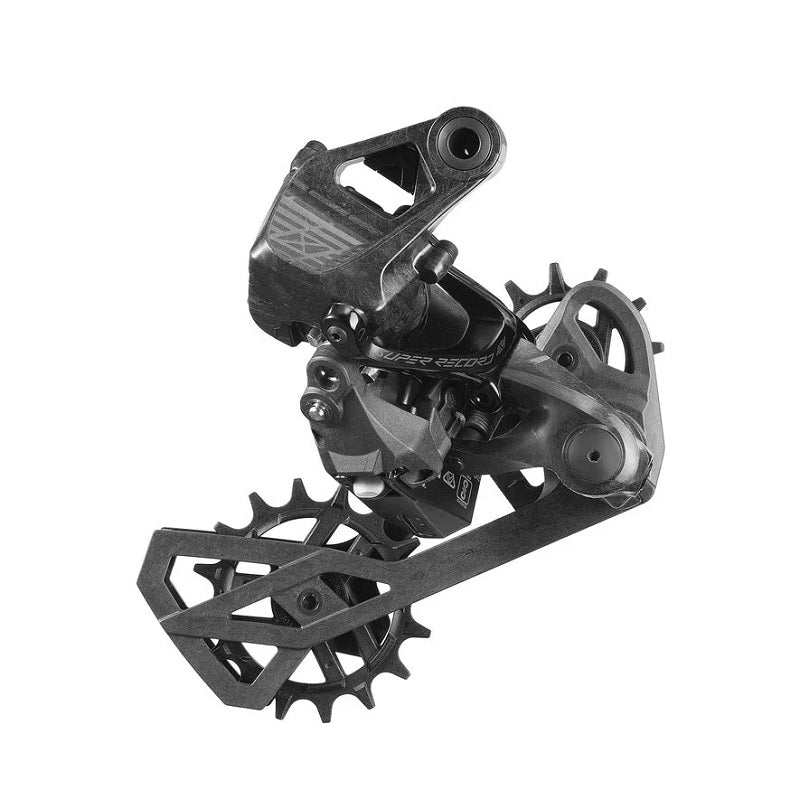

Super Record X Rear Derailleur
One of the most significant developments of the Super Record 13 platform is its version dedicated to gravel riding.

Weight
347g with battery

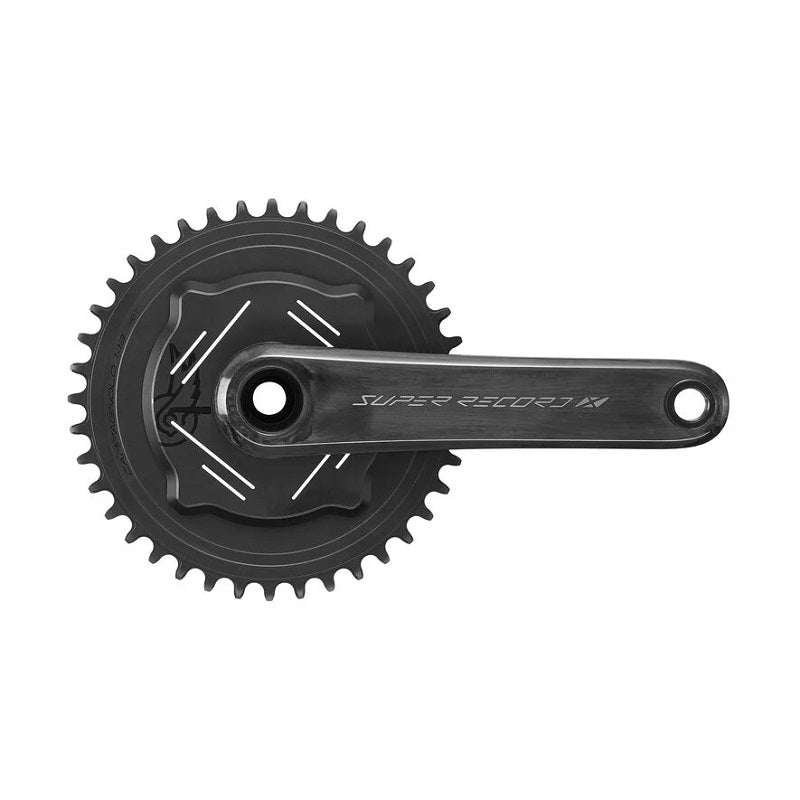

Super Record X Crankset
The new single-chainring aero crankset developed for the Super Record X is the result of an engineering project aimed at combining structural rigidity, mechanical efficiency, super-light weight, and functional aerodynamics, without sacrificing the distinctive design that characterizes every Campagnolo product.

Weight
Weight: 625 g (172.5 m, 50z Aero, bearings assembled)

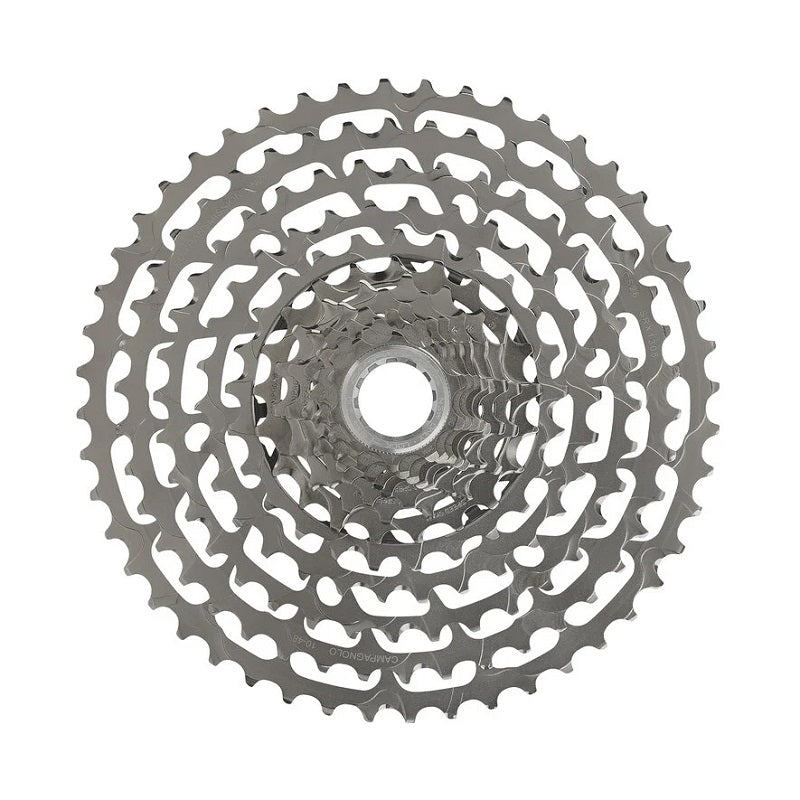

Super Record X Sprocket Set
From experience gained with Ekar 13s, Campagnolo introduces a new generation of cassettes for the Super Record 13 groupset, designed to ensure even smoother, faster, more accurate and quieter shifting. Thanks to space optimization and use of a 13-speed chain, it has been possible to add an extra sprocket without changing the freewheel body standard: the tried and tested N3W standard has been maintained without adapters or dedicated hubs.

Weight
9-42 weight 322g
10-48 weight 364g

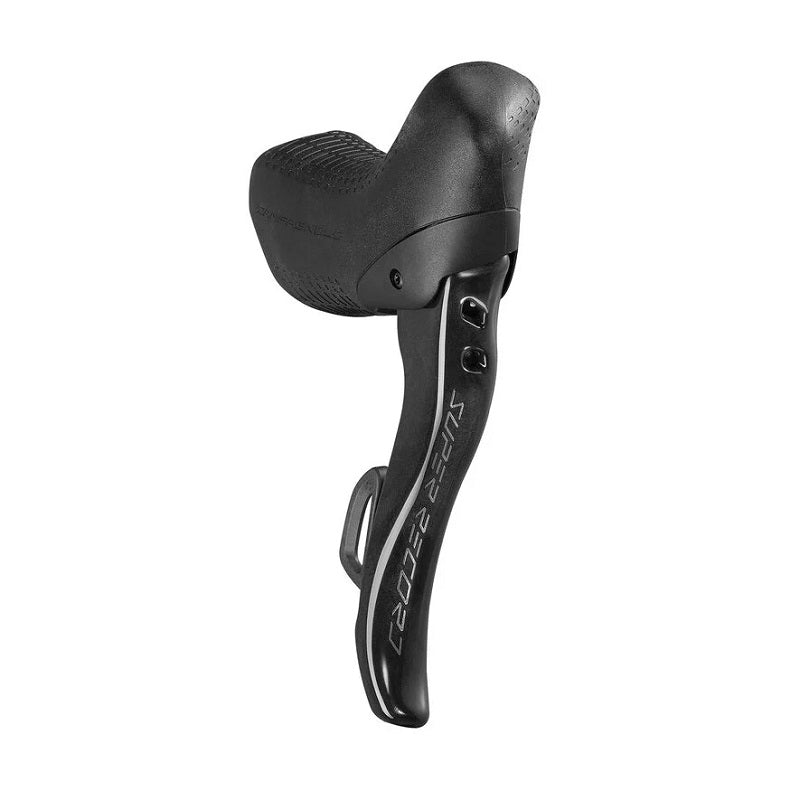

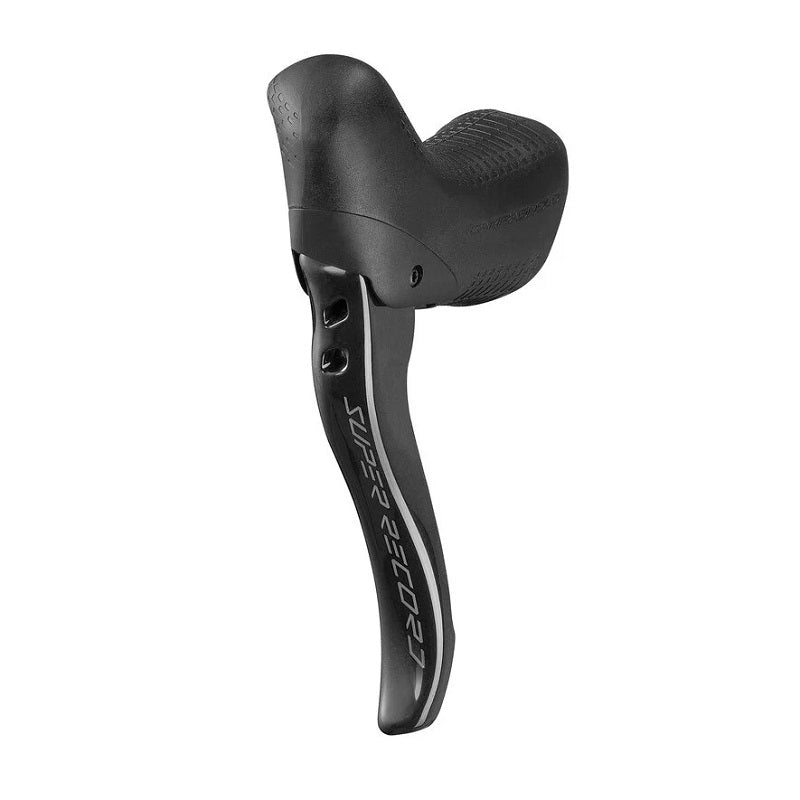

Left / Right Ergopower Control - Brake Lever
The new Ergopower marks one of the most important chapters in the development of the Super Record platform. In this version, Campagnolo offers its purest essence: a brake-only control, designed to eliminate the superfluous and provide a simple, direct, and natural interaction to the cyclist, ideal for single-chainring road and gravel setups.

Weight
404 g / the pair (including master cylinder and connection kit/not including brake kit)

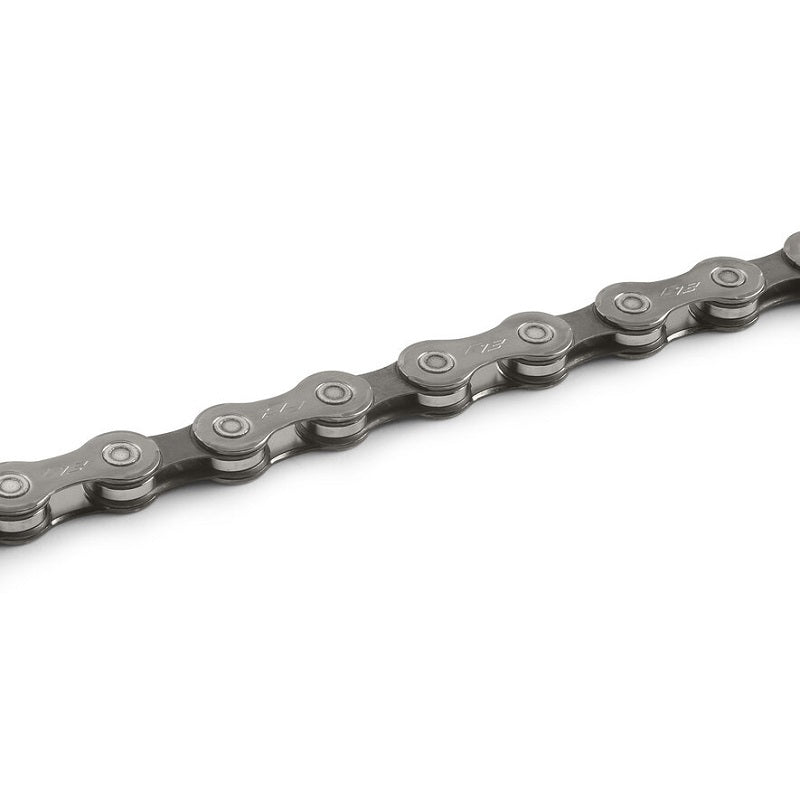

Campagnolo 13s Chain
The Campagnolo 13 solid pin chain is a key item in obtaining a balanced drivetrain and has been designed to offer maximum safety, efficiency and precision. Behind its apparent simplicity lies a highly advanced project developed to perfectly integrate with the new Campagnolo groupset standards and guarantee reliable performances even under high power transfers, as demonstrated by the experience with Ekar 13s.

Weight
256 g/124 links

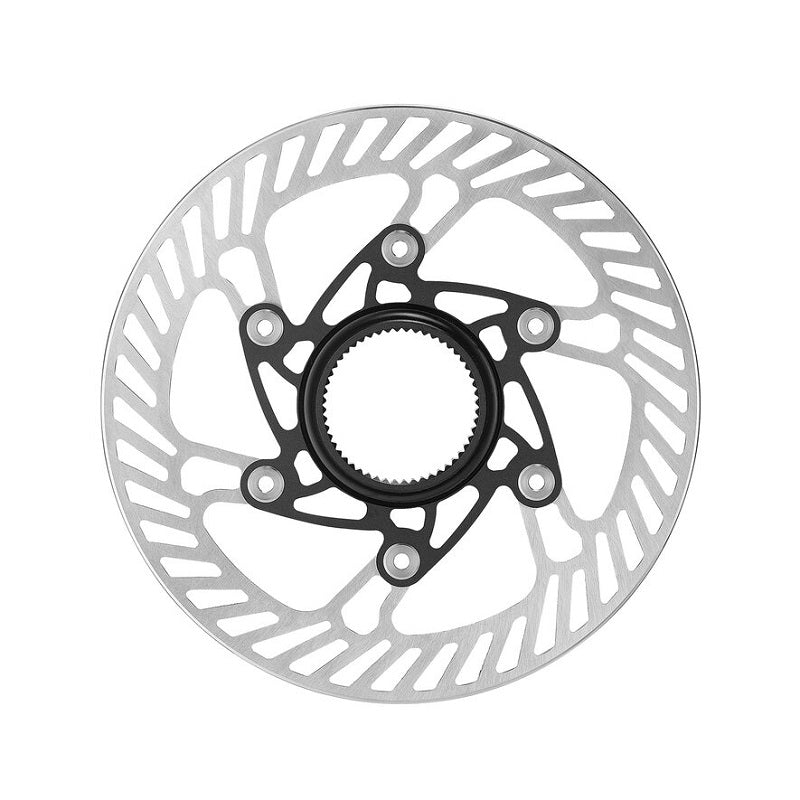

Campagnolo Rotor 03
The Campagnolo 03 rotors were designed to ensure optimal resistance to overheating, thus guaranteeing greater braking capability even in the most critical situations.

Weight
Combinations 160 mm - 140 mm
Weight 99 gr (140 mm, 1 pz)

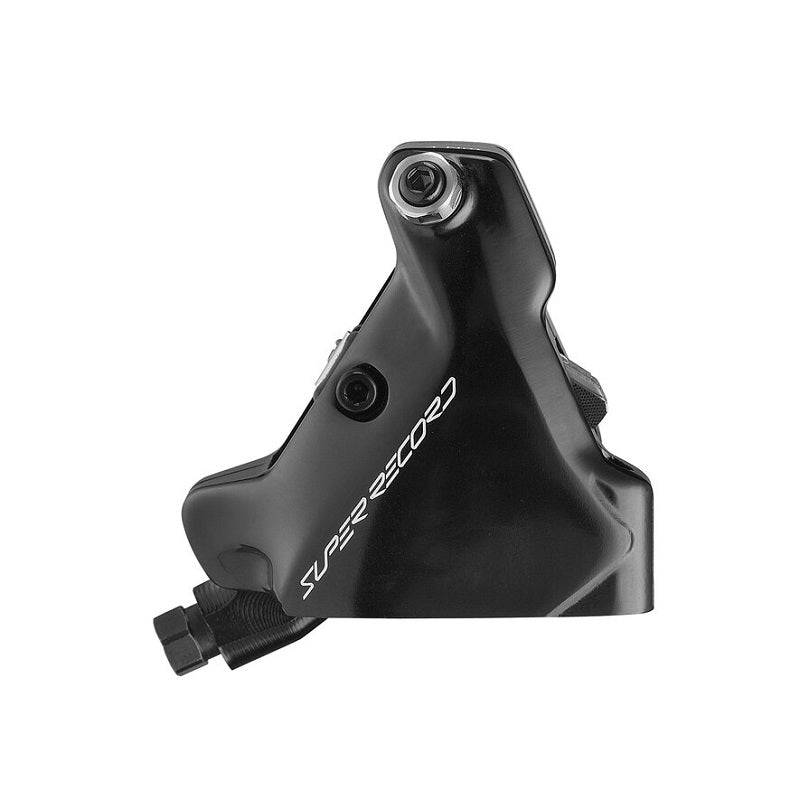

Super Record 13 Caliper
The Super Record 13 brake calipers ensure powerful, progressive and smooth braking, thanks to the 22 mm pistons that guarantee responsiveness and control in all conditions. The optimized pad return system eliminates friction when releasing the lever, further improving the riding sensation.

Weight
Front brake kit 160mm (with tube and oil) 140gr
Rear brake kit 140mm (with tube and oil) 150gr

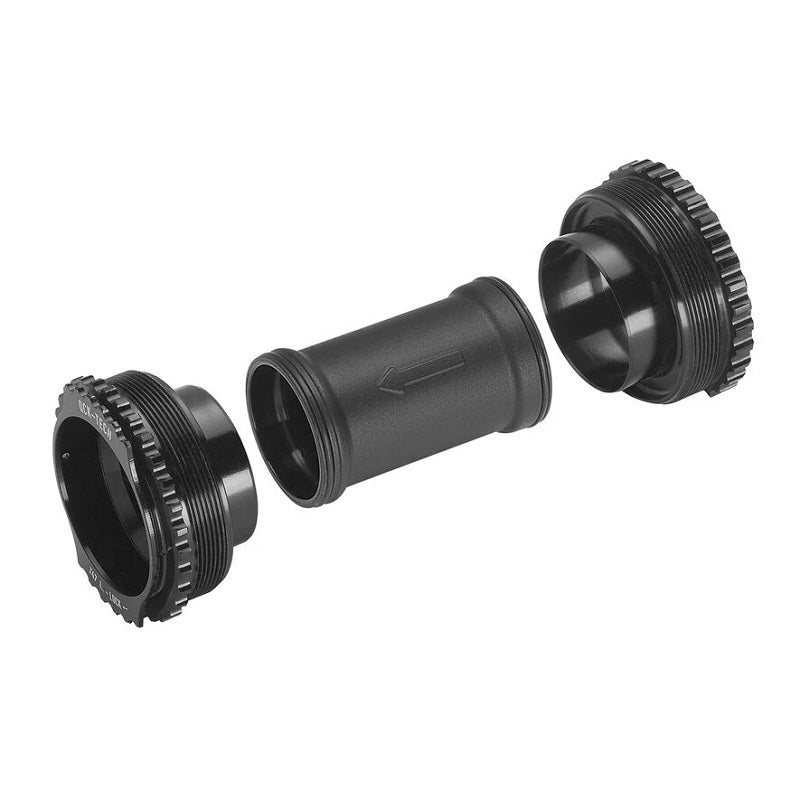

QCK-Tech Bottom Bracket
The new Super Record bottom bracket has been redesigned from scratch to provide faster, more intuitive and more precise assembly, thanks to the proprietary QCK-Tech (Quick Tech) technology. This advanced system integrates a patented external seal, designed to effectively protect the ball bearings from external agents such as water, mud and sand. The central tube, made of polyamide reinforced with fiberglass, guarantees impeccable watertightness, preventing any contamination inside. The new cups house oversize stainless steel bearings, fitted directly onto the Ultra-Torque semi-axles, firmly integrated into the cranks. The result is superior structural rigidity and direct, reactive power transmission faithful to the high-performance DNA of the Super Record groupset.

Weight
52 gr
THREADING BSA / ITA / T47x68 / T47x86 / T47A
PRESS FIT: BB30 / PF30 / BB86 / BBEVO386 / BB RIGHT

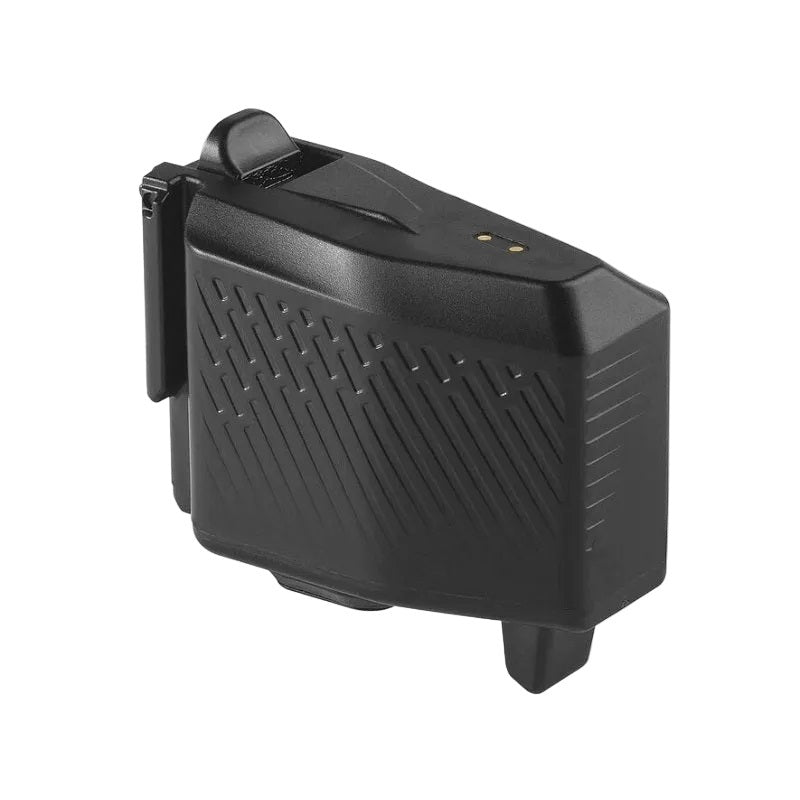

Super Record 13 Battery
The battery of the SUPER RECORD 13 platform embodies simplicity, efficiency, and maximum practicality. Removable and easy to install, it is equipped with a quick-snap magnetic port that ensures immediate recharging, whether on the frame or removed, thus eliminating the need for dedicated slots or adapters.

Weight
34 g
