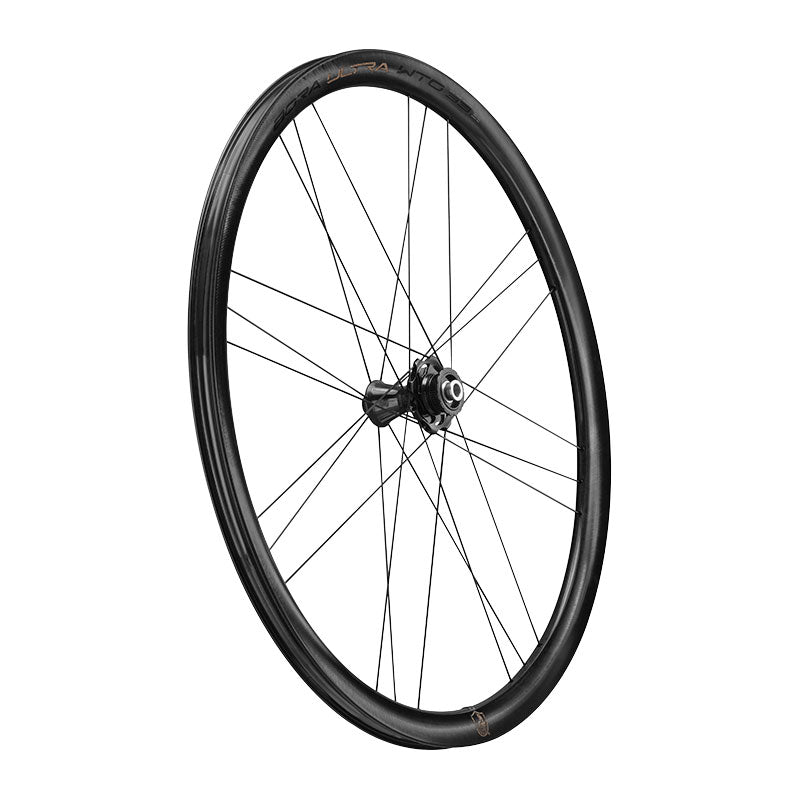

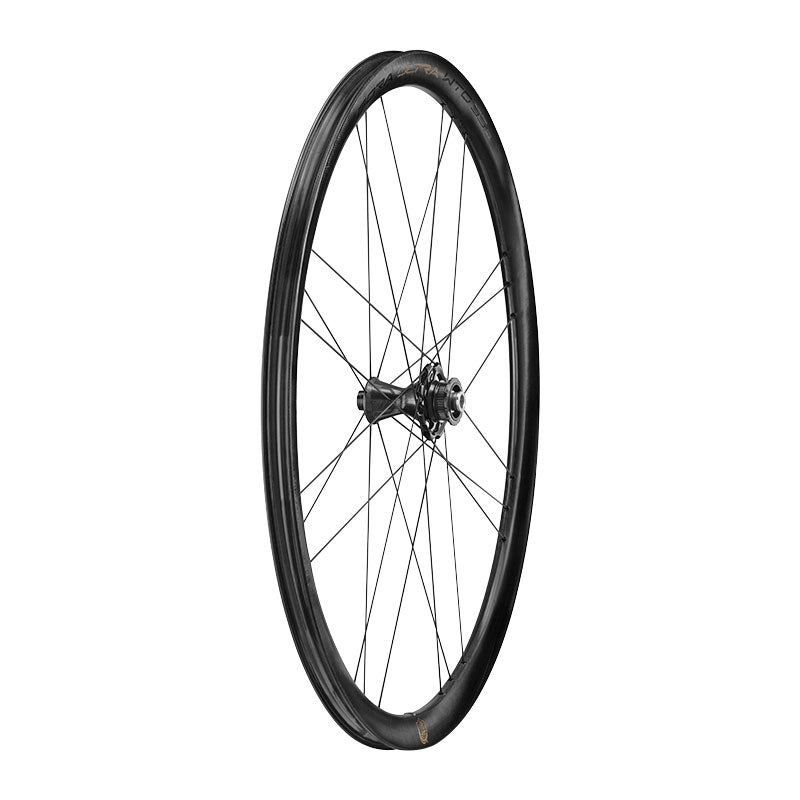

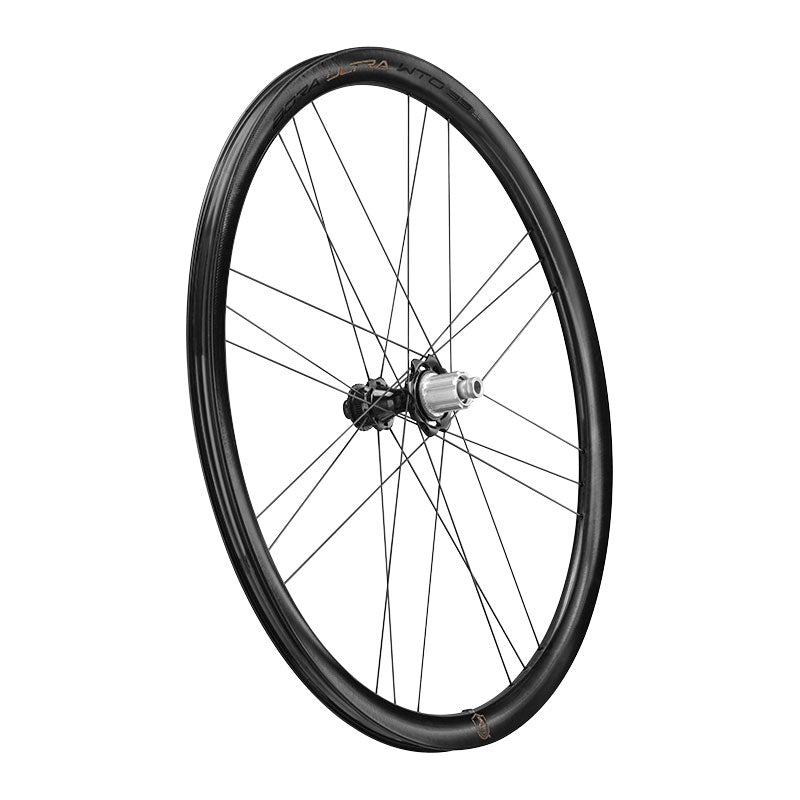

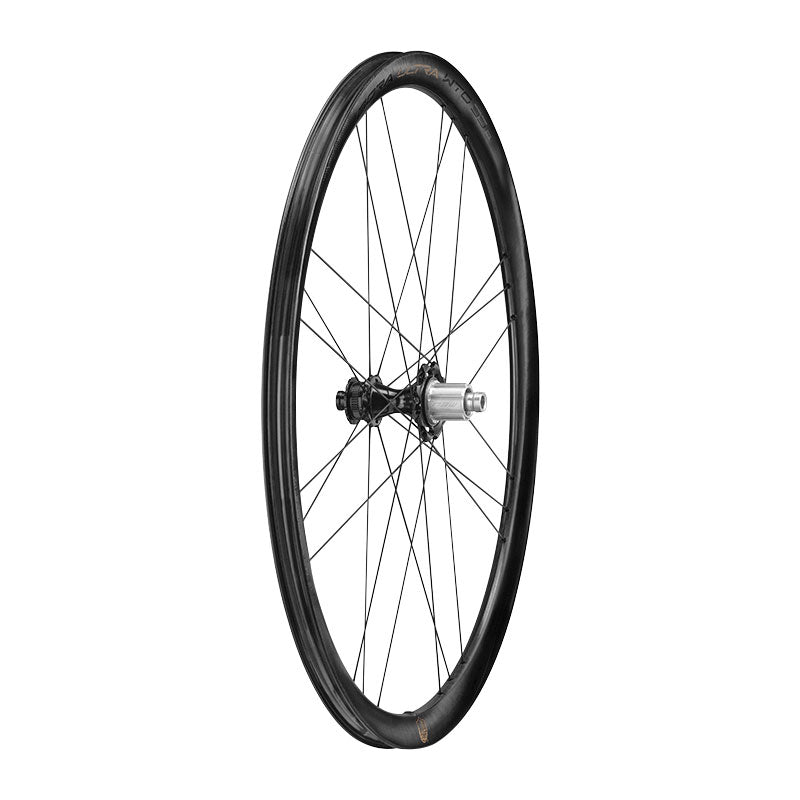

At only 33mm deep, the Bora Ultra WTO 33 has the shallowest wind tunnel optimised (WTO) rim profile of the new Ultra family. Every external component of the wheel has been redesigned to maximise aerodynamic efficiency and reduce weight, saving you precious energy, and generating greater speed from the same rider input.
SPECIFICATIONS:
SPOKES
Spokes: 24 Aero Elliptical, straight pull, double-butted 1.5mm
Spoke pattern: G3
Nipples: Aluminium Aero Mo-Mag, self-locking, internal
VERSIONS AND WEIGHTS
Campagnolo N3W FW body
HG FW body
XDR FW body
1.385 g
front 640 g
rear 745 g
COMPATIBILITY
Campagnolo sprocket set 11/12/13
Shimano sprocket set 10/11 - SRAM 10/11
SRAM 12 sprocket set
HUB
Front: Bora Ultra,carbon body
Rear: Aluminium body, 36 tooth ratchet freehub
Hub width: 100-142mm
Axle type: 12mm aluminium thru axle
Bearings: CULT ceramic, cup and cone
Brake interface: AFS disc
Freehub compatibility: N3W, XDR, HG
RIM
ASTM classification: 1
Material: H.U.L.C. UD high-strength carbon fibre
Finish: C-LUX
Tyre interface: 2-Way Fit
Tyre compatibility: Tubeless, tubeless-ready, clincher
Recommended tyre size: 700c, from 25mm
Rim height: 33mm
Internal width: 21mm
External width: 27.4mm
Decals: Water transfer DCS (Dark, copper shaded)
TYRES
Tubeless
Tubeless-ready
Clincher
ASSEMBLY
The Bora™ Ultra WTO™ 33 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability
COMES WITH
Aero Mo-Mag nipple maintenance kit
Tubeless valves
AFS lockrings
Campagnolo wheel bags
Campagnolo accessories bag
Tyre levers
Campagnolo N3W Z11 adapter (on Campy freehub version).
