SMALLS WILL BE ARRIVING LATER THIS YEAR.
FRAME

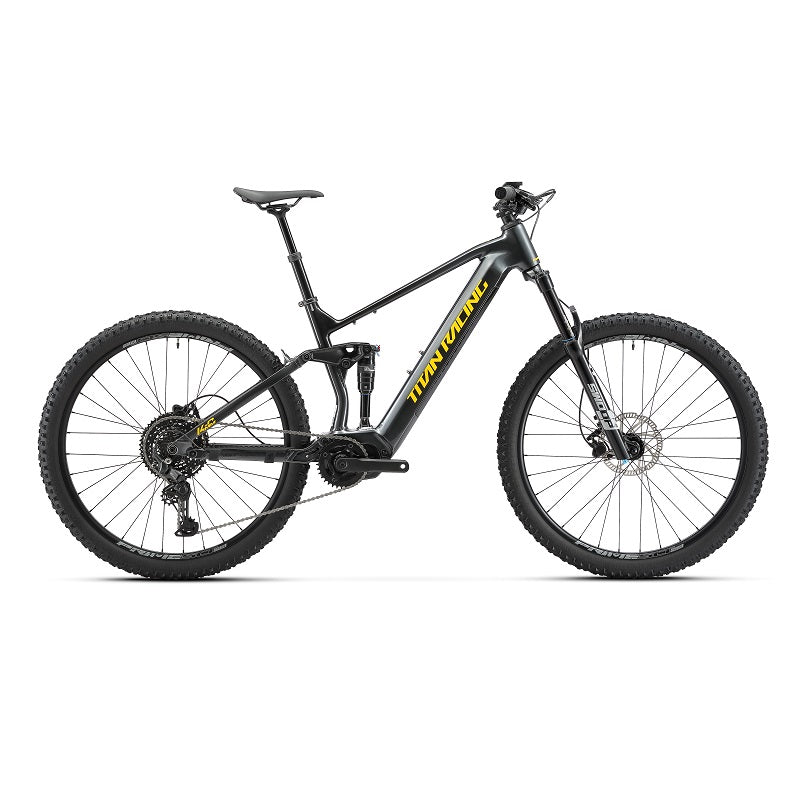

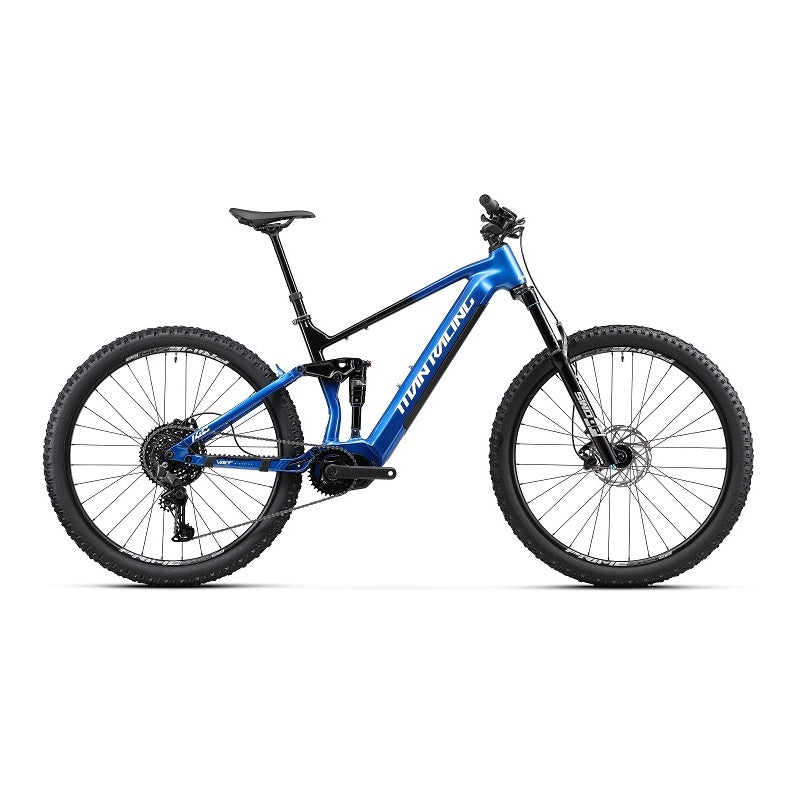

VOLT 4 BAR HORST LINK ALLOY FRAMESET WITH INTEGRATED BATTERY
HYDROFORMED TUBING / INTERNAL CABLE ROUTING / BOOST 148MM WITH THRU AXLE
FORK
SWOOP GTMRK 830-E 29" 150MM
GTMRK 830-E 29″ 150MM 35MM AL7075 STANTION HL REBOUND AIR TA
REAR SHOCK
X-FUSION 02 PRO RLX 140MM
CHAINWHEEL
ANANDA EP01A 34T
ANANDA EP01A 34T / 10 SPEED / ALLOY CRANK / STEEL CHAINRING
DERAILLEUR REAR
SHIMANO CUES RD-U6000
SHIFTER RIGHT
SHIMANO SL-U6000-10R
CHAIN
SHIMAMNO CUES CN-LG500 10 SPEED
FREEWHEEL
SHIMANO CUES CS-LG300-10 11-48T
SPEED
10 SPEED
CRANK
ANANDA EC38-F5-ISIS-165 (L)+(R), ISIS SCREW
BATTERY
GREENWAY 630WH
CONTROLLER
ANANDA D18 TFT DISPLAY
DISPLAY
ANANDA D18 TFT DISPLAY
SENSOR
ANANDA
MOTOR
ANANDA TR M230 350W/100NM WITH 32KM/H ASSIST
BRAKE LEVER
TEKTRO M280
BRAKE FRONT
TEKTRO M280 2 PISTON WITH 180MM
BRAKE REAR
TEKTRO M280 2 PISTON WITH 180MM
RIMS
PRIME SL 27 TLR RIM 32H
TR PRIME SL 27 / 29er / MATT BLACK / DOUBLE WALL W/EYELETS / 32H / TL-READY / F/V
HUB FRONT
NOVATEC
NOVATEC D041SB-B15 M15x110x32H (6-BOLT), Boost
HUB REAR
NOVATEC
NOVATEC D442SB-S3S-B12-MS M12x148x32H (6-BOLT), Boost
SPOKES
STAINLESS BLACK 14Gx290mm / 14Gx288mm
TUBE
29″ F/V
TYRES
INNOVA PRO PODIUM 29" × 2.4"
INNOVA PRO PODIUM 29″ x 2.4″ RACE 60TPI TYRES
GRIP
TR SLIDELOCK GRIP
HANDLEBAR
TR PRO ALLOY RISER BAR 780MM
PROMAX HB-3188DB R15 780MM
HANDLEBAR STEM
TR PRO ALLOY STEM
DA-205 3D FORGED AL6061 / 31.8mm BAR BORE / 28.6mm CLAMP I.D / 6 DEGREE RISE / S = 60mm / M/L = 80mm / XL = 100mm
HEADSET
FSA NO.57 – HBS / NO.57- ACB
SPACER
10mm X 2 PCS
SADDLE
SR A084HR0018014
SEAT POST
X-FUSION MANIC WITH REMOTE 34.9
X-FUSION MANIC LC S = 125MM / M = 150mm / L+XL = 170MM WITH PLASTIC REMOTE 34.9mm
SEAT CLAMP
NEW MX-95RT ALLEN KEY TYPE
FEATURES
Utility Mount Under the Top Tube for additional storage
Clearance for 2.6” tires (Brand and model dependent)
SRAM UDH Hanger Standard
Tubeless Ready Rims and Tires across the range
Progressive Trail Geometry
Internal cable routing
630Wh removable battery
100Nm, 350W Motor
MOTOR SPECS
Weight: 2.8 Kg
Construction: Gear Drive
Shaft Standard: ISIS
Rated Power: 350 W
RPM: 120
Max Torque: 100 Nm
Max efficiency: ≥80%
Compact and lightweight
High precision torque sensor
ANANDA RIDE APP FEATURES
Bike Localization
This feature lets you track your bike's exact location in real-time using your smartphone, helping you find it easily in crowded places or if it's stolen.
GPS / Navigation Function
This integrated GPS provides precise directions and optimizes routes for efficient navigation across different terrains and cityscapes, guiding you on any type of ride.
Power Tuning
You can customize your bike's motor output to match your riding style and terrain, giving you control over ride intensity and helping you maximize performance and battery life.
Data Recording and Analysis
This tool collects and analyzes ride data like speed, distance, and power usage, allowing you to improve your performance and achieve new personal bests.
Riding Activities Record
This feature logs all your rides, tracking metrics such as duration, distance, and calories burned, helping you monitor your progress and set future goals.
Motor Diagnostics
This tool checks your bike's motor for issues, ensuring it runs efficiently, extending its lifespan, and preventing unexpected failures.
To reduce production and delivery times the supplier sometimes have to make last-minute changes to product specifications. These updates may not always be reflected in the product descriptions or images on our website.
