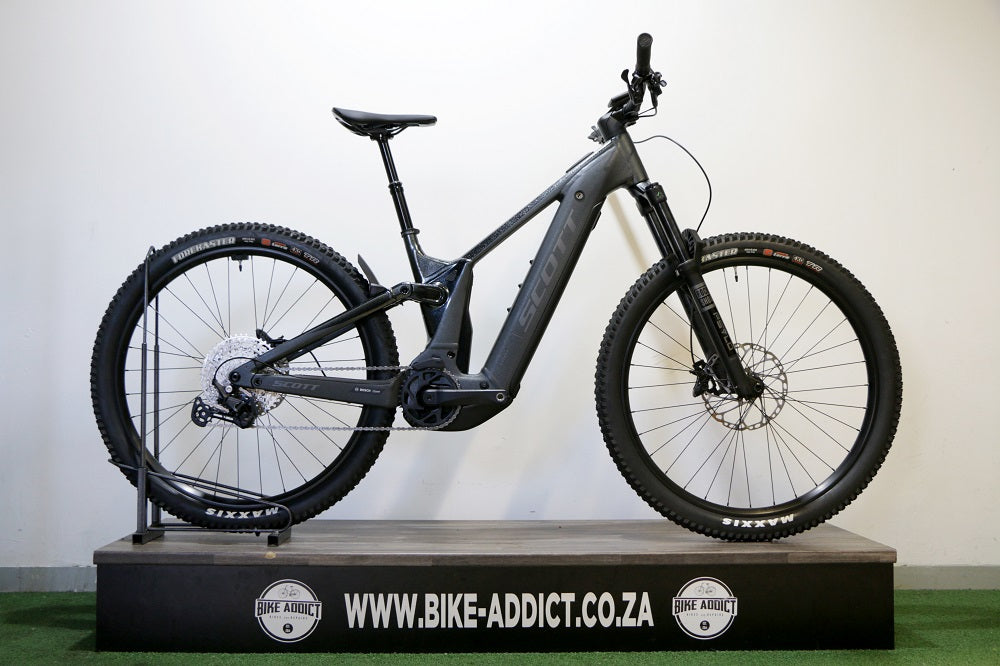

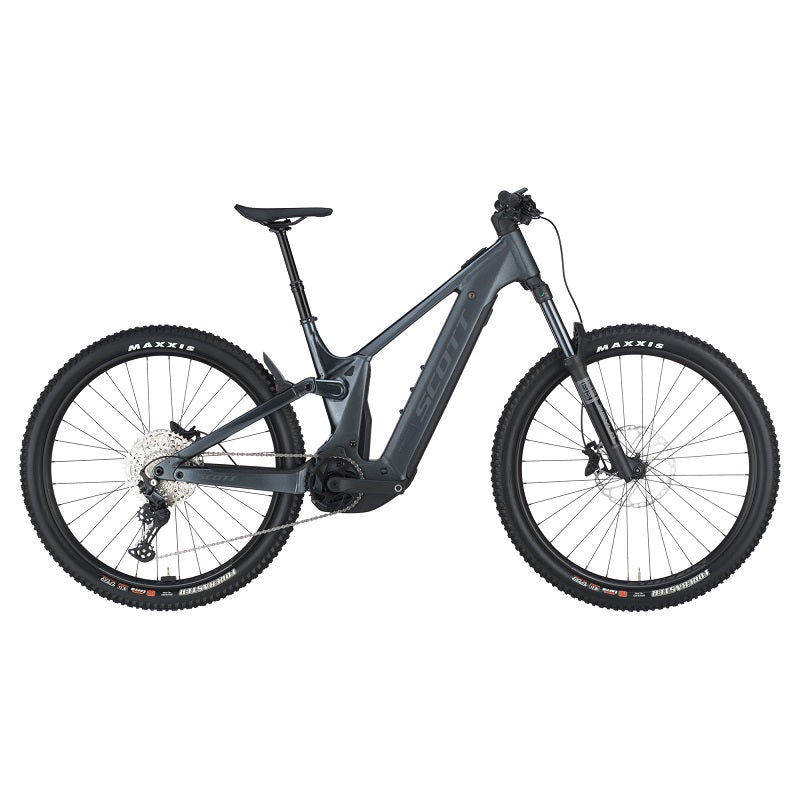

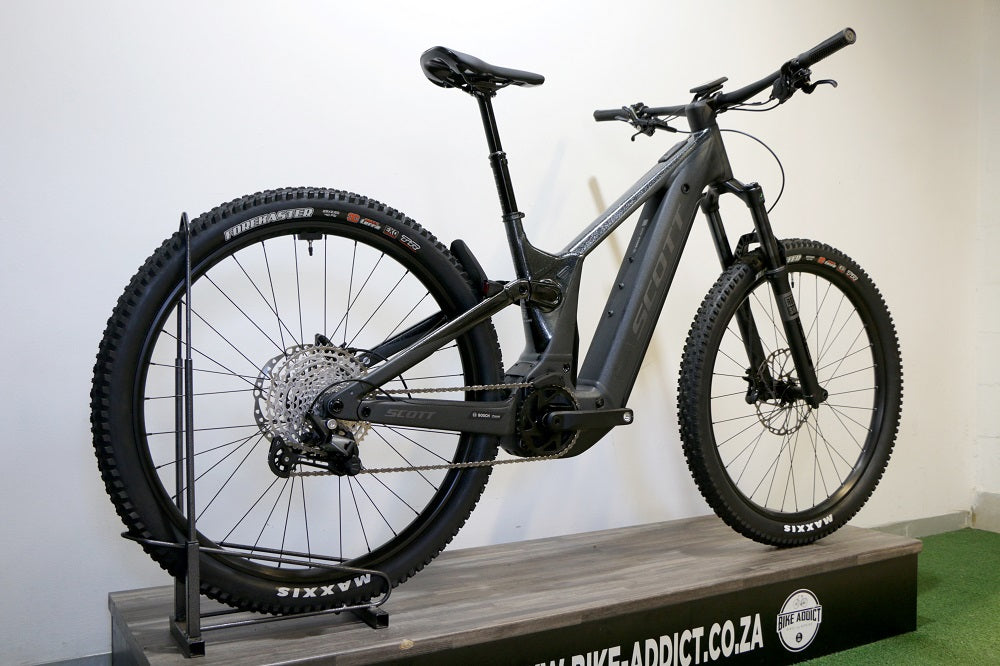

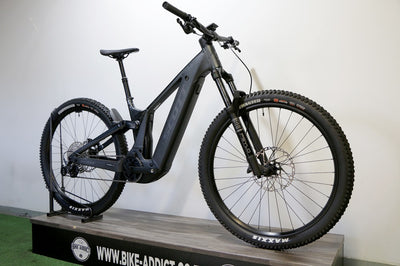

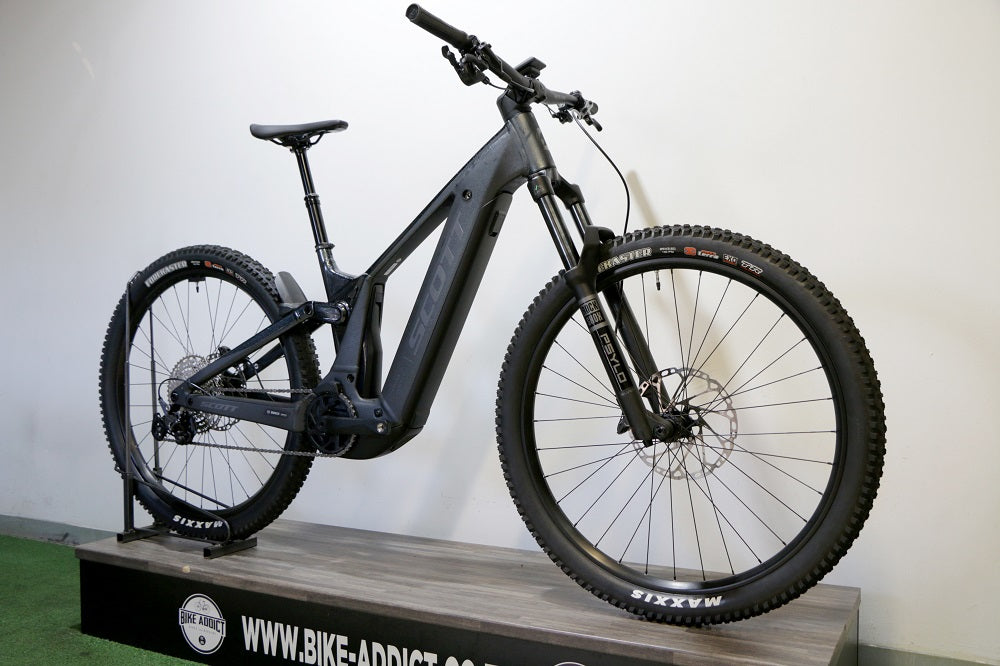

The strength of a powerlifter, with marathon endurance and the physique of a gymnast. For the mountain biker looking to unlock new zones and ride more terrain than ever, the ALL-NEW Patron eRIDE holsters the cutting edge of full-power moter and battery technology in a package built for singletrack domination. Harness the power. Master the trails.
Frame
Alloy Frame
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline
Bosch PowerMore Ready
Travel
Front: 150mm / Rear: 150mm
Fork

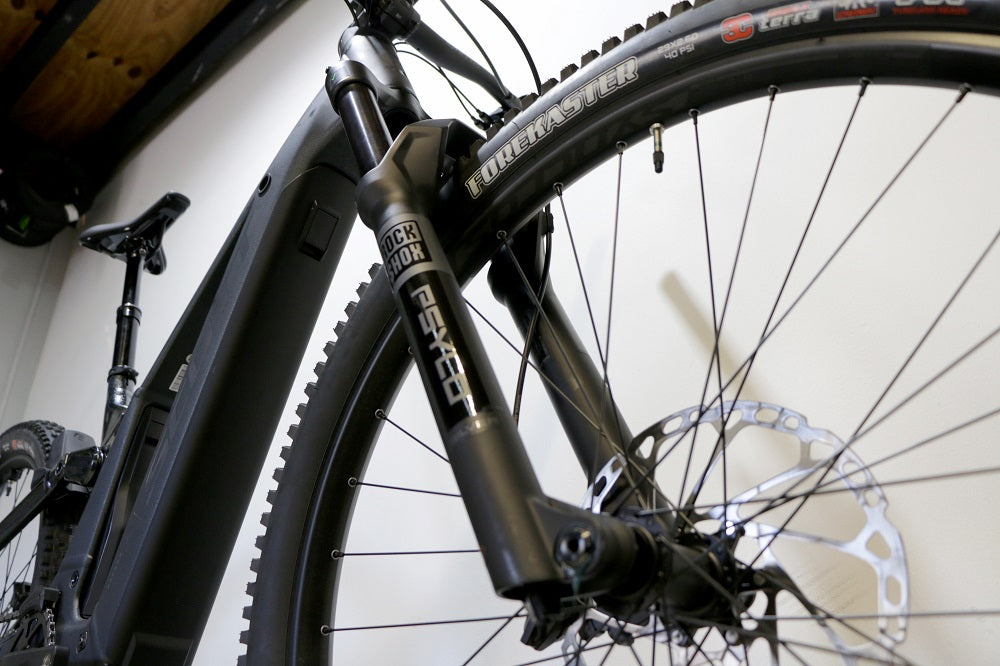

RockShox Psylo Silver RC Air / E-Bike / Comp & Reb Adj. / QR Axle 15x110mm axle
44mm offset / tapered steerer / 150mm travel
Rear Shock
X-Fusion NUDE 5 RLX Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Reb. Adj.
Travel 150-100-Lockout / T185X55mm
Remote System
SCOTT TracLoc 2 Technology
Suspension & Dropper Remote
3 modes
Drive Unit
Bosch Performance CX
32kmh
Battery
PowerTube 800Wh
Display
Bosch System Controller
Mini Remote & Intuvia 100
Charger
4A Charger
Rear Derailleur

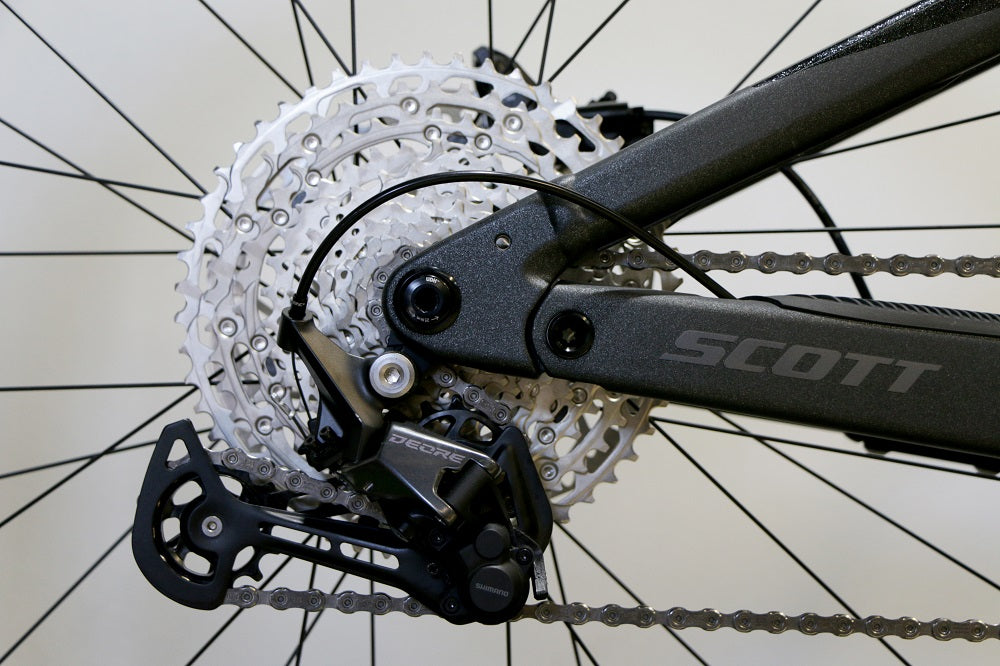

Shimano Deore RD-M6100 SGS
Shadow Plus / 12 Speed
Shifters
Shimano Deore SL-M6100-IR / Rapidfire Plus
Crankset

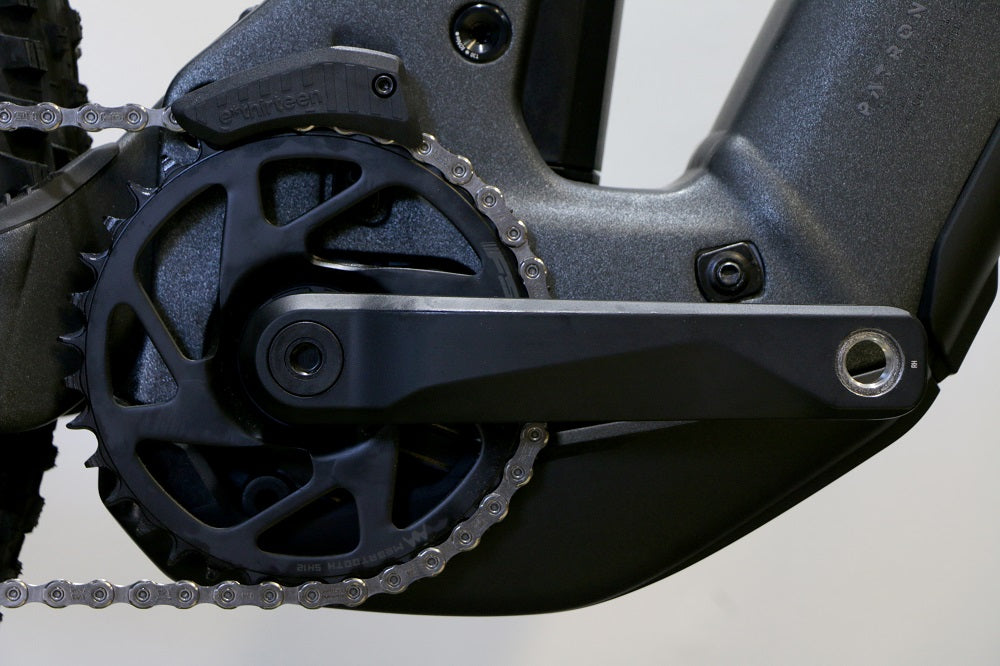

FSA Alloy
Chainguide
e*thirteen / e*spec Slider
Chainring
FSA 12 Speed 34T chainring
Chain
Shimano CN-M6100
Cassette
Shimano CS-M6100 / 10-51
Brakes
Shimano MT520 4 Piston Disc
Rotor
Front: SM-RT64 CL 220mm / Rear: SM-RT64 CL 203mm

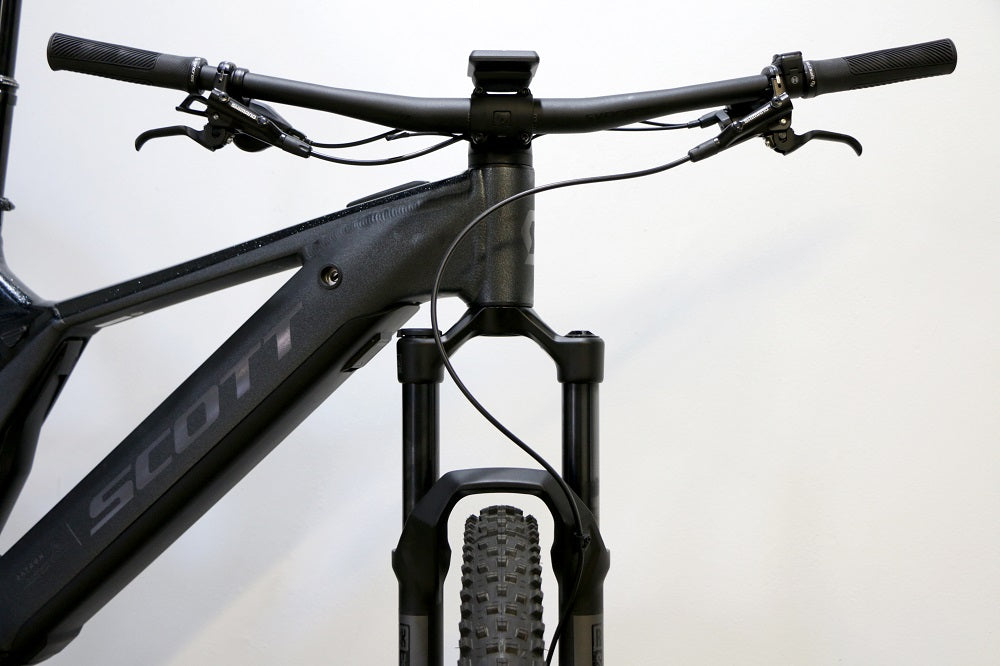

Handlebar
Syncros Hixon 2.0 Alloy 6061
Size S & M 15mm rise / Size L & XL 25mm rise / back sweep 8° / 780mm

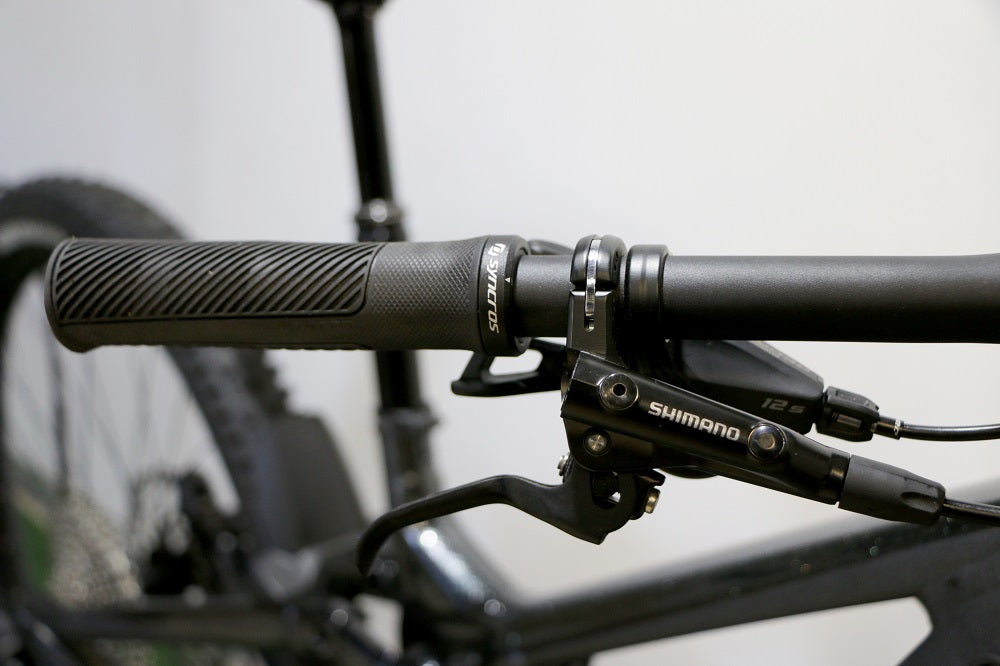

Syncros Endurance lock-on grips
H'stem
Syncros AM 2.0
Syncros Cable Integration System
4° rise / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost
Syncros Duncan Dropper Post 2.5
31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm
Seat

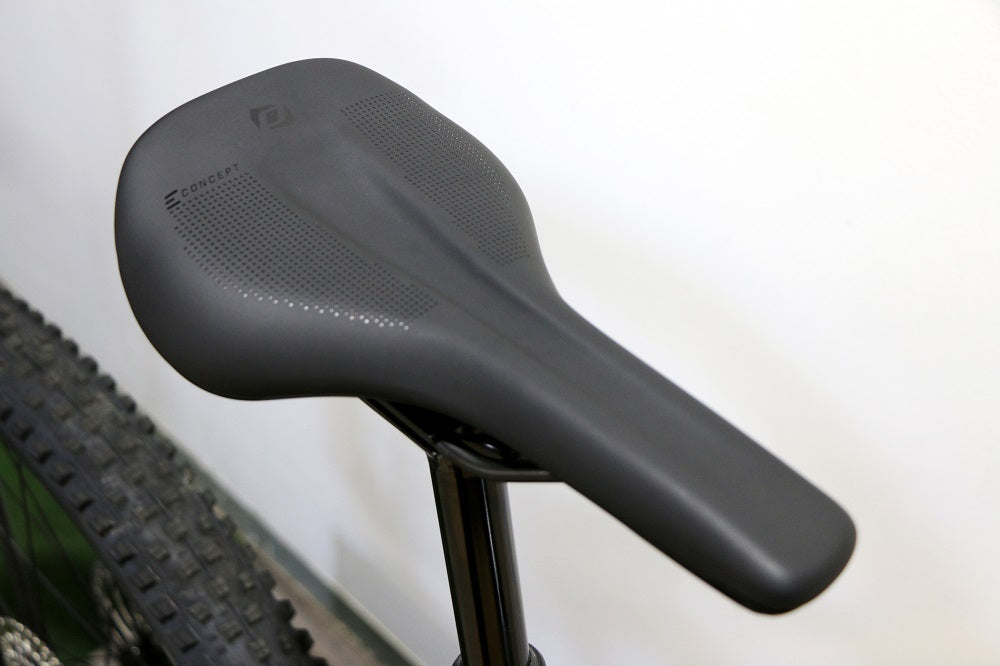

Syncros Tofino-E 2.5 Regular
Headset
Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
Hub (Front)
Formula CL-811 / 15x110mm
Hub (Rear)
Formula ECT-148M / Boost 148x12mm
Spokes
Stainless Black
Rims
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready
Front Tire
Maxxis Forekaster 29x2.6"
120TPI Foldable Bead
EXO / TR Tubeless ready
3C Maxx Terra
Rear Tire
Maxxis Forekaster 29x2.6"
120TPI Foldable Bead
EXO / TR Tubeless ready
3C Maxx Terra
Lights
Syncros integrated rear fender light
Front Light Cable pre-installed
Approx weight in KG
25.8
Approx weight in LBS
56.88
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
