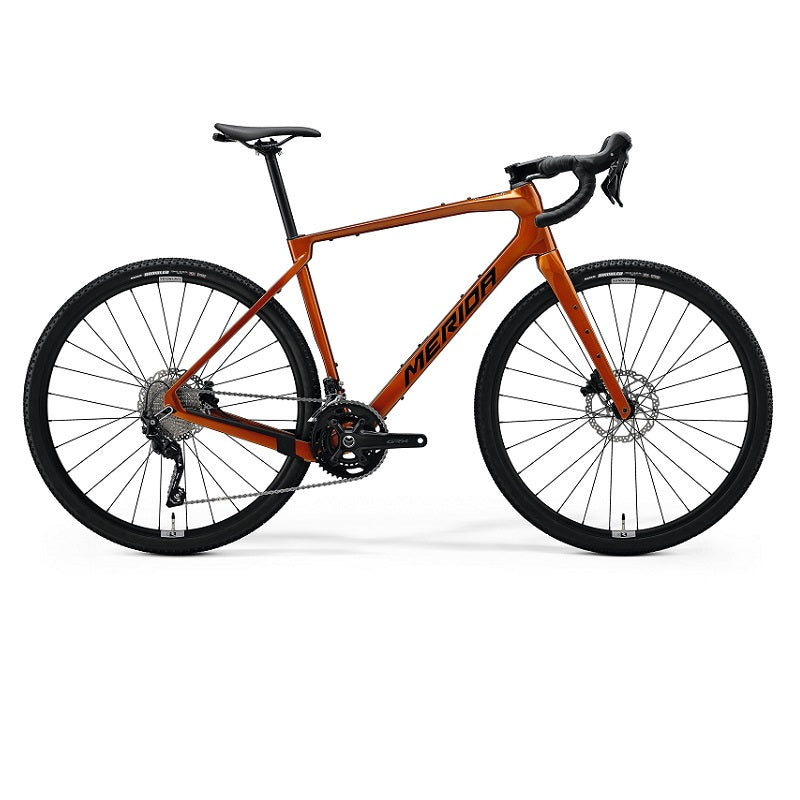

MERIDA Silex 4000 (2026)
FRAME
SILEX CF2 II
material: carbon
700x45C max.WHS
100x12/142x12mm axle standard
BSA bottom bracket standard
FORK
MERIDA SILEX II CF2
Tapered
material: carbon
700x47C max. wheelsize
BRAKES
Shimano GRX400
Disc
ROTORS
Shimano RT54
180mm
BRAKE LEVER
Shimano GRX 410
HEADSET
Acros ICR MERIDA external neck w/diecast splitring
HANDLEBAR
MERIDA EXPERT GR II
material: aluminium
400mm (XXS-XS-S) , 420mm (M) , 440mm (L/XL)
HANDLEBAR STEM
MERIDA TEAM CC III
material: aluminium
31.8mm diameter
-6°° stem angle
80 mm all sizes
GRIP
MERIDA ROAD EXPERT
DERAILLEUR (F)
Shimano GRX400
DERAILLEUR (R)
Shimano GRX400
SHIFTERS
Shimano GRX 400
disc
SEAT POST
MERIDA EXPERT SL
27.2mm diameter
0mm setback
Carbon
SEAT CLAMP
MERIDA EXPERT
SADDLE
MERIDA COMP SL
22% recycled material
V-mount
CHAIN
KMC X10
CRANK
Shimano GRX600
46-30 teeth
165mm-XXS/XS, 170mm S/M, 172,5mm L/XL
FREEWHEEL
Shimano Claris HG50
11-36 teeth
10 speed
BOTTOM BRACKET
Shimano BB-RS501
68mm
HUBS
Shimano TC500 / Shimano TC500-HM
100x12mm width front hub
28 spoke holes
Centerlock
12x142mm width rear hub
28 spoke holes
Centerlock
RIMS
Reynolds Duroc G30
622 28H
26mm inner width
17mm height
TYRE FRONT
Maxxis Rambler 45mm
700x45C
fold
TR
EXO
TYRE REAR
Maxxis Rambler 45mm
700x45C
fold
TR
EXO
AXLES
MERIDA EXPERT TR
SPOKES
Black stainless
APPROX. WEIGHT
10.1 kg
MAX. WEIGHT
120 kg
