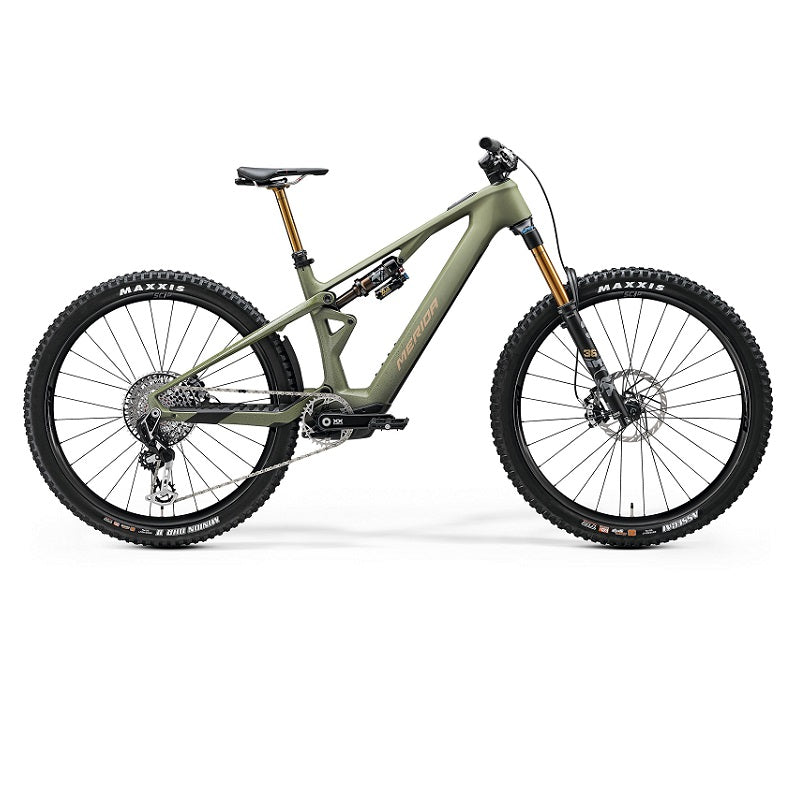

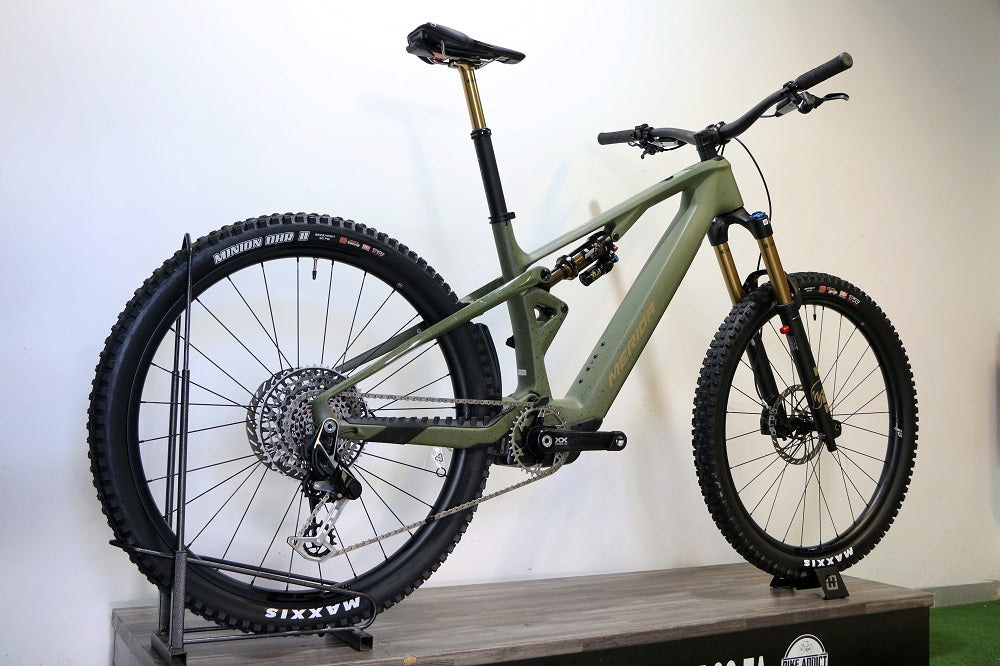

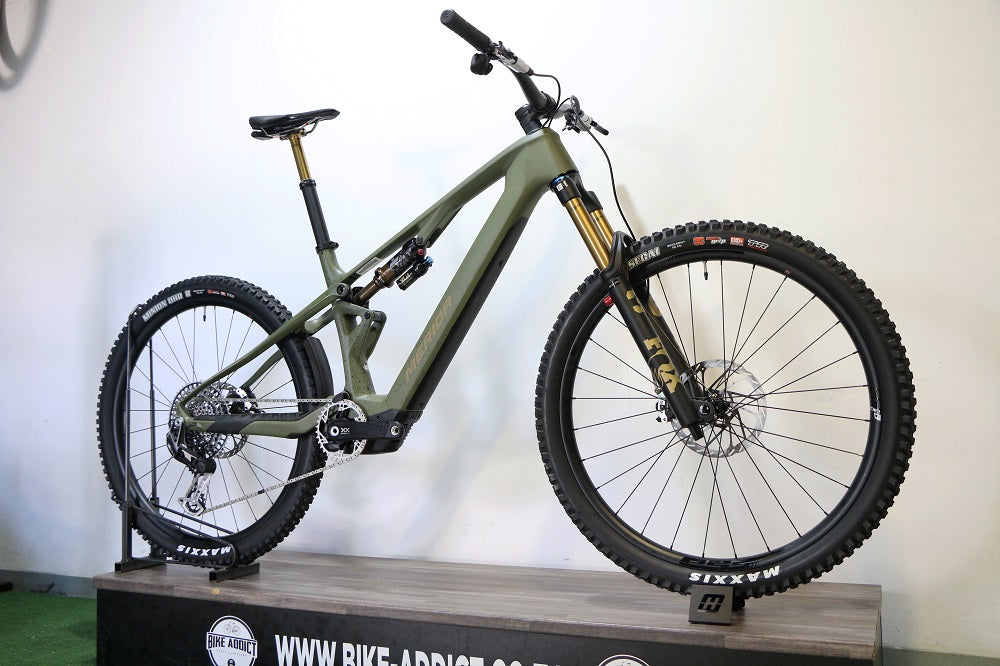

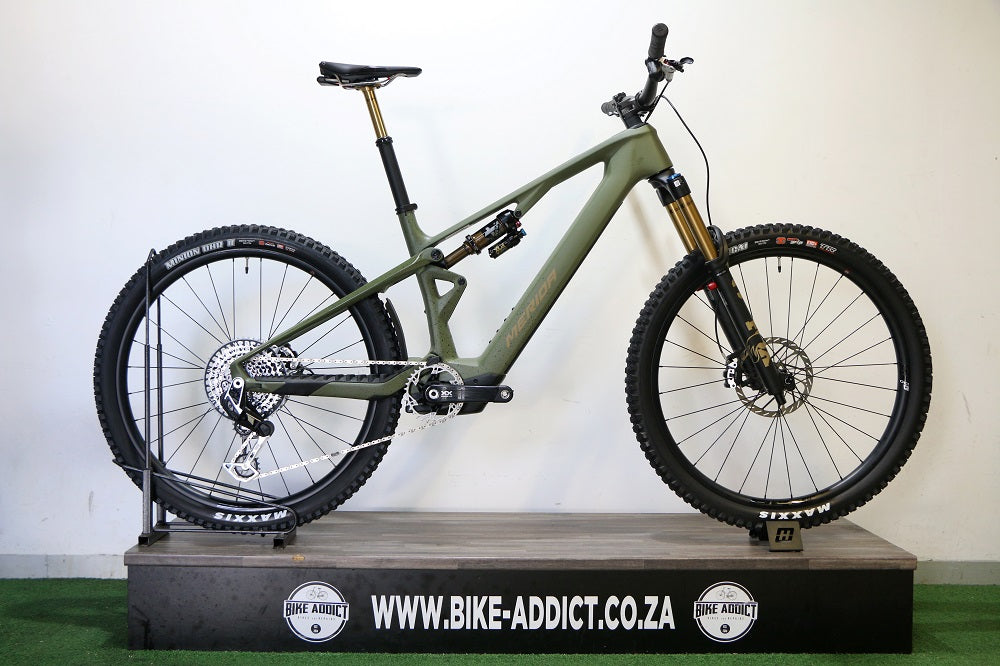

MERIDA eOne Sixty SL 10K (2026)

FRAME
eONE-SIXTY SL CF4 I
material: carbon
160mm suspension travel
29x2,4" max. wheelsize
148x12mm axle standard
fixed battery

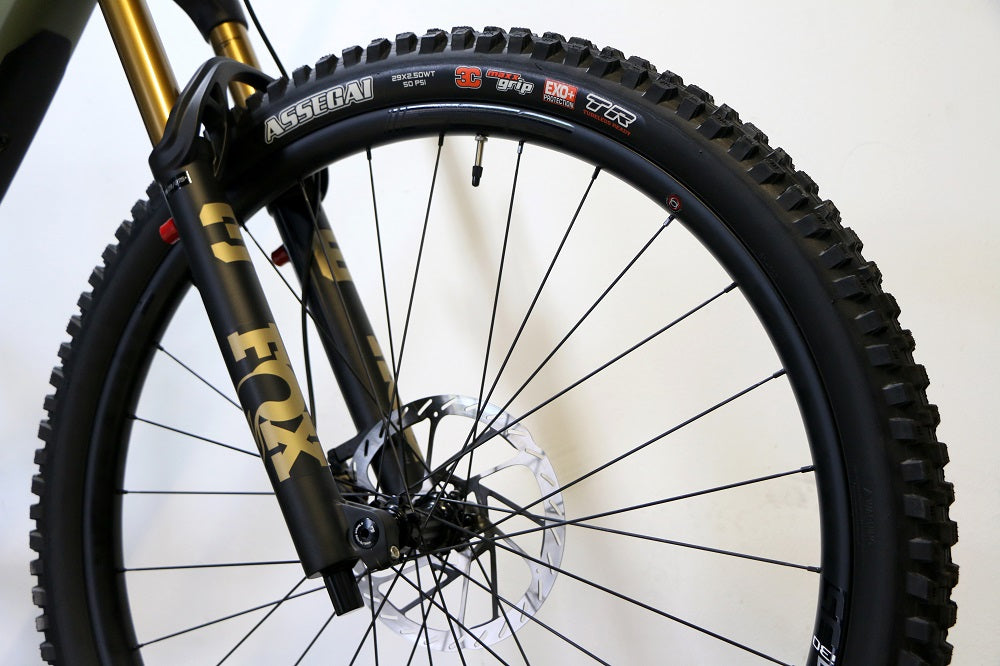

FORK
Fox 36 Float Factory
Air, 160mm suspension travel
Tapered
44mm fork offset
29x2.6" max wheelsize

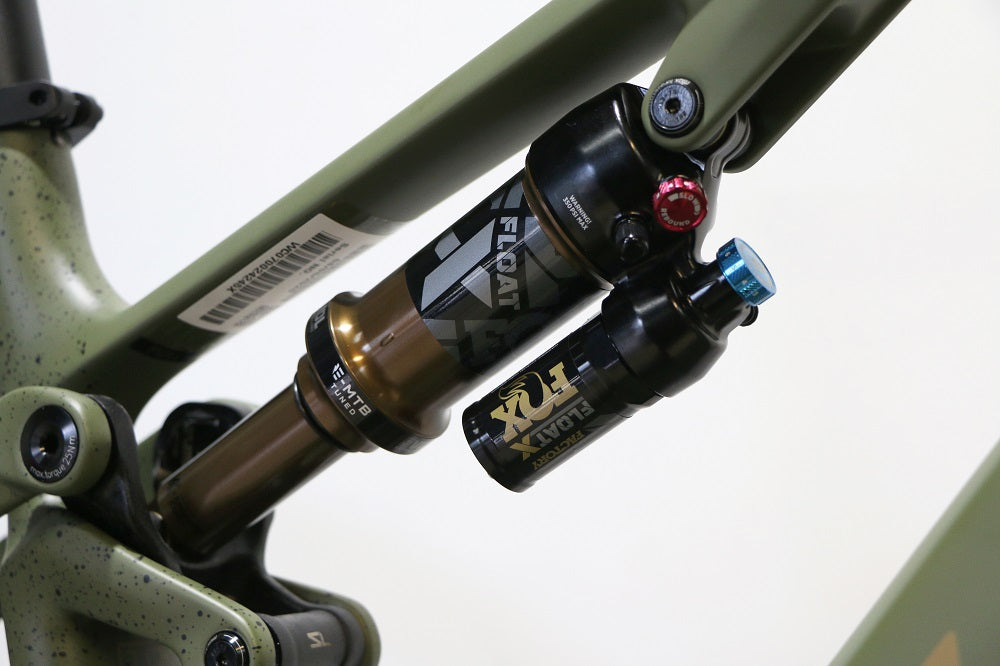

SHOCK
Fox Float X Factory
platform

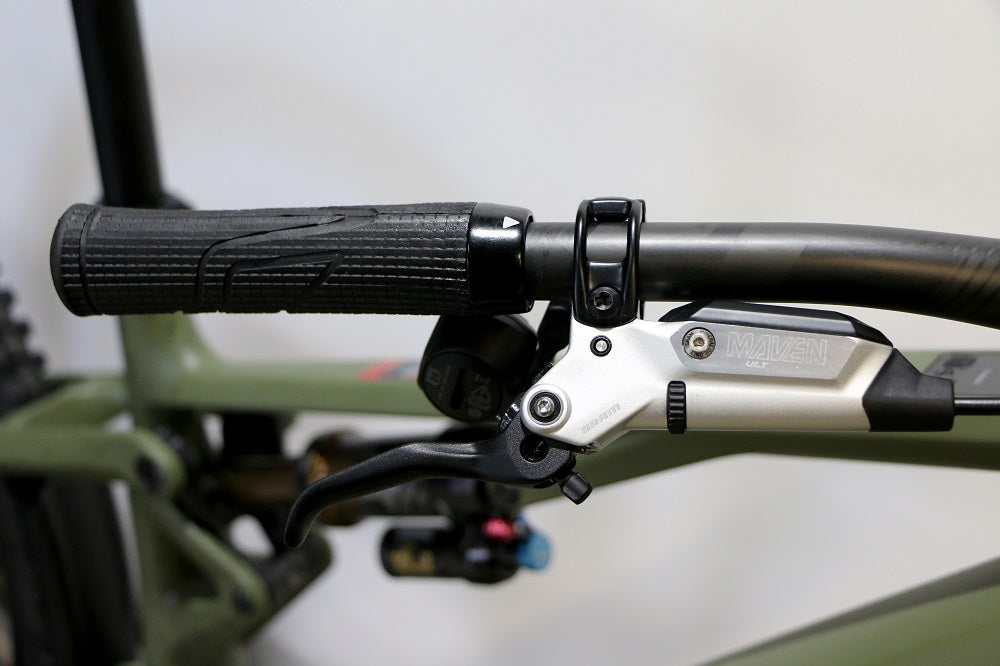

BRAKES
Sram Maven Ultimate
4 piston

ROTORS
Sram HS2
200mm

HEADSET
Acros ICR MERIDA INTEGRATED neck w/ Blocklock

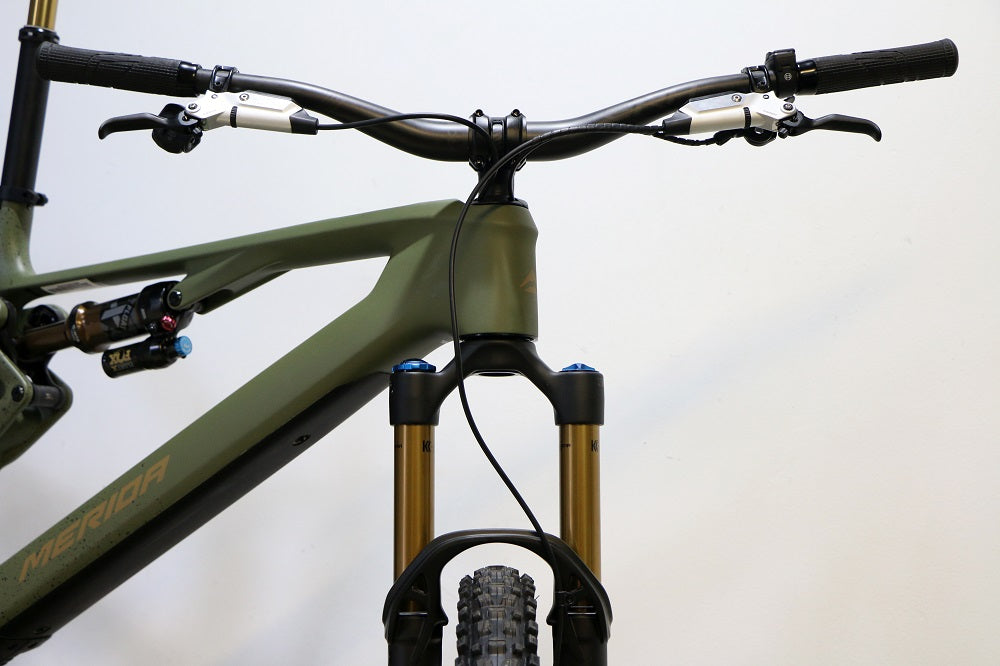

HANDLEBAR
Race Face Era
780mm width

HANDLEBAR STEM
MERIDA EXPERT eTR II
material: aluminium
35mm diameter
0° stem angle
Supernova mount
40 mm all sizes

GRIPS
MERIDA EXPERT EC

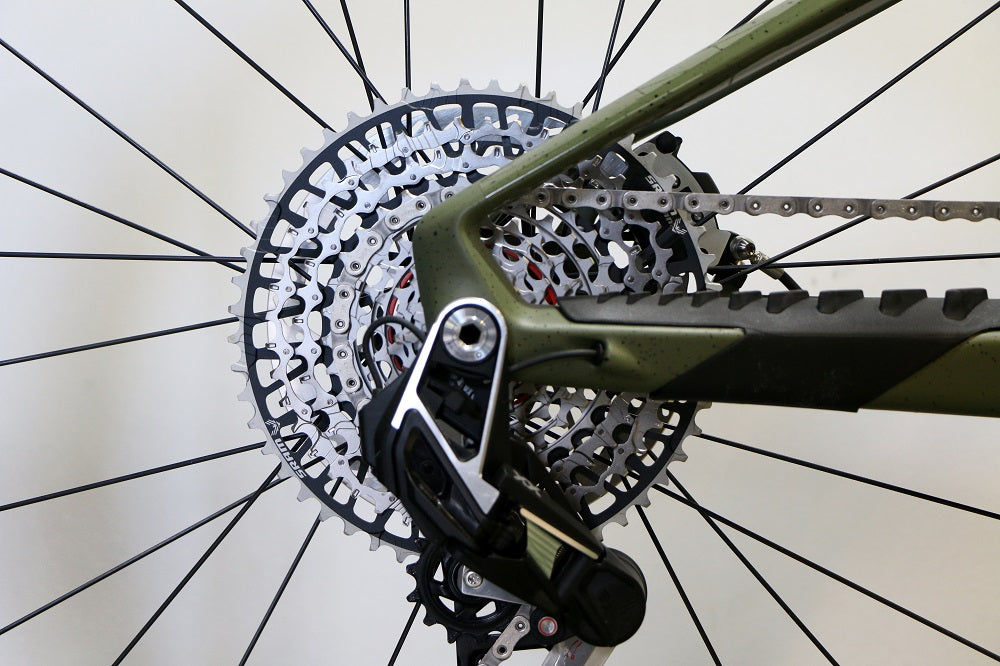

DERAILLEUR (R)
Sram XX Eagle Transmission AXS

SHIFTERS
Sram AXS Pod Ultimate Controller

SEAT POST
Fox Transfer Factory Series
34,9mm diameter
0mm setback

TRAVEL SEAT POST
XSHORT: 150mm, SHORT/MID: 180mm, LONG: 210mm, XLONG: 240mm

SEAT CLAMP
MERIDA EXPERT

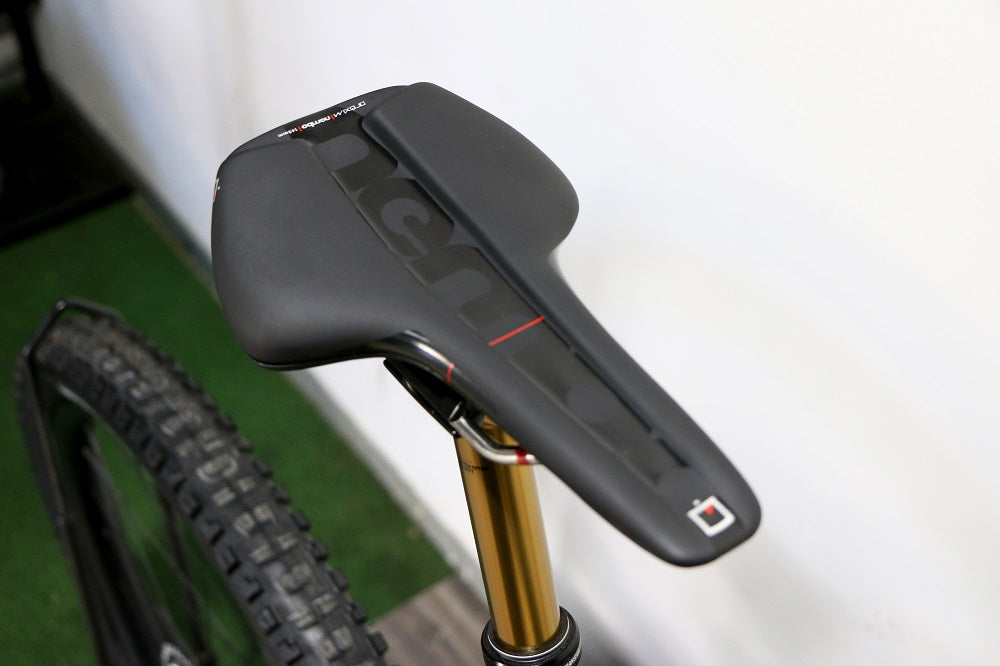

SADDLE
Proxim Nembo Tirox
V-mount adapter
incl. MERIDA minitool

CHAIN
Sram XX Eagle Transmission
Flattop

CHAINWHEEL
Sram XX Eagle Transmission E-MTB for BOSCH
34 teeth

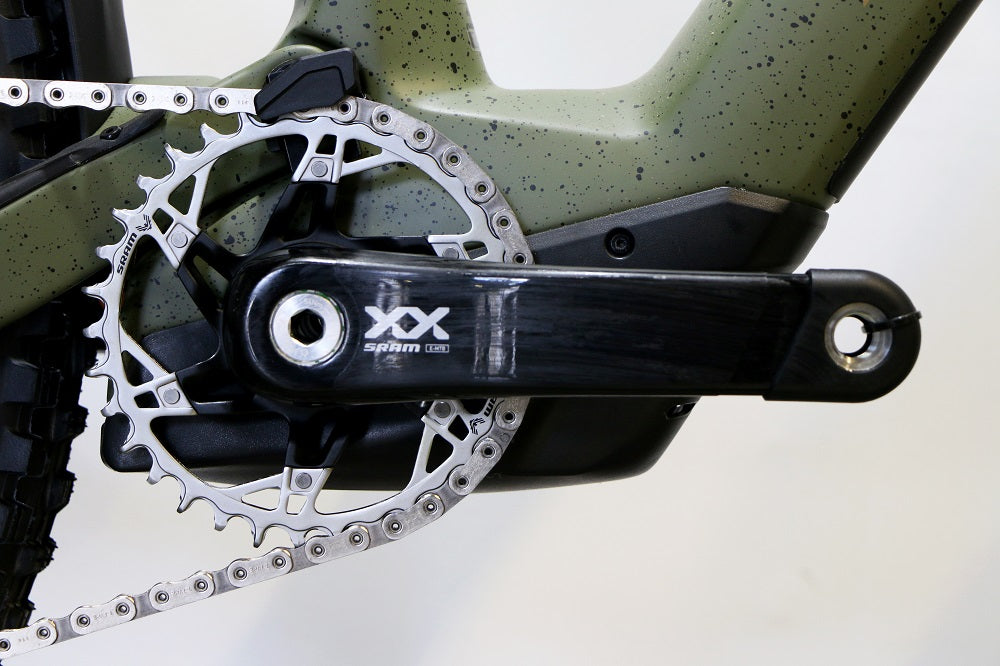

CRANK
Sram XX Eagle E-MTB Crank
165 mm for all sizes

FREEWHEEL
Sram XX Eagle Transmission
10-52 teeth
12 speed

WHEELSET
FSA SC i30 Carbon
110x15mm width front hub
148x12mm width rear hub
30mm inner width
6-Bolt
Sram XD
material: carbon
Tubeless ready (tubeless tape and valves included)

TYRE FRONT
Maxxis Assegai
29x2.5 "
fold
TR EXO+ 3C MaxxGrip

TYRE REAR
Maxxis Minion DHR II
29x2.4 "
fold
TR EXO+ 3C MaxxTerra

AXLES
MERIDA EXPERT TR
including removeable lever, 6/4mm allen key

LIGHT FRONT
USB rechargable Chance Good CG-119PG-BLACK(1)

LIGHT REAR
USB rechargable Chance Good CG-404RG-BLK

FENDER
RF-001 mini fender

DRIVE UNIT
Bosch Performance Line SX

BATTERY
Bosch CompactTube
400Wh

DISPLAY
Bosch Kiox 400C

APPROX. WEIGHT
19.7 kg

MAX. WEIGHT
140 kg
