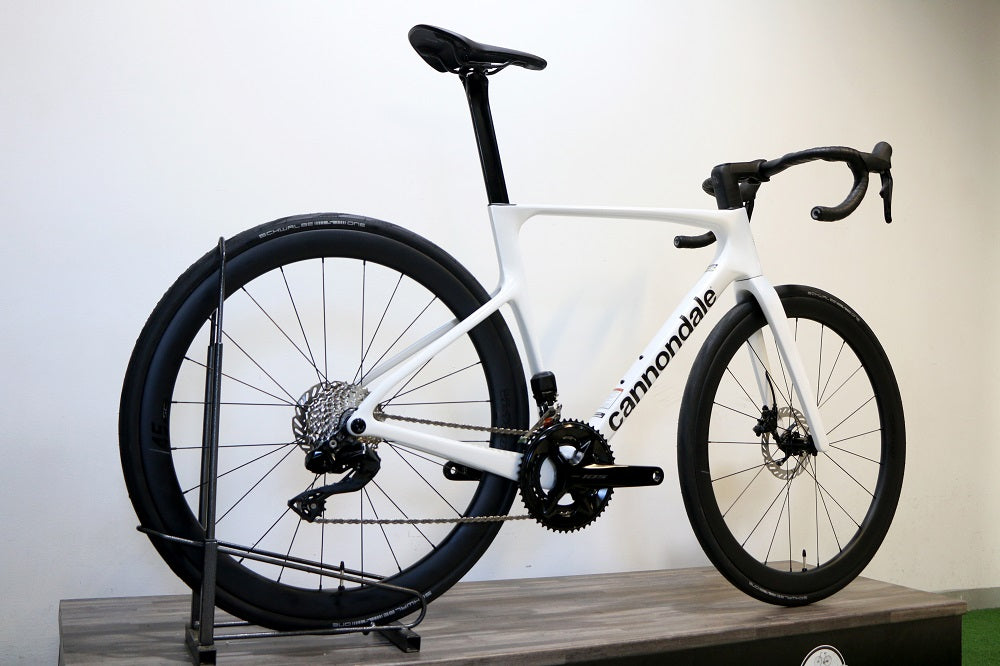

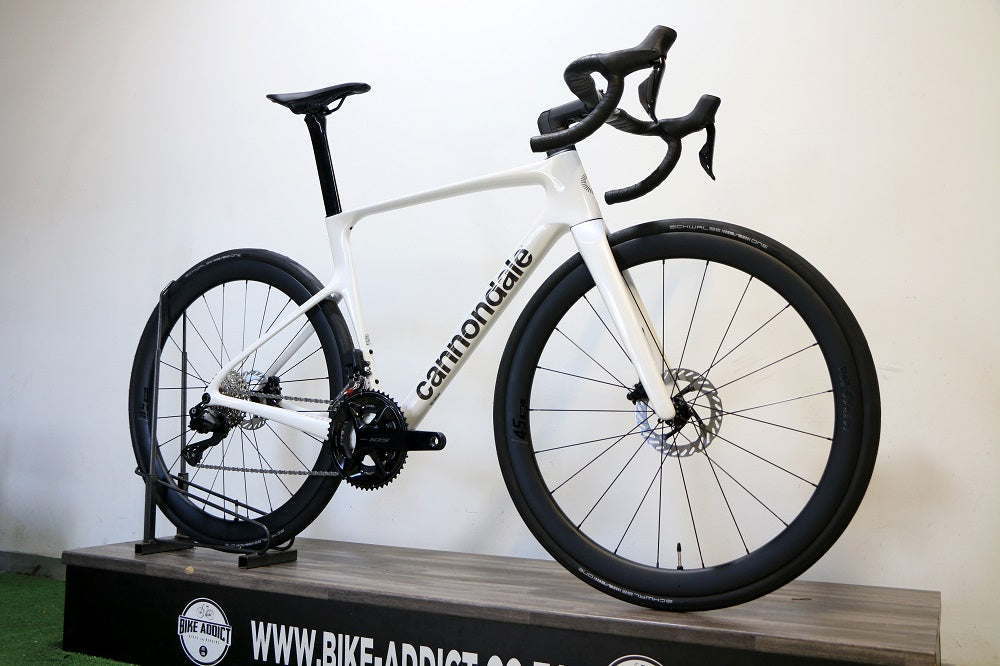

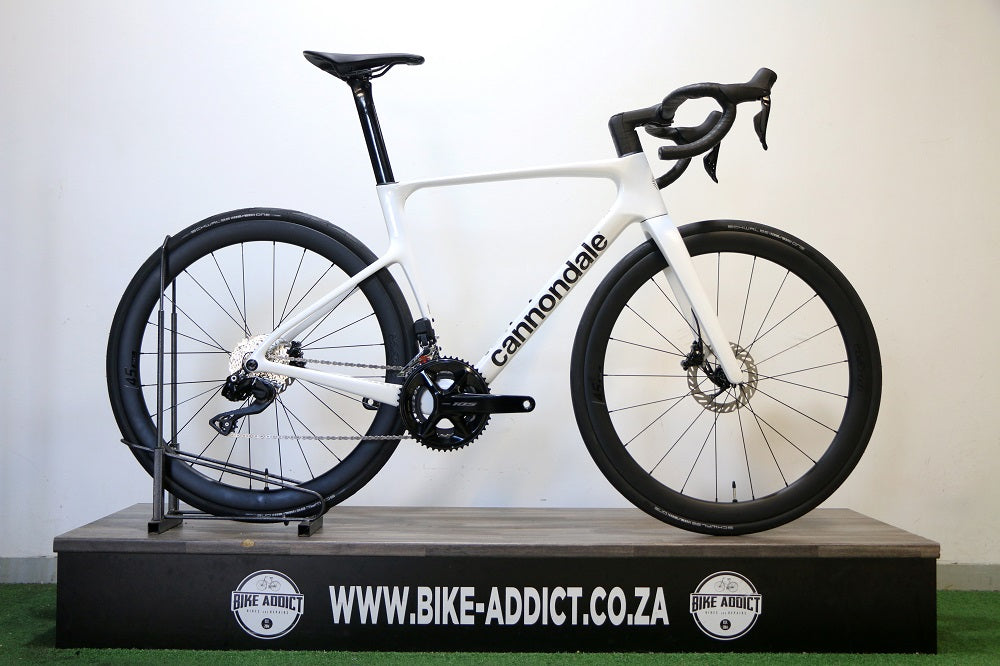

CANNONDALE SuperSix EVO 5 (2026)

Frame
SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH

Fork
SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)

Headset
Integrated, 1-1/8" - 1-1/4"

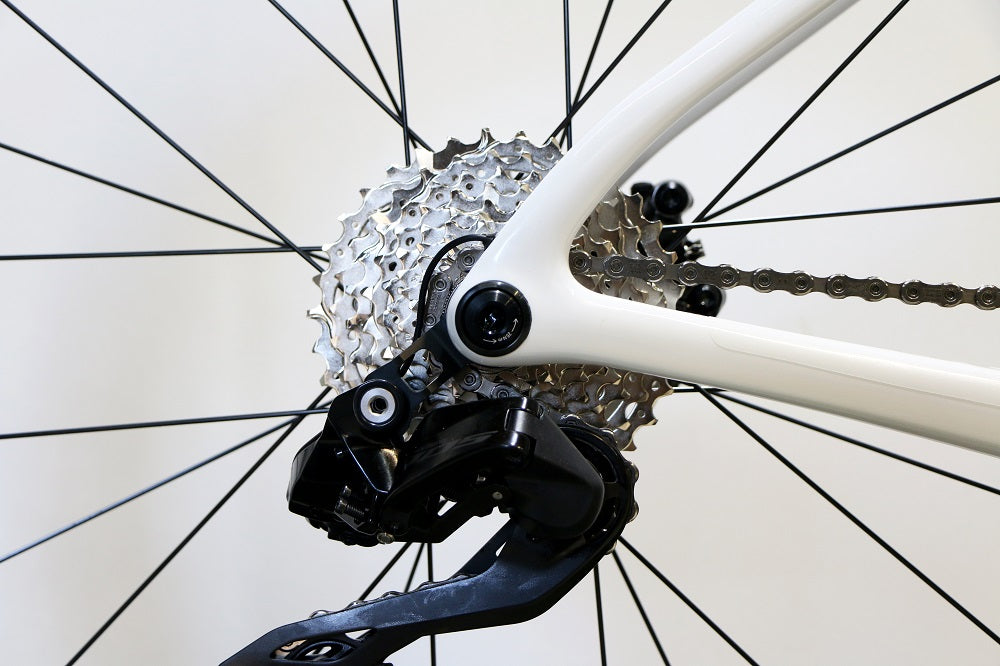

Rear Derailleur
Shimano 105 Di2 R7150, 12-speed

Front Derailleur
Shimano 105 Di2 R7170

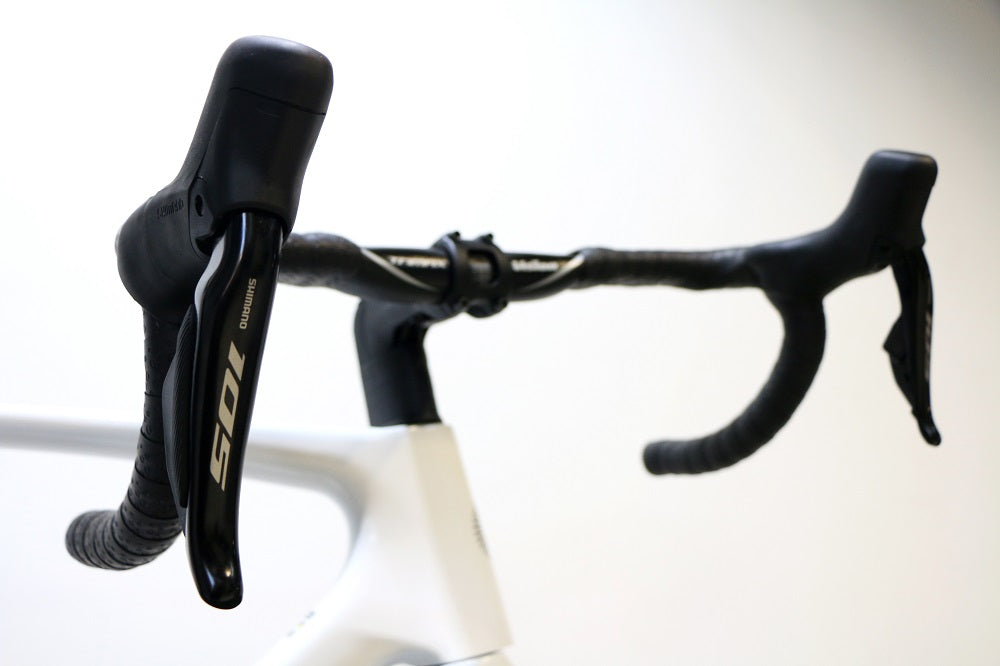

Shifters
Shimano 105 Di2 R7170, wireless, 2x12-speed

Chain
Shimano 105, 12-speed

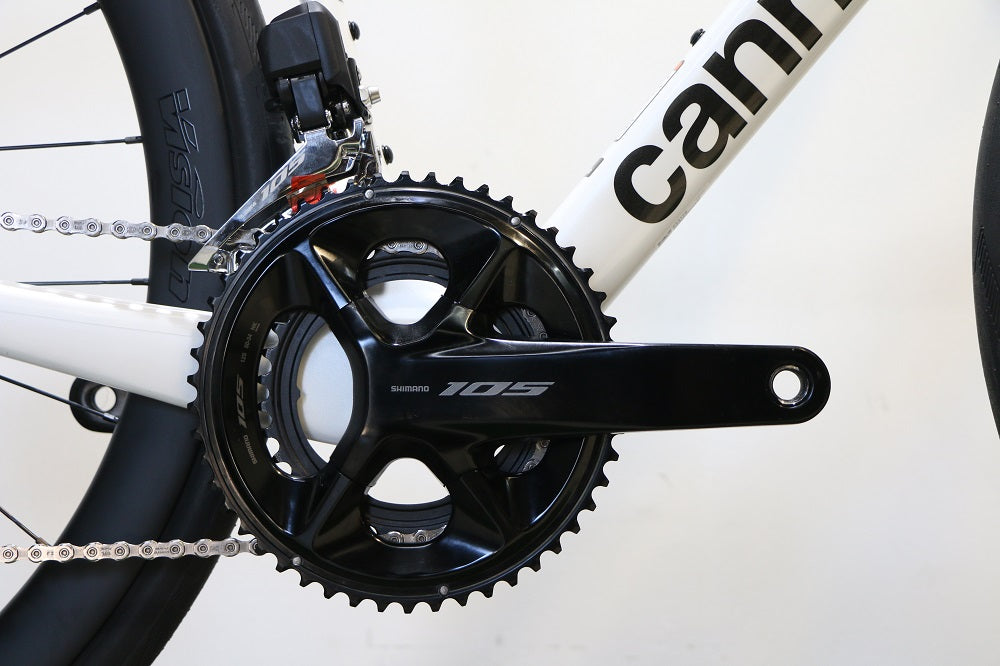

Crank
Shimano 105 7100, 50/34: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)

Rear Cogs
Shimano 105 R7100, 11-34, 12-speed

Bottom Bracket
Shimano BB-RS500, BSA 68

Brakes
Shimano 105 R7170 hydraulic disc, 160/160mm CL700 rotors

Brake Levers
Shimano 105 Di2 R7170 hydraulic disc

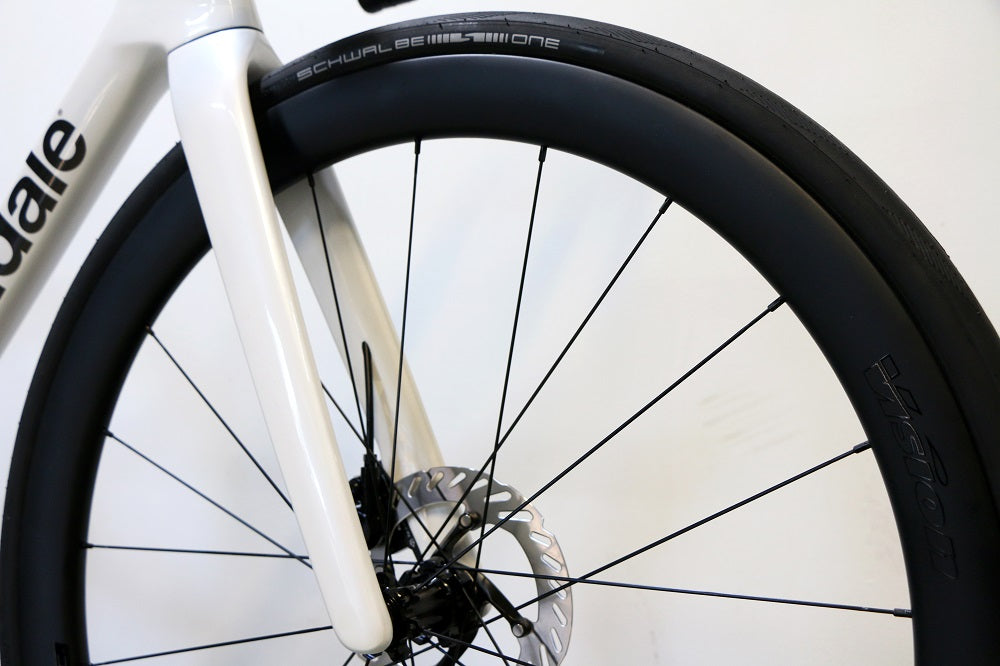

Rims
Vision SC45 I23, carbon, 23mm inner width, 45mm depth

Spokes
2:1 aero bladed direct pull

Tire Size
28

Wheel Size
700c

Hubs
Vision, centerlock, (F) 12x100mm, (R) Vision, 12x142mm

Tires
Schwalbe One TLR, 700x28c, tubeless ready

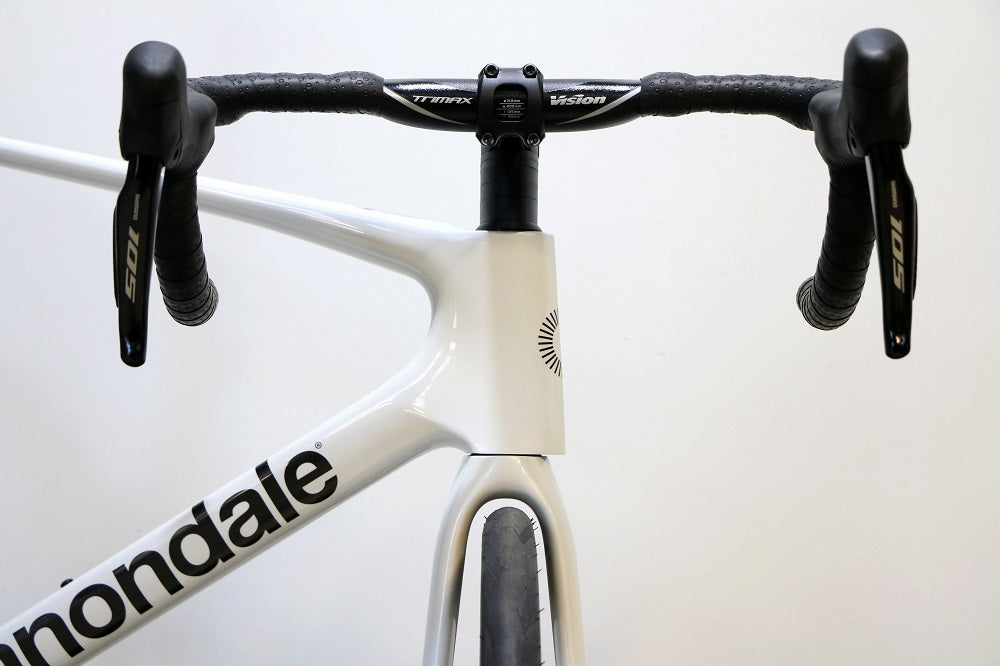

Handlebar
Vision Trimax Aero: 400mm (44-56), 420mm (58-61)

Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)

Grips
Cannondale Bar Tape, 3.5mm

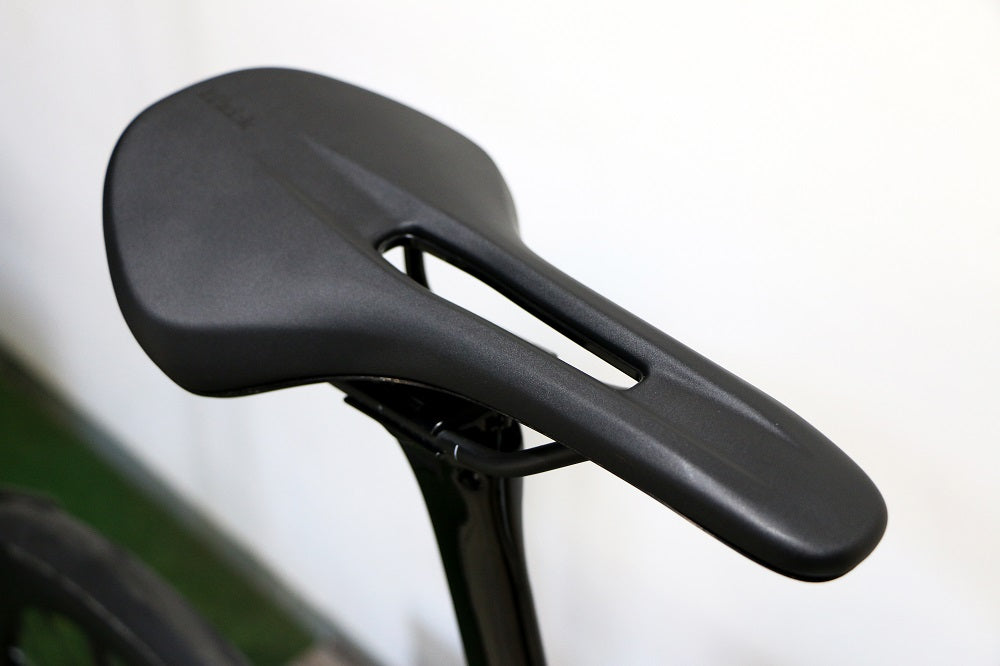

Saddle
Fizik Vento Antares R7, 140mm

Seatpost
Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
