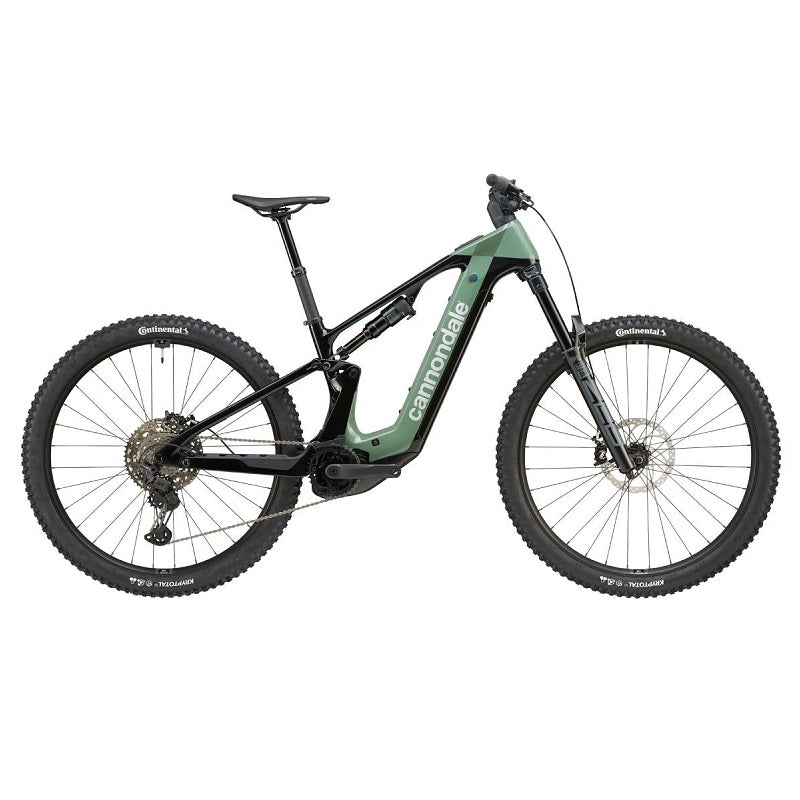

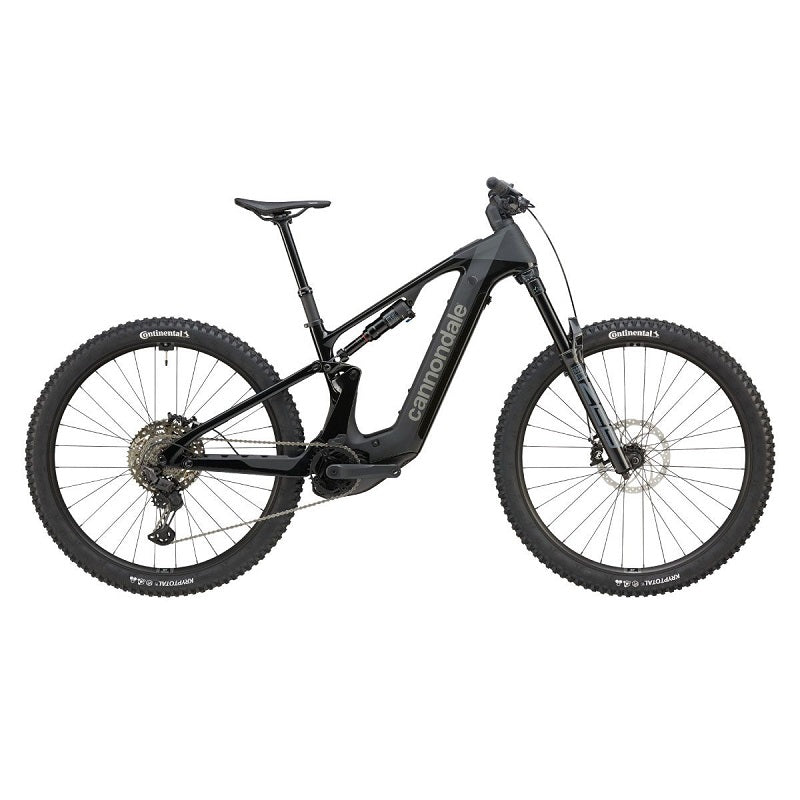

CANNONDALE Moterra Neo Carbon 2 (2026)

Frame
Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible

Fork
RockShox ZEB Select, 160mm, Charger RC, DebonAir+, 15x110mm Maxle, 44mm offset

Headset
Acros ICR, 1.5" to 1.8", sealed bearings

Rear Shock
RockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230x62.5mm

Drive Unit
Bosch Performance Line CX

Battery
Bosch PowerTube, 800Wh

Charger
Bosch 4A

Display
Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote

Rear Derailleur
Shimano XT M8130, LinkGlide

Shifters
Shimano CUES U8000, 11-speed, LinkGlide

Chain
Shimano LG500, LinkGlide, 11-speed

Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T

Rear Cogs
Shimano CUES LG700, LinkGlide, 11-50, 11-speed

Brakes
Magura MT5 4-piston hydraulic disc, 203mm Storm rotors

Brake Levers
Magura MT5 hydraulic disc

Rims
WTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless compatible

Spokes
DT Swiss Champion 2.0

Tire Size
2.4

Wheel Size
29

Hubs
(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock

Tires
(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable

Handlebar
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm

Stem
Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°

Grips
Cannondale TaperRidge

Saddle
Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail

Seatpost
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
