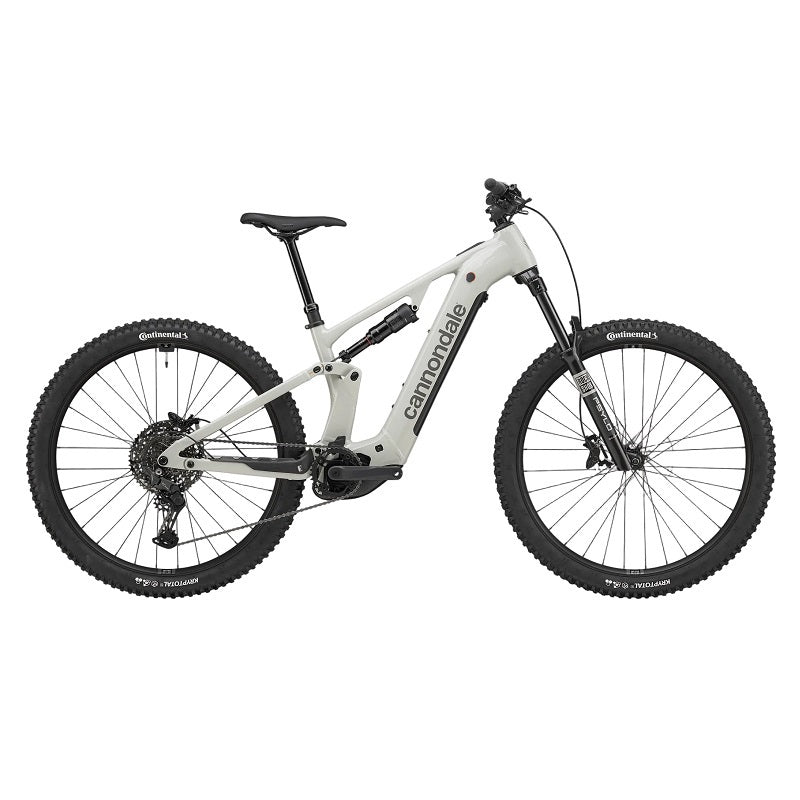

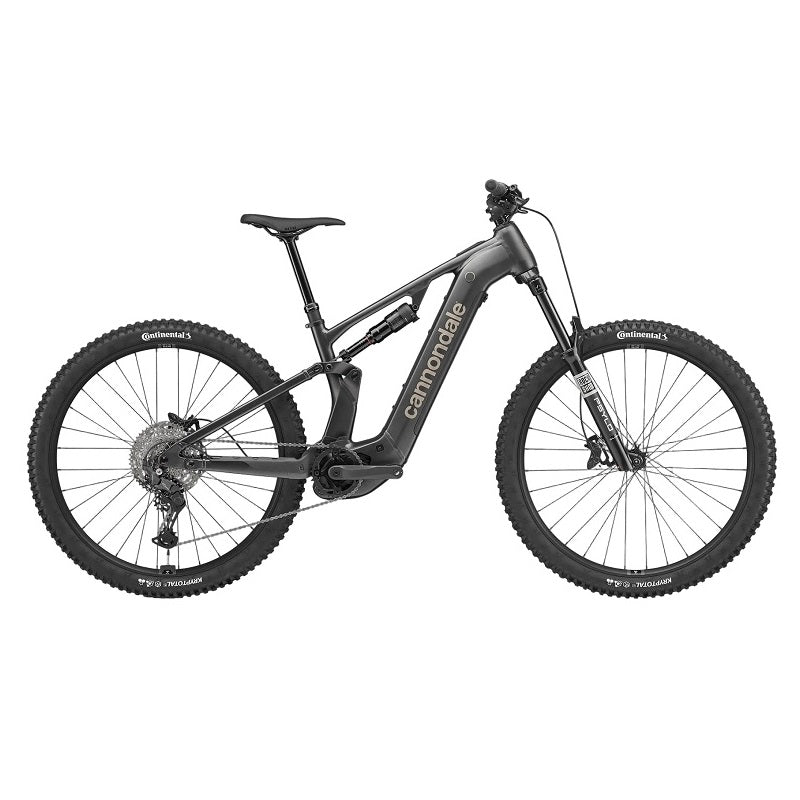

CANNONDALE Moterra Neo 3 (2026)

Frame
Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts

Fork
RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset

Headset
Acros ICR, 1.5" to 1.8", sealed bearings

Rear Shock
RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm

Drive Unit
Bosch Performance Line CX

Battery
Bosch PowerTube, 800Wh

Charger
Bosch 4A

Display
Bosch Purion 200

Rear Derailleur
Shimano CUES U6000, LinkGlide

Shifters
Shimano CUES U6000, 11-speed, LinkGlide

Chain
Shimano LG500, LinkGlide, 11-speed

Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T

Rear Cogs
Shimano CUES LG400, LinkGlide, 11-50, 11-speed

Brakes
Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors

Brake Levers
Shimano MT501 hydraulic disc

Rims
WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible

Spokes
DT Swiss Champion 2.0

Tire Size
2.4

Wheel Size
29

Hubs
(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock

Tires
(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable

Handlebar
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm

Stem
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°

Grips
Cannondale TaperRidge

Saddle
WTB Silverado Medium

Seatpost
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
