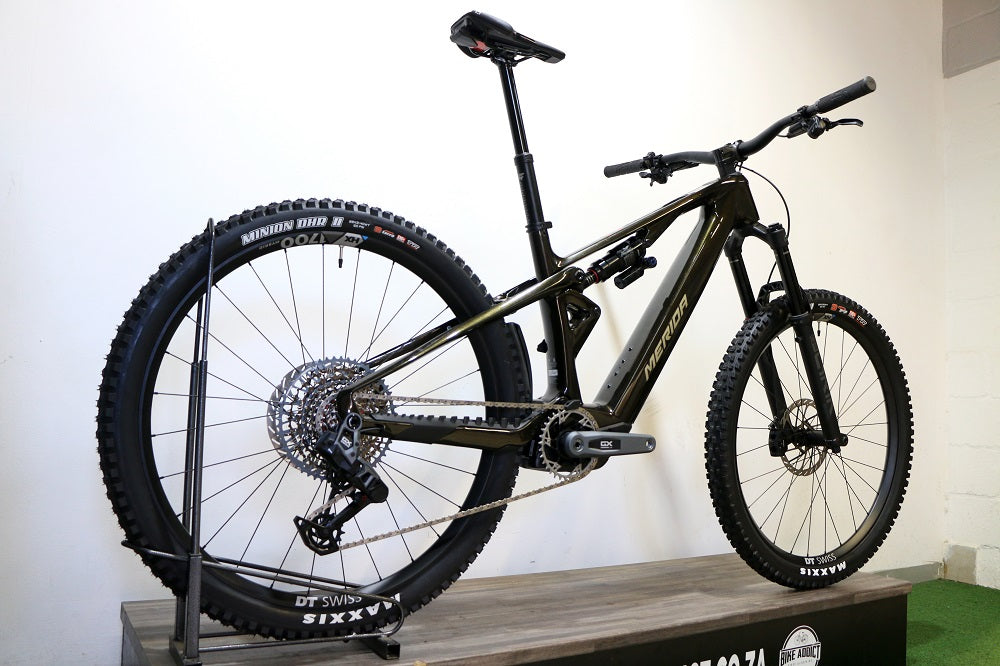

MERIDA eOne Sixty SL 8000 (2026)

FRAME
eONE-SIXTY SL CF4 I
material: carbon
160mm suspension travel
29x2,4" max. wheelsize
148x12mm axle standard
fixed battery

FORK
Rock Shox Lyric Select+ eMTB
Air
160mm suspension travel: Tapered
44mm fork offset
29x2.6" max wheelsize

SHOCK

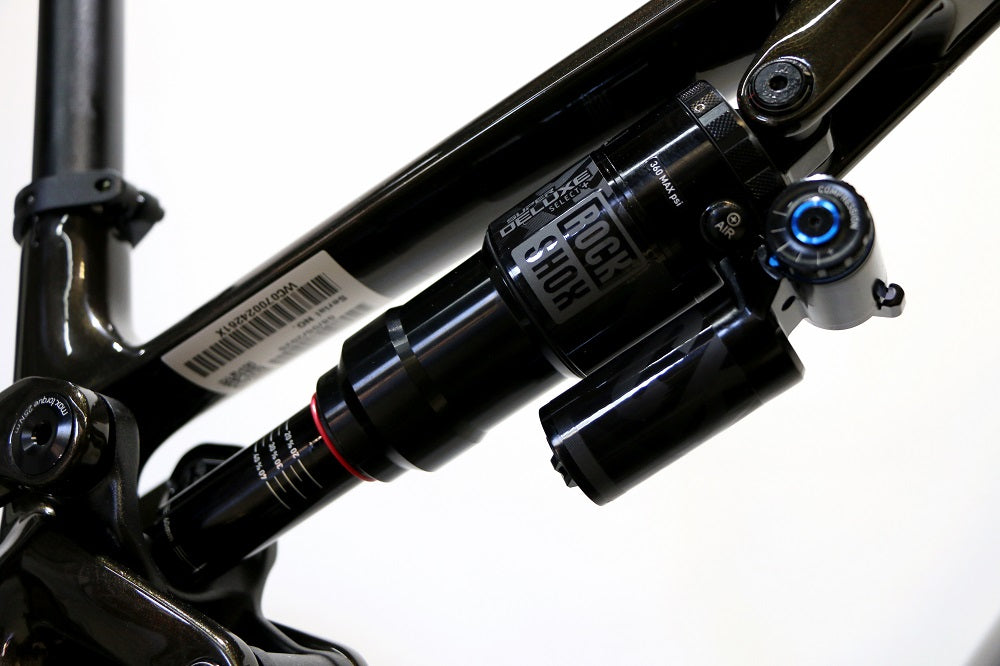

Rock Shox Super Deluxe Select+
platform

BRAKES

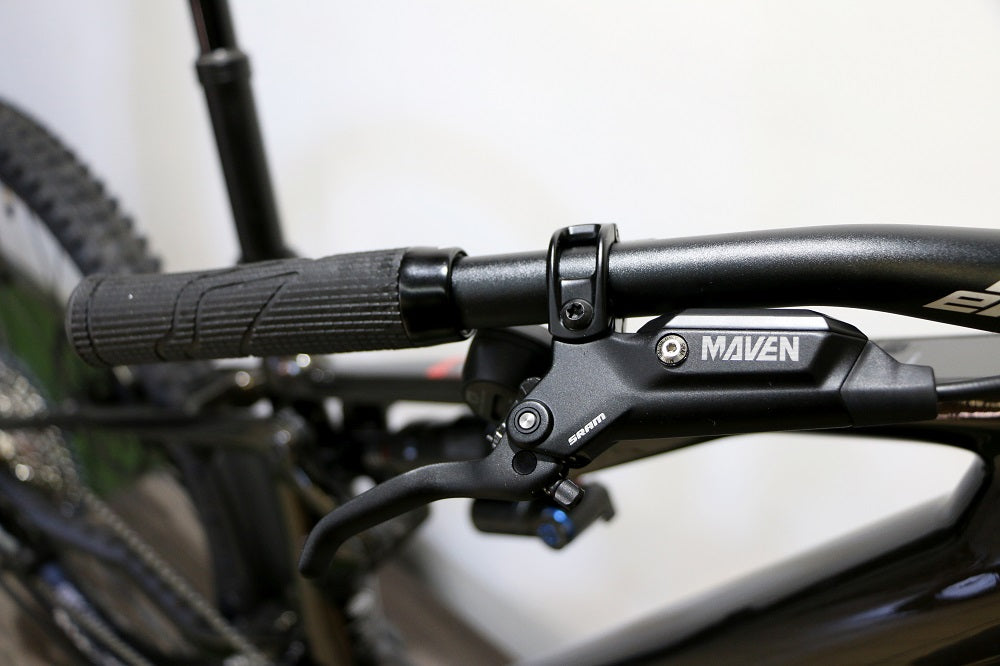

Sram Maven Base
4 piston

ROTORS
Sram HS2
200mm

HEADSET
Acros ICR MERIDA INTEGRATED neck w/ Blocklock

HANDLEBAR

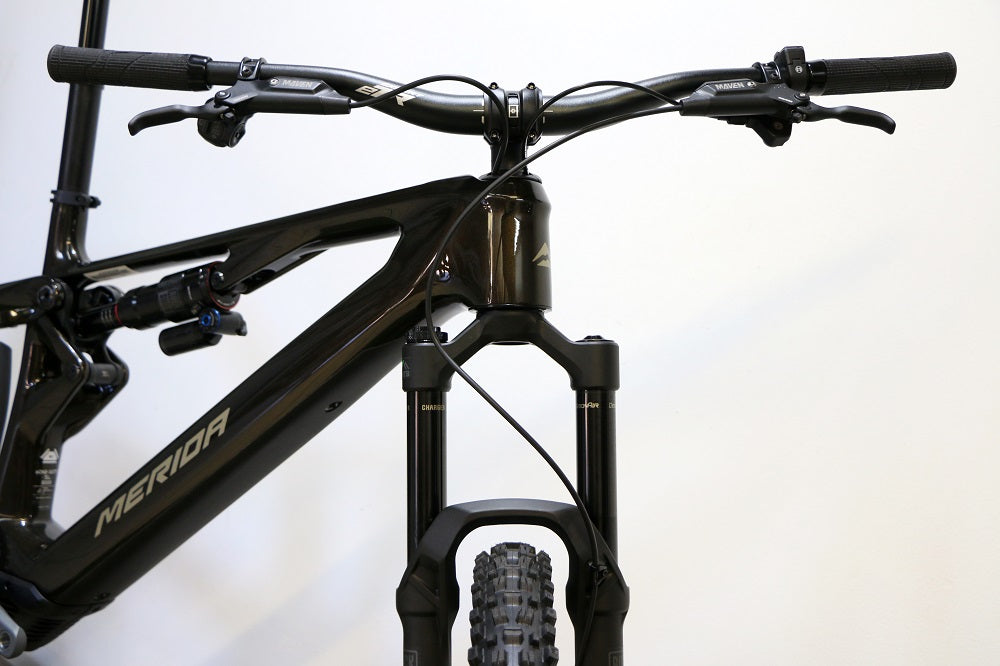

MERIDA EXPERT eTR
780mm width

HANDLEBAR STEM
MERIDA EXPERT eTR II
material: aluminium
35mm diameter
0° stem angle
Supernova mount
40 mm all sizes

GRIPS
MERIDA EXPERT EC

DERAILLEUR (R)

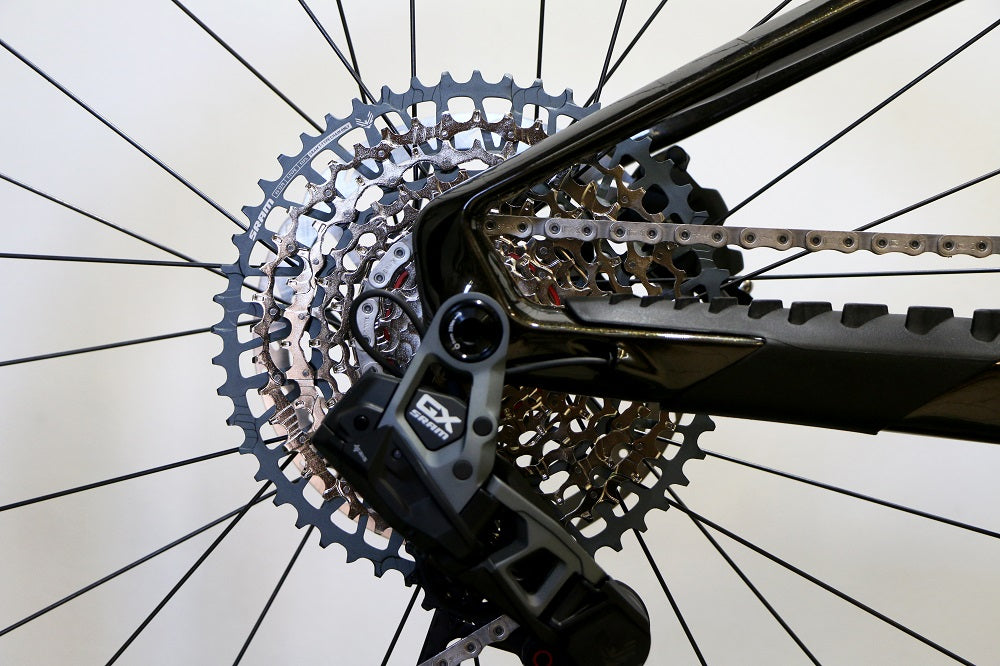

Sram GX Eagle Transmission AXS

SHIFTERS
Sram dropper lever MMX / Sram AXS Pod Controller

SEAT POST
MERIDA COMP TR III
34.9mm diameter
0mm setback *

SEAT CLAMP
MERIDA EXPERT

SADDLE
Proxim Nembo
V-mount adapter
incl. MERIDA minitool

CHAIN
Sram GX Eagle Transmission
Flattop

CHAINWHEEL
Sram XX Eagle Transmission E-MTB for BOSCH
34 teeth

CRANK

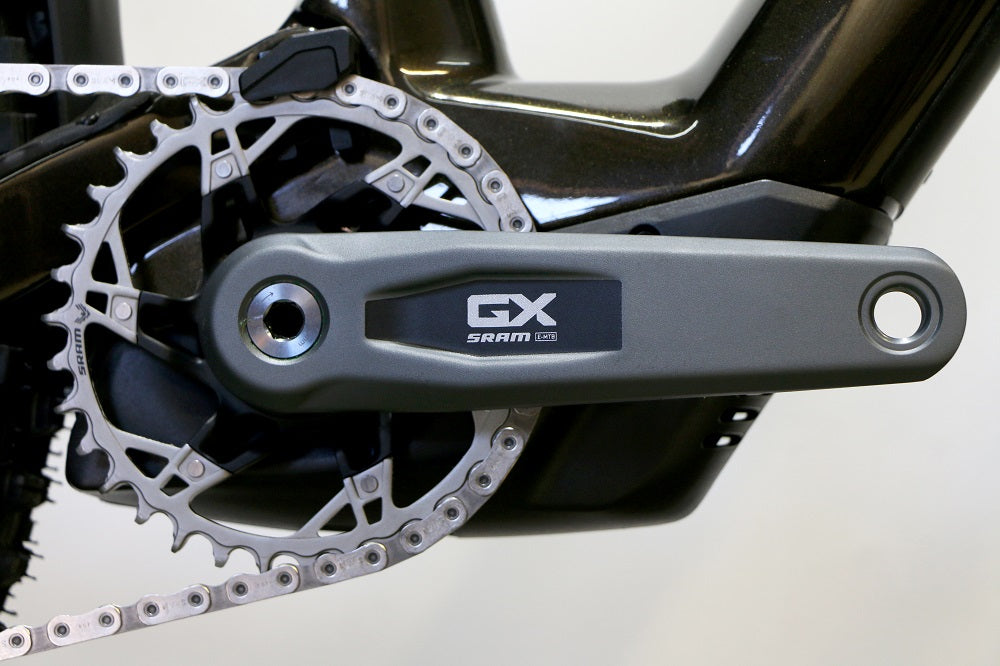

Sram GX Eagle E-MTB Crank
165 mm for all sizes

FREEWHEEL
Sram XS-1275 T-TYPE
10-52 teeth
12 speed

WHEELSET
DT Swiss HX 1700
110x15mm width front hub
148x12mm width rear hub
30mm inner width
6-Bolt
SRAM XD
material: aluminium
Tubeless ready (tubeless tape and valves included)

TYRE FRONT

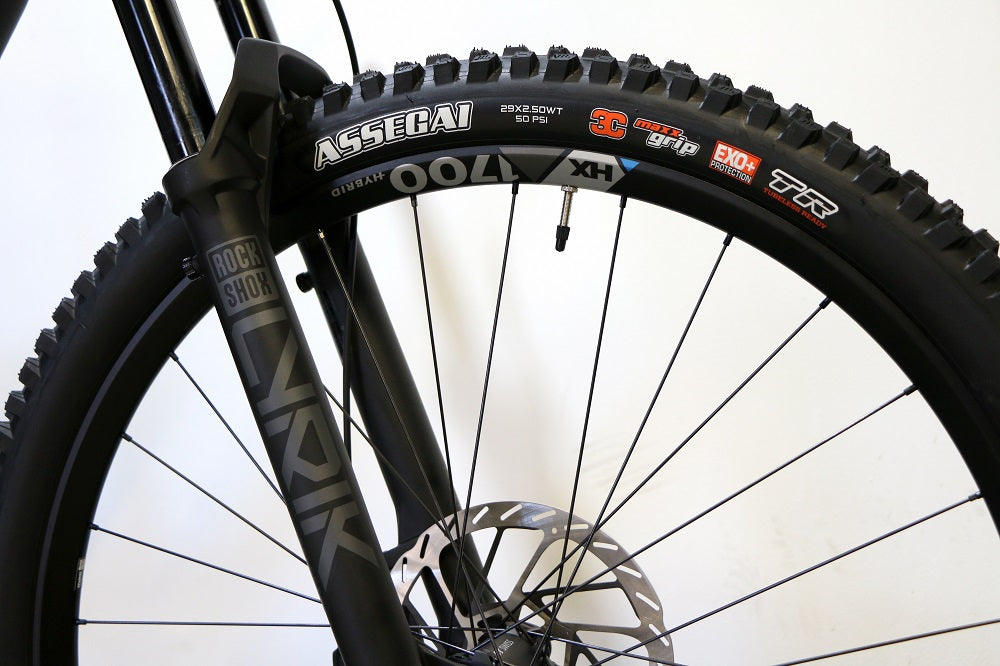

Maxxis Assegai
29x2.5 "
fold
TR EXO+ 3C MaxxGrip

TYRE REAR
Maxxis Minion DHR II
29x2.4 "
fold
TR EXO+ 3C MaxxTerra

AXLES
MERIDA EXPERT TR
including removeable lever, 6/4mm allen key

LIGHT FRONT
USB rechargable Chance Good CG-119PG-BLACK(1)

LIGHT REAR
USB rechargable Chance Good CG-404RG-BLK

FENDER
RF-001 mini fender

DRIVE UNIT
Bosch Performance Line SX

BATTERY
Bosch CompactTube
400Wh

DISPLAY
Bosch Kiox 400C

APPROX. WEIGHT
20.5 kg

MAX. WEIGHT
140 kg
