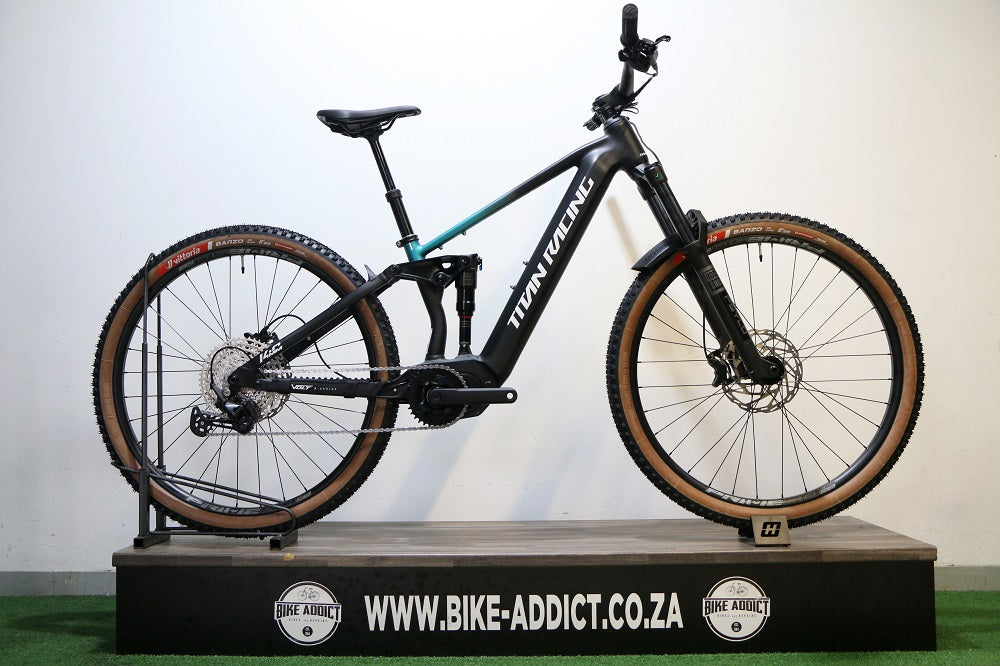

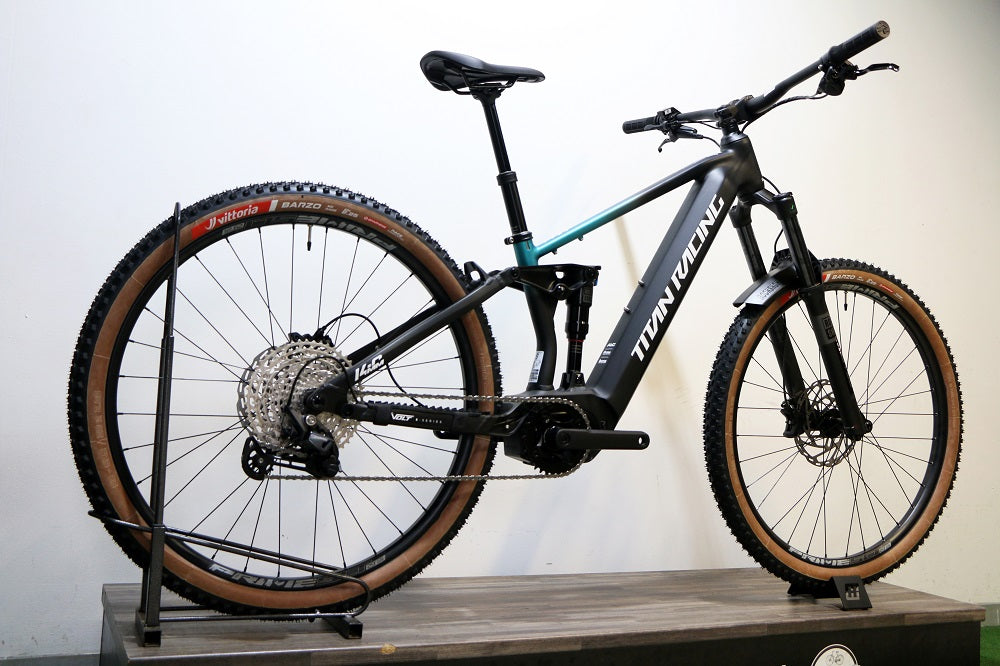

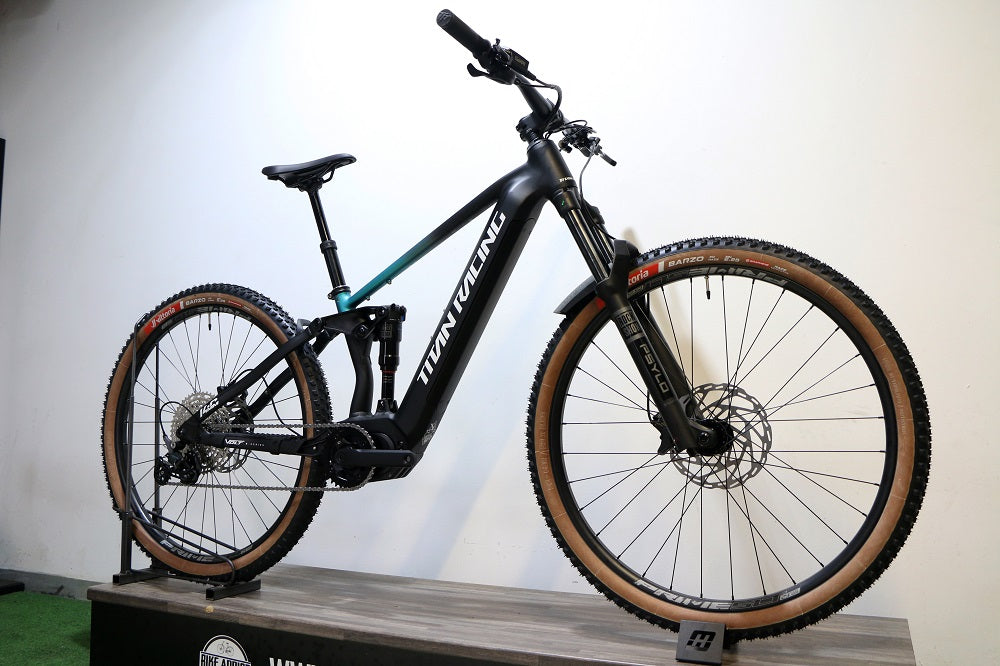

TITAN RACING Volt E-Two (2026)

FRAME
VOLT 4 BAR HORST LINK ALLOY FRAMESET WITH INTEGRATED BATTERY
HYDROFORMED TUBING / INTERNAL CABLE ROUTING / BOOST 148MM WITH THRU AXLE

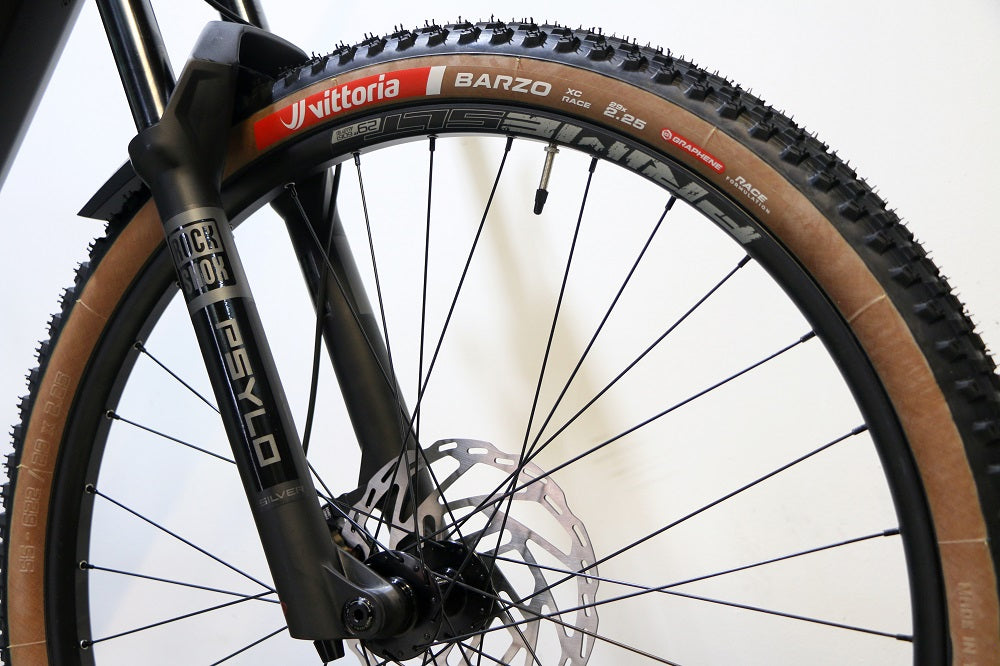

FORK
ROCKSHOX PSYLO SILVER RC DEBONAIR 29" 150MM
ROCKSHOX PSYLO SILVER RC / FS PSYL SLV RC 29N SB SA150 EBLK 44 A1 / FS PSYLO SILVER RC CROWN ADJUST – NOT FULL FENDER COMPAT – 29″ MXL STEALTH BOOST™ 15X110MM AXLE SOLO AIR 150MM 44 OFFSET TAPERED STEERER A1

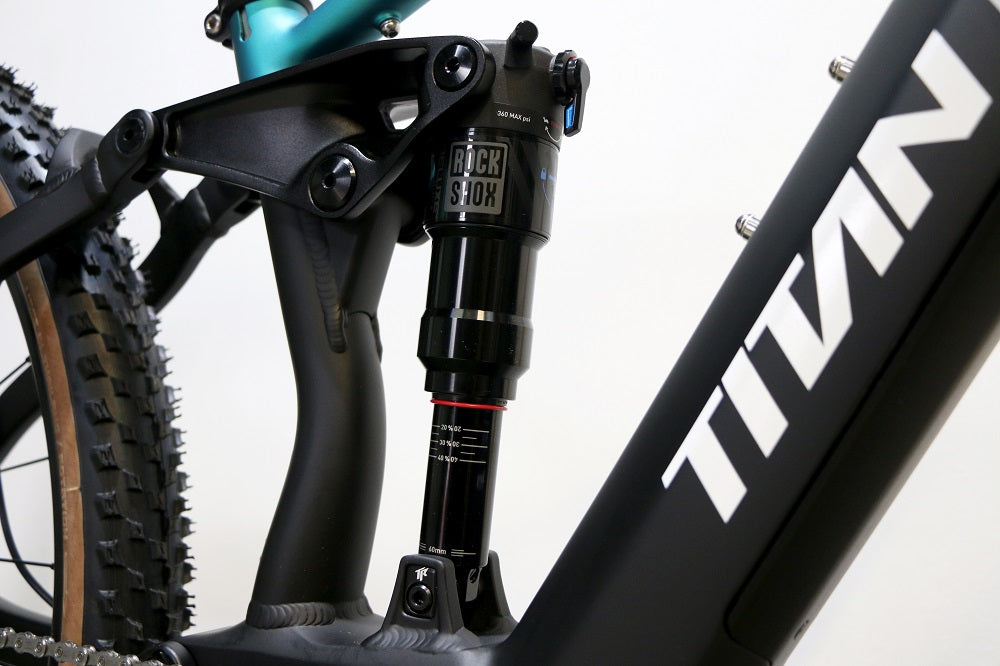

REAR SHOCK
ROCKSHOX DELUXE SELECT+ 140MM

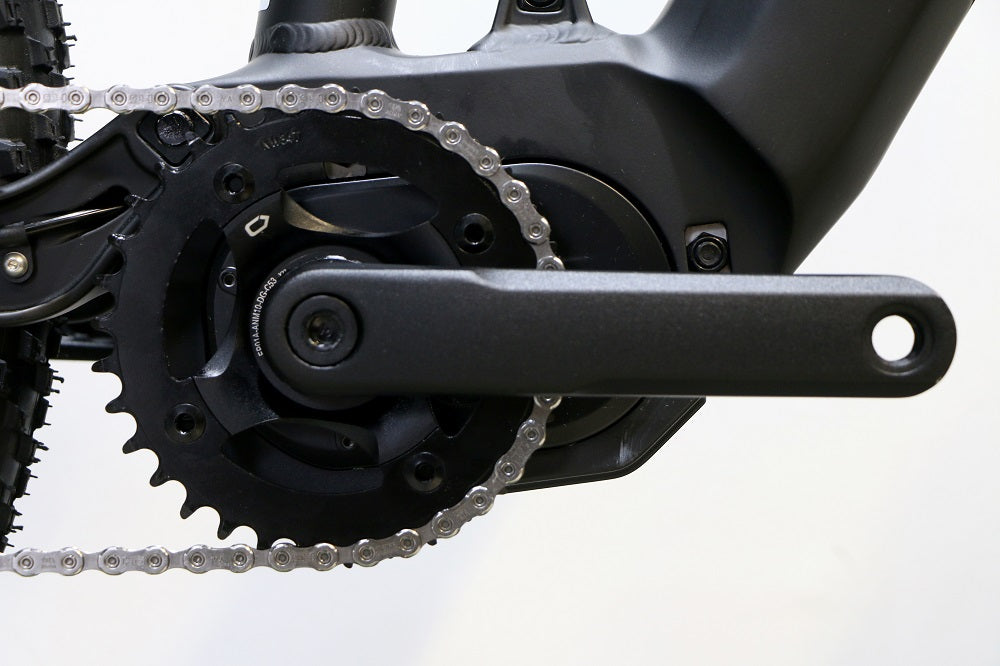

CHAINWHEEL
ANANDA EP01A 34T
ANANDA EP01A 34T / 12 SPEED / ALLOY CRANK / STEEL CHAINRING

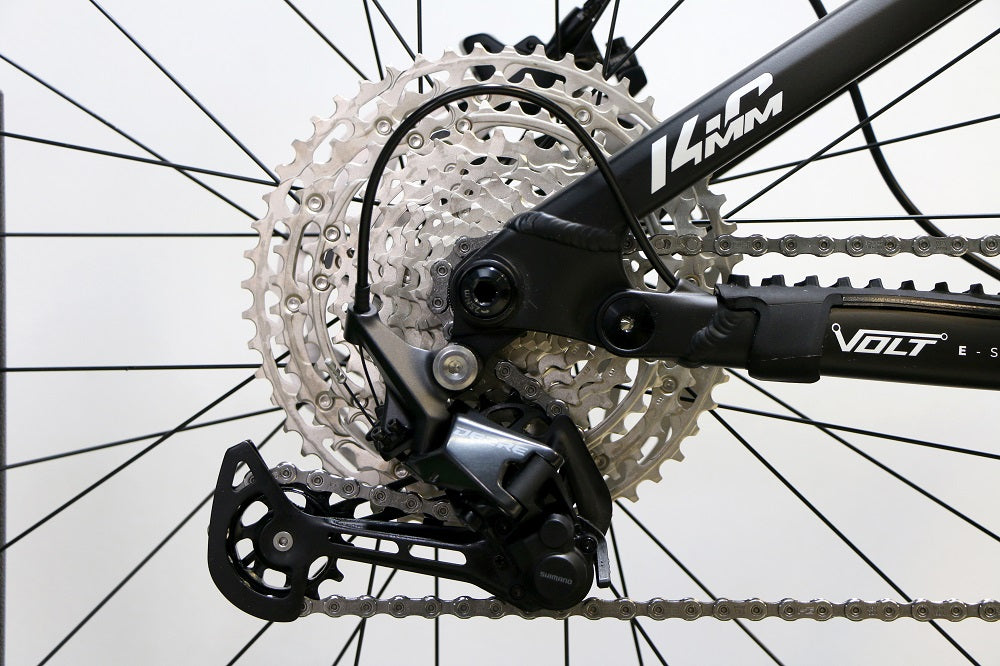

DERAILLEUR REAR
SHIMANO DEORE RD-M6100 12 SPEED

SHIFTER RIGHT
SHIMANO DEORE SL-M6100 12 SPEED

CHAIN
SHIMANO CN-M6100-12

FREEWHEEL
SHIMANO DEORE CS-M6100 10-51T

SPEED
12 SPEED

CRANK
ANANDA EC38-F5-ISIS-165 (L)+(R), ISIS SCREW

BATTERY
GREENWAY 630WH

CONTROLLER
ANANDA D18 TFT DISPLAY

DISPLAY
ANANDA D18 TFT DISPLAY

SENSOR
ANANDA

MOTOR
ANANDA TR M230 350W/100NM WITH 32KM/H ASSIST

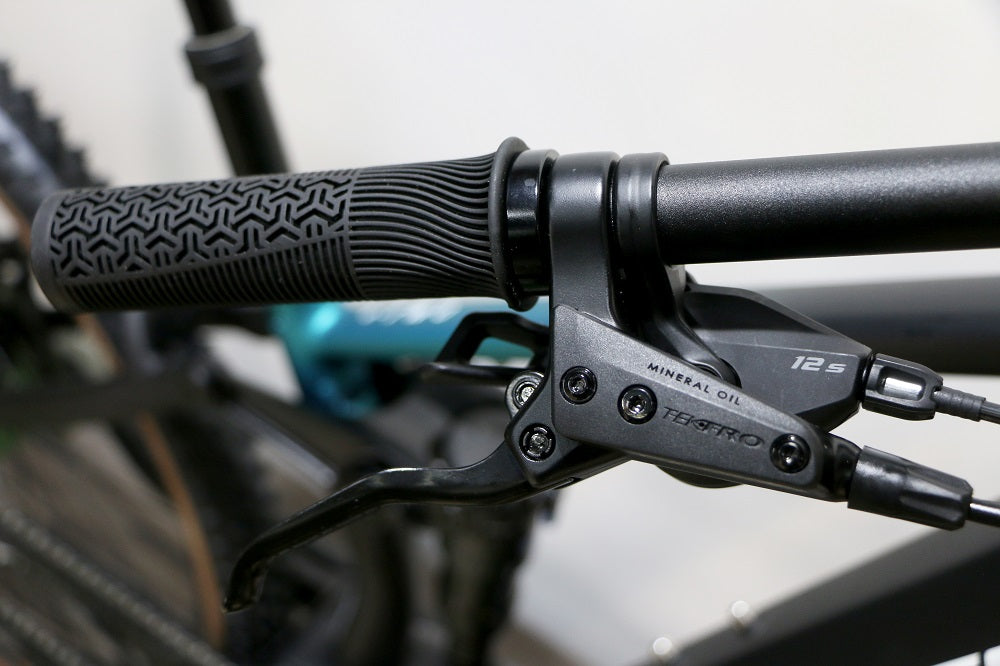

BRAKE LEVER
TEKTRO M530

BRAKE FRONT
TEKTRO M53O 4 PISTON WITH 203MM

BRAKE REAR
TEKTRO M530 2 PISTON WITH 180MM

RIMS
PRIME SL 27 TLR RIM 32H
TR PRIME SL 27 / 29er / MATT BLACK / DOUBLE WALL W/EYELETS / 32H / TL-READY / F/V

HUB FRONT
NOVATEC
NOVATEC D041SB-B15 M15x110x32H (6-BOLT), Boost

HUB REAR
SHIMANO DEORE
SHIMANO DEORE RD-M6100 12 SPEED, THRU, 14Gx32H-M12x148, Boost

SPOKES
STAINLESS BLACK 14Gx290mm / 14Gx288mm

TUBE
29″ F/V

TYRES
VITORIA AGARRO 29" × 2.4"
VITORIA AGARRO 29″ × 2.4″ TRAIL C2.0 TYRES

GRIP
TR SLIDELOCK GRIP

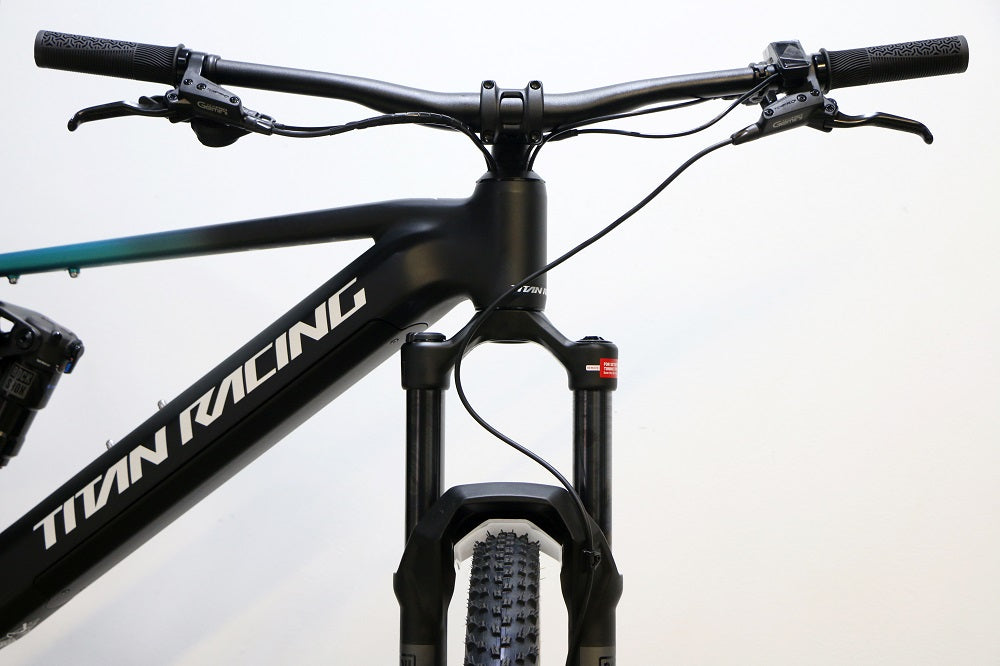

HANDLEBAR
TR PRO ALLOY RISER BAR 780MM
PROMAX HB-3188DB R15 780MM

HANDLEBAR STEM
TR PRO ALLOY STEM
DA-205 3D FORGED AL6061 / 31.8mm BAR BORE / 28.6mm CLAMP I.D / 6 DEGREE RISE / S = 60mm / M/L = 80mm / XL = 100mm

HEADSET
FSA NO.57 – HBS / NO.57- ACB

SPACER
10mm X 2 PCS

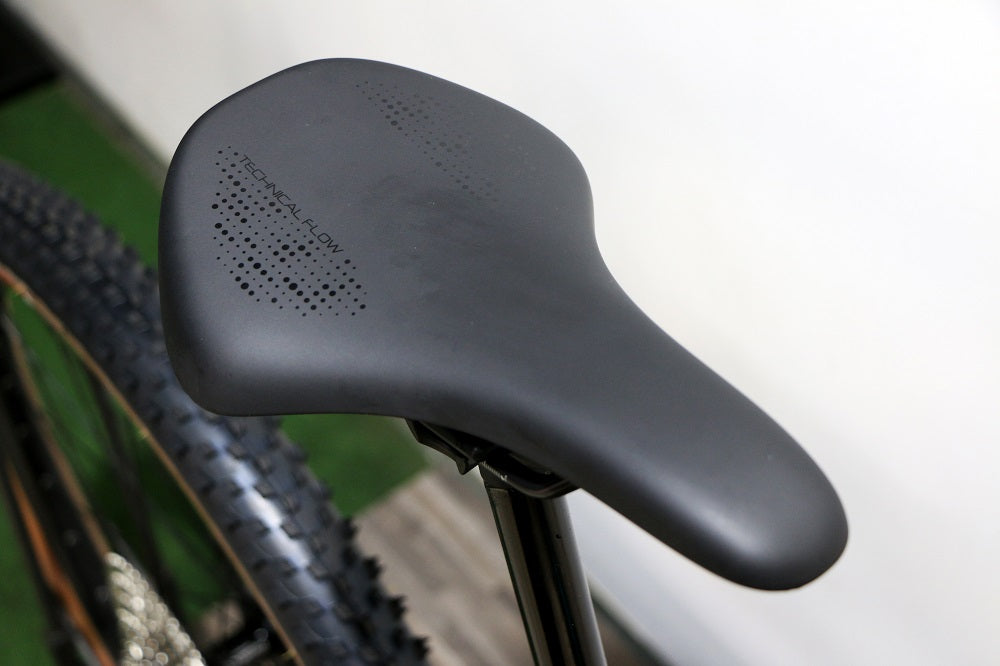

SADDLE
SR A084HR0018014

SEAT POST
X-FUSION MANIC WITH REMOTE 34.9
X-FUSION MANIC LC S = 125MM / M = 150mm / L+XL = 170MM WITH PLASTIC REMOTE 34.9mm

SEAT CLAMP
NEW MX-95RT ALLEN KEY TYPE

FEATURES

Utility Mount Under the Top Tube for additional storage
Clearance for 2.6” tires (Brand and model dependent)
SRAM UDH Hanger Standard
Tubeless Ready Rims and Tires across the range
Progressive Trail Geometry
Internal cable routing
630Wh removable battery
100Nm, 350W Motor

MOTOR SPECS

Weight: 2.8 Kg
Construction: Gear Drive
Shaft Standard: ISIS
Rated Power: 350 W
RPM: 120
Max Torque: 100 Nm
Max efficiency: ≥80%
Compact and lightweight
High precision torque sensor

To reduce production and delivery times the supplier sometimes have to make last-minute changes to product specifications. These updates may not always be reflected in the product descriptions or images on our website.
